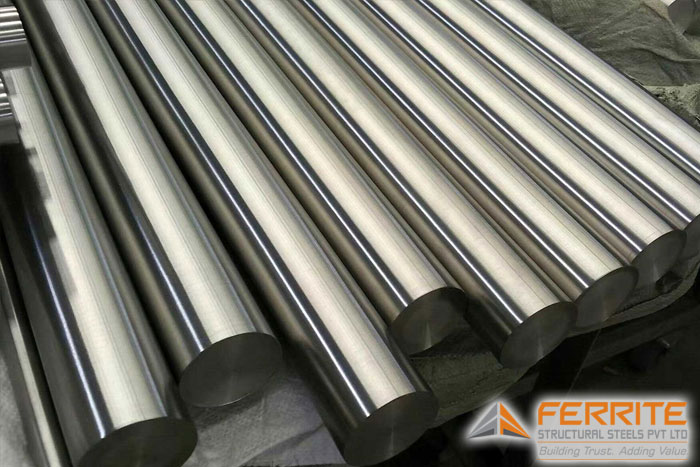

16MNCR5 Round Bar

Buy Top Quality 16MNCR5 Round Bar at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Round Bars.

16MNCR5 Round Bar

16MnCr5 round bars are low-alloy steel bars notable for their high strength and excellent wear resistance due to the presence of manganese and chromium. This grade is widely recognized for its ability to be case-hardened, providing a hard exterior while maintaining a robust and ductile core. The unique properties of 16MnCr5 make it highly suitable for applications requiring exceptional fatigue strength and resistance to abrasive wear. Popularly used in the automotive industry, these bars are ideal for manufacturing gears, pinions, and other high-stress components. Additionally, their adaptability and durability also make them a preferred choice in the manufacturing of heavy-duty machinery and tools across various industrial sectors.

Ferrite Structural Steels Pvt Ltd., a major manufacturer and supplier, offers 16MnCr5 round bars that consistently meet high standards of quality and performance. With a focus on leveraging cutting-edge technology and adhering to stringent quality controls, Ferrite Structural Steels ensures that each product delivered meets the complex demands of their clients. This commitment to excellence has established Ferrite Structural Steels Pvt Ltd. as a leader in the steel industry, renowned for its reliable products and dedicated customer service.

16MNCR5 Round Bar Specifications

Product Name 16MNCR5 Round Bar
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Finish Hot-rolled, galvanized, or as specified by customer

16MNCR5 Round Bar Size Chart

Size (mm) Average Weight (KG/MTR) Average Weight (KG/FT)
10 0.62 0.18
12 0.9 0.3
14 1.2 0.4
16 1.6 0.5
18 2 0.6
20 2.5 0.8
22 3 0.9
24 3.56 1.08
25 3.9 1.2
28 4.8 1.5
30 5.55 1.69
32 6.3 1.9
34 7.14 2.18
36 8 2.44
40 9.9 3
45 12.49 3.81
50 15.4 4.7
56 19.34 5.89
60 22 6.8



16MNCR5 Equivalent grades

EU USA Germany France England Italy Spain China Sweden Poland Czechia Russia Inter
EN – DIN,WNr AFNOR BS UNI UNE GB SS PN CSN GOST ISO
16MnCr5 SAE5115 16MnCr5 16MC5 527M17 16MnCr5 16MnCr5 15CrMn 2127 15HG 14220 18KHG 16MnCr5
        590M17     16MnCr
              20CrMnTi



16MNCR5 Chemical composition

Grade C Si Mn P S Cr
16MnCr5 0.14 – 0.19 max   0.4 1 – 1.30 max   0.025 max   0.035 0.8 – 1.10

Key Features and Benefits

  1. Alloy Composition: 16MnCr5 is a low-alloy steel that includes manganese and chromium, enhancing its wear resistance and strength.
  2. Case-Hardening: This steel is well-suited for case hardening, which provides a hard exterior for wear resistance while maintaining a tough and ductile interior.
  3. High Fatigue Resistance: The material offers excellent fatigue resistance, making it ideal for parts subjected to cyclic stress.
  4. Good Machinability: Prior to heat treatment, 16MnCr5 can be machined with relative ease, facilitating the manufacturing process.
  5. Weldability: It has moderate weldability; preheating and post-weld heat treatment are recommended to prevent cracking.
  6. Cost-Effectiveness: The steel is relatively inexpensive to produce and process compared to other alloy steels with similar properties.
  7. Versatility: Suitable for a wide range of applications, especially in the automotive and manufacturing industries where high strength and wear resistance are required.
  8. Improved Performance: Products manufactured with 16MnCr5 typically exhibit superior performance due to the material’s strength and fatigue resistance.
  9. Longevity: The durability and robustness of 16MnCr5 contribute to longer service life of parts and components, reducing the need for frequent replacement and maintenance.
  10. Customizable Properties: Through controlled heat treatment, the mechanical properties of 16MnCr5 can be tailored to specific application needs, offering flexibility in use.

Applications of 16MNCR5 Round Bar

Automotive Industry:

  • Gears and Clutches: Often used for making gears, clutch plates, and other transmission components because of its excellent strength and fatigue resistance.
  • Axles and Shafts: Suitable for axles, shafts, and other load-bearing components that require durability and resistance to wear.

Heavy Machinery:

  • Machine Parts: Used in the manufacturing of high-strength machine parts in heavy machinery, particularly where abrasion resistance is crucial.
  • Pinions: Commonly employed in making pinions due to its ability to withstand high stress and wear.

Industrial Equipment:

  • Pumps and Compressors: Ideal for components in pumps and compressors that require robust performance under cyclic stress.
  • Tooling: Used for specialized industrial tools and dies that benefit from its hardness and durability after heat treatment.

Manufacturing:

  • Joints and Couplings: 16MnCr5 is used in the production of couplings and joints in various industrial applications.
  • Bearings and Bushings: Suitable for bearings and bushings that are exposed to abrasive conditions and need to maintain high performance.

Engineering Applications:

  • High-Strength Bolts and Fasteners: Due to its tensile strength, it is also used to produce high-strength bolts and other fasteners.
  • Power Transmission Systems: Components in power transmission systems can benefit from the durability and wear resistance of 16MnCr5.

Why Choose Ferrite’s 16MNCR5 Round Bar?

Choosing Ferrite’s 16MNCR5 Round Bars means selecting a product known for its reliability, durability, and performance in challenging environments. At Ferrite Structural Steels Pvt Ltd, we specialize in producing high-quality 16MNCR5 Round Bars using meticulous manufacturing processes that adhere to strict quality standards. Each bar undergoes rigorous testing to ensure it meets our high standards, guaranteeing that our customers receive only the best products.

We are committed to providing not only top-quality steel but also exceptional customer service. Our team is dedicated to assisting you in finding the perfect steel solutions for your projects, ensuring that all your specifications and requirements are met efficiently. Contact us today to discuss your needs and request a quote. We are here to support your projects with our reliable and high-performing products.

Looking for 16MNCR5 Round Bar? Order Now
