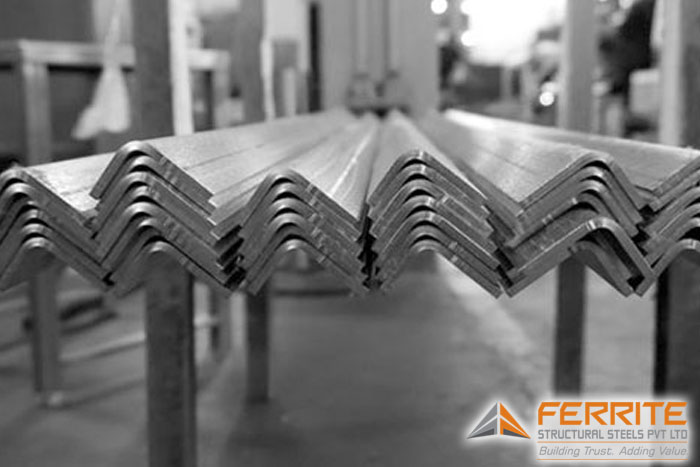

ASTM A36 Angle

Buy ASTM A36 Angles at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Angles.

ASTM A36 steel angle is a widely recognized mild carbon steel grade known for its strength and formability, making it an ideal choice for a broad range of structural applications. This grade offers a good balance of strength, rigidity, and weldability, which is essential for constructing reliable and durable structures. ASTM A36 is composed primarily of iron with carbon, manganese, phosphorus, sulfur, and silicon, creating a steel that is not only easy to work with but also capable of withstanding significant stress and impact. Its mechanical properties include a high tensile strength and a relatively high ductility, making it the preferred choice for architectural frameworks, manufacturing heavy equipment, and building infrastructural components. The versatility of ASTM A36 angles allows them to be used extensively in construction, manufacturing, and even in artistic applications where structural integrity is required without compromising on aesthetic value.

Ferrite Structural Steels Pvt. Ltd. is a premier manufacturer and supplier of high-quality steel products, including ASTM A36 angles. We are committed to upholding the highest standards of production and customer service, ensuring each product meets rigorous quality controls and specifications. Whether you are tackling a large construction project or require precise steel forms for manufacturing applications, Ferrite Structural Steels provides the resources, expertise, and support to help you achieve successful outcomes.

ASTM A36 Angle Specification

Product Name ASTM A36 Angles
Brand Ferrite Structural Steels Pvt Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Available Sizes 20 x 20 x 3 mm to 200 x 200 x 12 mm
Thickness From 3 mm to 20 mm
Length 6 m, 12 m, or customized lengths
Finish Painted, galvanized, or standard mill finish
Applications Building frameworks, infrastructure projects, supports in manufacturing, architectural elements



ASTM A36 Angle Size Chart

Size in mm Weight Per Meter in Kg. Size in mm Weight Per Meter in Kg.
20 x 20 x 3 0.9 75 x 75 x 10 11.00
25 x 25 x 3 1.1 90 x 90 x 8 10.8
25 x 25 x 5 1.8 90 x 90 x 10 13.4
30 x 30 x 3 1.4 100 x 100 x 6 9.2
35 x 35 x 5 2.6 100 x 100 x 8 12.1
40 x 40 x 3 1.8 100 x 100 x 10 14.9
40 x 40 x 5 3.0 100 x 100 x 12 17.7
40 x 40 x 6 3.5 110 x 110 x 8 13.4
50 x 50 x 5 3.8 110 x 110 x 10 16.5
50 x 50 x 6 4.5 130 x 130 x 10 19.7
65 x 65 x 6 5.8 130 x 130 x 12 23.4
65 x 65 x 8 7.7 150 x 150 x 10 22.8
65 x 65 x 10 9.4 150 x 150 x 12 27.2
75 x 75 x 6 6.8 200 x 200 x 12 36.6
75 x 75 x 8 8.9

ASTM A36 Equivalent Material

EN USA GB BS JIS ISO IS
Fe360D2, S235J2G4 A36 Q235D 40EE SM 400 A Fe 360B IS 226



ASTM A36 CHEMICAL COMPOSITION

Grade C Si Mn P S
ASTM A36 0.25 max. 0.4 max. 0.8-1.2 0.035 max. 0.035 max.



ASTM A36 ANGLE MECHANICAL PROPERTIES

Tensile strength, kis [MPa] Yield strength, min, kis [MPa] Elongation in 8 in. [200 mm], min, % Elongation in 2 in. [50 mm], min, %
58-80 [400-550] 36 [250] 20 23



Important Features and Benefits

  1. High Structural Integrity:
    • ASTM A36 steel provides a solid foundation for buildings and other structures due to its high yield strength and durability, ensuring long-lasting performance under various stress conditions.
  2. Excellent Weldability and Fabrication:
    • Known for its excellent weldability, ASTM A36 angles can be easily joined with other steel shapes and plates to construct complex structures. Additionally, it’s highly amenable to cutting, forming, and machining, making it versatile for custom fabrication needs.
  3. Cost-Effective:
    • Due to its widespread availability and ease of processing, ASTM A36 steel is one of the most cost-effective structural steels on the market. This makes it an attractive option for many budget-conscious projects without sacrificing quality.
  4. Good Ductility:
    • The steel’s good ductility allows it to deform under tensile stress, significantly reducing the risk of breakage and making it safer for use in areas prone to seismic activity.
  5. Compatibility with Various Finishes:
    • ASTM A36 steel is compatible with a variety of finishes, including painting and galvanizing, which enhance its resistance to corrosion and extend its service life even in harsh environments.
  6. Sustainability:
    • Steel is one of the most recycled materials in the world, and ASTM A36 is no exception. Its recyclability adds an element of environmental responsibility to its use in construction and manufacturing.

These features and benefits make ASTM A36 angles a staple in the construction and manufacturing industries, trusted for their quality and versatility in a variety of projects.

Applications of ASTM A36 Angles

  1. Construction Industry:
    • Building Frameworks: Used extensively in the construction of commercial, industrial, and residential buildings for frames and supports due to their strength and flexibility.
    • Support Beams and Columns: Ideal for load-bearing beams, columns, and other structural components in both large-scale and smaller projects.
  2. Infrastructure Projects:
    • Bridge Construction: Commonly used in bridge construction, especially for cross beams and support brackets, where robustness and durability are crucial.
    • Public Infrastructure: Used in the construction of public facilities such as schools, hospitals, and government buildings for structural supports and frameworks.
  3. Industrial and Manufacturing Facilities:
    • Equipment Frames: Forms the structural basis for heavy machinery and equipment, providing stability and support in various manufacturing processes.
    • Storage Systems: Used to construct shelving and storage racks in warehouses, ensuring strong and durable support for heavy loads.
  4. Architectural Applications:
    • Architectural Trim and Aesthetic Elements: Often used in architectural designs for both functional supports and aesthetic elements due to its excellent formability and finish compatibility.
    • Fencing and Frames: Suitable for gates, fencing, and frames in architectural projects, offering both structural strength and visual appeal.
  5. Automotive and Transportation:
    • Vehicle Frames and Structures: Utilized in the automotive industry for frame components in trucks, trailers, and other heavy vehicles.
    • Support Structures in Transportation Systems: Supports and brackets in transportation infrastructure, such as railway systems and bus stations.
  6. Energy Sector:
    • Solar Panel Frames: Used to create durable frames for solar panels, contributing to the infrastructure of renewable energy solutions.
    • Support Structures for Equipment: Forms the base and support structures for equipment in power generation plants.

ASTM A36 angles’ versatility and durability make them suitable for a wide array of applications, proving essential in various sectors where structural integrity is a priority.

FAQs — ASTM A36 Steel Angle

ASTM A36 Steel Angle: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What is an ASTM A36 angle?
It is a carbon structural steel angle ordered to ASTM A36 material requirements and the applicable dimensional standard. Buyers should state the exact angle size, length, finish, certificate and any supplementary project requirements.
02
Which sizes of ASTM A36 steel angle are available?
The live product range indicates 20 x 20 x 3 mm to 200 x 200 x 12 mm, with 3 mm to 20 mm. Availability can vary by grade, mill, finish and quantity, so send the exact leg dimensions, thickness and required length for a stock confirmation.
03
What lengths can I order for ASTM A36 steel angles?
Ferrite can review enquiries for 6 m, 12 m or requirement-based lengths. State whether you need full-length material or cut lengths, the length tolerance, quantity per length and whether end preparation is required.
04
How do I request the latest ASTM A36 steel angle price per kg or per tonne?
Send the size, thickness, grade, length, finish, total quantity, delivery city and documentation requirement. Steel prices and freight change with market conditions, so a dated quotation is more reliable than a static online ASTM A36 steel angle price list.
05
What factors affect the ASTM A36 steel angle price?
The main price factors are section size and unit weight, grade, mill or make preference, length, finish or galvanizing, order quantity, cutting or fabrication, inspection documents, packing, freight and applicable taxes.
06
How is the weight of ASTM A36 steel angle calculated?
Use the theoretical mass per metre for the exact standard section and multiply it by the ordered length and quantity. For purchasing and dispatch, confirm whether billing is based on theoretical or actual weighment and obtain the applicable tolerance.
07
Can Ferrite provide a ASTM A36 steel angle size and weight chart?
Yes. The product page lists common sizes and weights. For tendering or fabrication, share the precise section designation so Ferrite can confirm the relevant unit weight; the approved standard or mill data should govern final calculations.
08
Which grade should I select for ASTM A36 steel angles?
The correct choice depends on the design code, required strength, service temperature, weldability, corrosion exposure and project approval. For this page, the relevant requirement is ASTM A36 with the required dimensional standard and test documentation. Do not substitute a grade only because it appears equivalent.
09
Is ASTM A36 angle equivalent to IS 2062 E250 or S275JR?
The grades are often compared in international sourcing, but equivalence is not automatic. Check chemistry, mechanical requirements, thickness effects, impact testing, dimensional standard and client approval before accepting a substitute.
10
Are mill test certificates available with ASTM A36 steel angles?
Request the documentation at enquiry stage. Depending on the source and order, the supply can be reviewed for a mill test certificate or test certificate showing the specified grade and relevant chemical and mechanical results.
11
What details should my ASTM A36 steel angle purchase enquiry include?
Include section size, leg dimensions, thickness, grade and standard, length, quantity, finish, mill preference if any, MTC or inspection need, cutting or hole requirement, delivery location, required date and GST or export documentation details.
12
Can I order cut-to-length ASTM A36 steel angles?
Cut-to-length requirements can be reviewed against size, quantity and tolerance. Mention every finished length, number of pieces, allowable tolerance, whether mitre or square cuts are needed, and whether cut edges require coating repair or deburring.
13
Can ASTM A36 steel angles be supplied drilled, punched, welded or fabricated?
Value-added requirements may be reviewed for ASTM-based projects and export enquiries. Provide approved drawings, hole diameter and pitch, tolerances, welding specification, surface treatment, inspection points and quantity before pricing.
14
What finishes are available for ASTM A36 steel angles?
Depending on the item and project, enquiries may cover standard mill finish, painted finish or galvanized finish. Specify surface preparation, paint system or galvanizing standard and coating requirement instead of writing only “finished angle”.
15
Are ASTM A36 steel angles suitable for outdoor or coastal use?
Bare mild steel needs a protection system appropriate to the exposure. Galvanizing or a specified paint system may improve corrosion resistance, but coating choice and maintenance interval should be set by the project engineer for the actual environment.
16
What is the minimum order quantity for ASTM A36 steel angles?
The live Ferrite page indicates a 1-ton minimum order quantity. Ask for confirmation against the exact size, grade, finish and delivery location because stock position and commercial minimums can differ by item.
17
Does Ferrite supply ASTM A36 steel angles in Mumbai, Navi Mumbai and Maharashtra?
Ferrite handles steel enquiries from its Mumbai sales office and Kalamboli, Navi Mumbai location. Share the unloading postcode, quantity, length and vehicle-access restrictions so freight and delivery feasibility can be quoted correctly.
18
Can Ferrite supply ASTM A36 steel angles across India or for export?
India and export enquiries can be reviewed based on quantity, destination and product availability. For exports, state the destination port, Incoterm, packing, marking, inspection, origin and documentation requirements with the material specification.
19
How should I compare quotations from different ASTM A36 steel angle suppliers?
Compare the same grade, section, unit weight basis, length, make, finish, tolerance, certificate, quantity, freight, taxes and delivery schedule. A lower rate is not comparable if the section weight, grade, coating or documentation differs.
20
How can I get a fast quotation for ASTM A36 steel angles?
Send a BOQ or clear enquiry containing size, thickness, grade, length, piece count or tonnage, finish, documents, delivery location and required date. Adding drawings for processed items reduces clarification time and helps Ferrite return an accurate commercial offer.

Why Choose Ferrite’s ASTM A36 Angles?

Choosing Ferrite’s ASTM A36 angles means opting for a commitment to high-quality and compliance with stringent industry standards. Our ASTM A36 angles are manufactured with precision and care, tailored to withstand various structural demands while offering flexibility and durability. We understand that each project has unique requirements, which is why we provide personalized support to each client.

If you’re looking for high-quality ASTM A36 angles for your next project, Ferrite Structural Steels Pvt. Ltd. is here to help. Our team of experts is ready to provide you with the support and guidance so you can fill out our Inquiry Form directly on our website for easy access and prompt responses..
