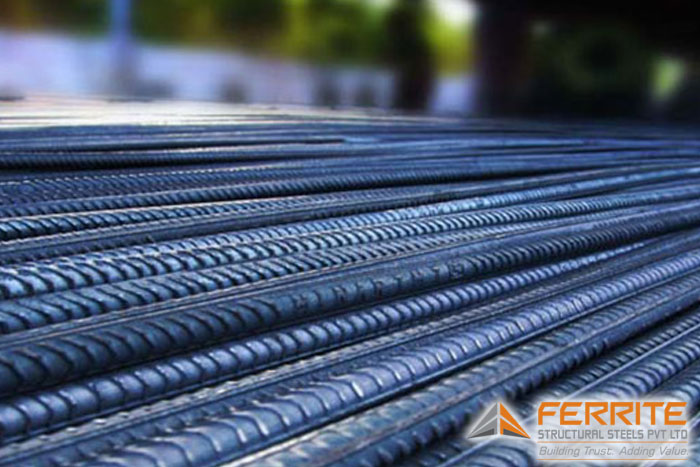

FE 500D TMT Bars

Buy Premium FE 500D TMT Bars at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Stainless-Steel Round bars.

FE 500D TMT Bars

FE 500D TMT bars are an advanced grade of Thermo-Mechanically Treated bars renowned for their exceptional strength and ductility, making them a preferred choice in the construction industry. The ‘500D’ signifies a minimum yield strength of 500D megapascals, while the ‘D’ stands for ductility, indicating these bars are designed to withstand higher stress and strain rates. This combination not only enhances the safety and longevity of structures but also increases their resistance to seismic activities, making Panther TMT bars ideal for regions prone to earthquakes.

Their widespread popularity extends across various industries, including large-scale infrastructure projects like highways, bridges, and high-rise buildings, as well as in commercial and residential constructions that require robust and resilient materials to ensure safety and durability.

As a leading manufacturer and supplier, Ferrite Structural Steels Pvt Ltd offers top-quality FE 500D TMT bars that are meticulously produced to meet global quality standards. Ferrite Structural Steels is committed to innovation and excellence, ensuring each bar features the hallmark strength, ductility, and reliability required for modern construction demands. Builders and developers seeking materials that offer both performance and peace of mind frequently turn to Ferrite Structural Steels for their construction needs.

FE 500D TMT Bar Specification

Product Name FE 500D TMT Bars
Brand Ferrite Structural Steels Pvt Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Finish Painted, galvanized, or standard mill finish
Applications Building frameworks, infrastructure projects, supports in manufacturing, architectural elements

FE 500D TMT Bar Size Chart

Size (MM) BIS Standard Kg/Mtr Weight Range (Kg/Mtr)
  Min Weight (Kg/Mtr) Avg Weight (Kg/Mtr) Max Weight (Kg/Mtr)
8 0.367 0.395 0.423 0.375 to 0.400
10 0.574 0.617 0.66 0.580 to 0.620
12 0.844 0.888 0.932 0.850 to 0.910
16 1.501 1.58 1.659 1.510 to 1.600
20 2.396 2.47 2.544 2.400 to 2.510
25 3.734 3.856 3.964 3.750 to 3.910
28 4.685 4.83 4.975 4.700 to 4.900
32 6.121 6.31 6.499 6.184 to 6.436



FE 500D Chemical Composition

Element Carbon Phosphorus Sulfur Sulfur and Phosphorus
Percentage 0.25% 0.04% 0.04% 0.08%



FE 500D Mechanical Properties

Property Tensile Strength Elongation Norm Carbon Sulphur and Phosphorus Yield Strength
Specification 565 MPa 16% 0.25% max Lower maximum percentage Minimum 500D N/mm²

Major Features and Benefits

  1. High Yield Strength: FE 500D TMT bars have a minimum yield strength of 500D megapascals (MPa), making them robust and capable of supporting substantial structural loads, which is crucial for high-rise and heavy infrastructure projects.
  2. Superior Ductility: These bars are especially known for their enhanced ductility, which allows them to deform under high stress without breaking. This property is particularly beneficial in seismic zones, as it helps structures absorb and dissipate earthquake energies effectively.
  3. Corrosion Resistance: The manufacturing process of FE 500D TMT bars includes elements that enhance their resistance to rust and corrosion, making them suitable for adverse environmental conditions, including coastal and industrial areas.
  4. Low Carbon Content: These bars have a lower carbon content, which improves their weldability and reduces the risk of cracking during welding, a critical factor in ensuring the safety and durability of welded joints in construction.
  5. Longevity: Buildings constructed with FE 500D TMT bars benefit from their longevity, as the bars help prevent early wear and tear and minimize maintenance costs over the building’s lifespan.
  6. Cost-Efficiency: Although FE 500D bars might have a higher initial cost compared to lower grades, their durability and reduced maintenance requirements provide a more cost-effective solution over the long term.
  7. Environmental Sustainability: The production process of FE 500D bars is more energy-efficient and produces fewer carbon emissions than traditional steel-making processes, contributing to environmental sustainability.

Applications of FE 500D TMT Bars

  1. High-Rise Buildings: Due to their high yield strength and ductility, FE 500D TMT bars are ideal for use in the construction of skyscrapers and high-rise residential and commercial buildings. They provide the necessary support to withstand the heavy loads and stresses associated with such structures.
  2. Industrial Facilities: FE 500D TMT bars are also suitable for constructing industrial structures such as factories, warehouses, and plants where robustness and the ability to withstand dynamic loads are crucial.
  3. Earthquake-Resistant Structures: Their enhanced ductility and strength make FE 500D TMT bars particularly useful in seismic zones. They are engineered to absorb and dissipate seismic energy, reducing the risk of damage during earthquakes.
  4. Marine and Coastal Construction: The corrosion resistance feature of FE 500D TMT bars makes them a good choice for building marine and coastal structures, including harbors, docks, and sea walls, which are exposed to corrosive saltwater.
  5. Reinforcement in Concrete Roads: FE 500D TMT bars are used in the reinforcement of concrete pavements and roads, providing the necessary durability and load-bearing capacity.
  6. Pre-stressed Concrete Structures: The strength characteristics of FE 500D TMT bars also make them suitable for use in pre-stressed and post-tensioned concrete applications, such as in the construction of parking garages and sports stadiums.
FAQs — Fe 500D TMT Bar

Fe 500D TMT Bar: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What is Fe 500D TMT Bar?
Fe 500D TMT Bar are high-strength, high-ductility TMT reinforcement ordered as Fe 500D. Procurement must state the complete grade, governing standard, nominal diameter, length, quantity and intended reinforced-concrete use. The commercial name alone does not establish rib geometry, ductility, bend performance, weldability or corrosion-protection requirements.
02
Where are Fe 500D TMT Bar commonly used?
Common uses include high-rise buildings, seismic detailing, infrastructure, industrial construction and reinforced-concrete work. The bar grade, diameter, spacing, development length, laps, anchorage and concrete cover must follow the approved structural drawings, bar-bending schedule, BOQ, project standard and responsible engineer’s design.
03
Which diameters are listed for Fe 500D TMT Bar?
The live TMT size chart lists 8, 10, 12, 16, 20, 25, 28 and 32 mm. These chart entries do not confirm current stock. State the diameter and quantity for every BOQ line, together with grade, standard, length, make preference and any project-specific rib, ductility or coating requirement.
04
What standard applies to Fe 500D TMT Bar?
Indian TMT reinforcement is commonly specified to IS 1786, but buyers must quote the exact standard edition and complete grade required by the project. Dimensional mass, chemistry, tensile, elongation, bend, rebend and other acceptance requirements should be read from that governing purchase specification.
05
What standard lengths are available for Fe 500D TMT Bar?
The reviewed page does not publish a fixed standard-length range. Availability should be confirmed for the requested diameter, grade and tonnage. State straight length, permissible length tolerance, bundle requirements and whether cut-and-bend schedules or piece identification must be reviewed separately.
06
How is Fe 500D TMT Bar weight per metre calculated?
Theoretical TMT bar weight in kg/m is commonly estimated as nominal diameter squared divided by 162. This is a planning formula, not the final acceptance rule. Actual mass can vary within the applicable standard, so confirm whether quotation and invoicing use theoretical or actual weighment.
07
Can I get a Fe 500D TMT Bar weight chart?
Yes. The live page publishes BIS standard kg/m values and weight ranges for the listed diameters. Use the chart for quantity planning, then apply the approved bar-bending schedule and wastage policy. Confirm the contractual mass tolerance and weighment basis before comparing supplier offers.
08
What is the Fe 500D TMT Bar price per kg?
The price per kg requires a dated quotation and varies with grade, diameter mix, tonnage, make, length, coating or corrosion-resistant requirement, testing, freight and taxes. Send the complete BOQ and delivery location so suppliers quote the same technical and commercial scope.
09
How is the Fe 500D TMT Bar price per tonne determined?
Price per tonne depends on exact grade and standard, diameter-wise quantities, total tonnage, mill or make preference, MTC, inspection, coating scope, packing and destination. Confirm whether freight, unloading, testing and GST are included and check the quotation’s validity and weighment basis.
10
What is the MOQ for Fe 500D TMT Bar?
The live page states a minimum order quantity of 1 tonne. Actual acceptance remains subject to diameter, grade, coating or CRS requirement and availability. For mixed-diameter orders, provide the weight or piece count of each line instead of only the combined project tonnage.
11
Is Fe 500D TMT Bar available from ready stock?
Stock must be confirmed for the exact grade, standard, diameter, length, make and quantity. A product page or size chart does not establish immediate availability. State MTC, inspection, coating, bundling and required delivery-date conditions at the enquiry stage.
12
Can an MTC be supplied with Fe 500D TMT Bar?
Request the mill test certificate at enquiry stage and specify the required document type. It should identify the heat or batch, complete grade, standard and reported chemistry and mechanical-test results. Bar markings, bundle tags and traceability expectations should be agreed before ordering.
13
What does the “D” mean in Fe 500D TMT Bar?
The D suffix identifies enhanced ductility requirements under the applicable reinforcement standard. It is part of the grade and should appear on the purchase order, bar identification and MTC. The d suffix denotes enhanced ductility requirements and is part of the grade designation; never drop the suffix during substitution.
14
Can Fe 500D TMT Bar be cut, bent, rebent or welded?
Cutting and bending must follow the approved bar-bending schedule, minimum bend diameter and site procedure. Re-bending or welding should not be assumed acceptable for every grade or diameter. Obtain the structural engineer’s approval and follow the governing code, material standard and qualified welding procedure.
15
Can another TMT grade replace Fe 500D TMT Bar?
No grade substitution should be made from yield strength alone. Strength, ductility class, elongation, tensile-to-yield ratio, chemistry, weldability, bend performance, detailing and design assumptions must be compared. Written approval from the structural engineer and end user is required before supply.
16
Can I buy Fe 500D TMT Bar from a supplier in Mumbai or Navi Mumbai?
Ferrite lists its head office in Mumbai and a facility address at Kalamboli, Navi Mumbai. Provide the delivery postcode, diameter-wise tonnage, longest length, vehicle and unloading constraints and required date so supply logistics can be reviewed for Mumbai, Navi Mumbai and Maharashtra.
17
Can Fe 500D TMT Bar be supplied across India?
The website states nationwide supply. India-wide enquiries should include consignee postcode, grade, diameter-wise tonnage, bar length, bundling, MTC and delivery schedule. Freight and unloading can materially affect landed price, so compare offers on the same ex-works or delivered basis.
18
Does Ferrite handle export enquiries for Fe 500D TMT Bar?
Export requirements can be reviewed against the requested specification and quantity. Provide destination port and country, Incoterm, grade, standard, diameter mix, length, tonnage, coating, packing, MTC and inspection requirements. Shipping programme and documentation must be confirmed for the specific order.
19
How should quotations from Fe 500D TMT Bar suppliers be compared?
Compare complete grade and standard, diameter-wise quantity, mass tolerance, length, make or mill, MTC, inspection, coating scope, packing, freight, taxes and delivery basis. A lower rate is not comparable if the offered ductility class, corrosion protection, certification or weighment method differs.
20
What details are needed for a fast Fe 500D TMT Bar quotation?
Send product name, complete grade and standard, diameter-wise quantity, straight length or bar-bending schedule and total tonnage. Add make preference, MTC, inspection, coating requirement, delivery postcode or destination port, Incoterm, unloading constraints and required delivery date.

Why Choose Ferrite’s FE 500D TMT Bars?

Choosing Ferrite Structural Steels Pvt Ltd for your FE 500D TMT bars means opting for a product that embodies reliability, durability, and innovation. Ferrite’s FE 500D TMT bars are manufactured using advanced thermo-mechanical treatment processes, ensuring top-grade quality with enhanced strength and flexibility. These bars offer superior corrosion resistance and exceptional bond strength with concrete, making them ideal for any construction project, from residential to large-scale industrial applications. They are specifically engineered to provide structural integrity and longevity to your constructions, ensuring safety and cost-effectiveness. Ferrite Structural Steels is committed to upholding the highest standards of customer service and technical support. Opt for Ferrite’s FE 500D TMT bars to guarantee the success of your construction projects. For more details or to request a quote, please contact us today. Our team is ready to assist you with tailored solutions that meet your specific needs.
