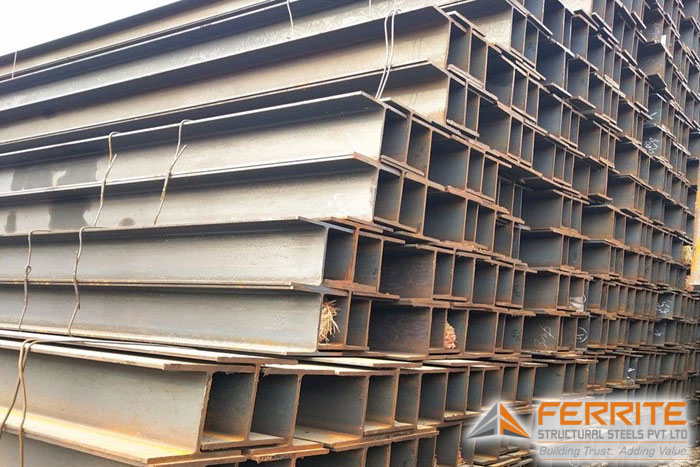

HE Beam

Buy Premium Quality HE Beams at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Universal Beams.

HE Beam

HE beams, commonly referred to as High-Efficiency beams, are a family of steel beams that encompass various profiles including HEA, HEB, and HEM beams. Known for their I-shaped cross-section, HE beams are designed to provide exceptional structural support with a high strength-to-weight ratio, making them ideal for a wide range of construction and engineering applications. The balanced design of these beams allows for significant load-bearing capacity, which is essential for large-scale structures like commercial buildings, bridges, and industrial facilities.

The unique features of HE beams include their thicker web and wider flanges compared to traditional I-beams, which enhance their structural capabilities and resistance to bending and torsion. This robust construction not only provides superior stability and support but also contributes to the aesthetic appeal of the beams when used in architectural designs.

At Ferrite Structural Steels Pvt Ltd, we take pride in being a major manufacturer and supplier of HE beams, recognized for our commitment to quality and innovation. We produce a comprehensive range of HE beams, crafted using advanced manufacturing technologies and stringent quality controls to meet the exacting standards of today’s construction industry. Our expertise and dedication to customer satisfaction ensure that we provide not just products but tailored solutions that address the specific needs of each project. Whether you are constructing a new facility or renovating an existing structure, Ferrite Structural Steels provides the reliable, high-performance HE beams you need to ensure your project’s success.

HE Beam Specifications

Product Name HE Beam
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Stainless Steel and Mild Steel
Finish Hot-rolled, galvanized, or as specified by customer

HE Beams Size Chart

Type Size Depth (mm) Width (mm) Web Thickness (mm) Flange Thickness (mm) Weight (kg/m)
HEA HEA 100 96 100 5 8 16.7
HEA HEA 200 190 200 6.5 10 42.3
HEA HEA 300 290 300 8.5 14 88.3
HEB HEB 100 100 100 6 10 20.4
HEB HEB 200 200 200 9 15 61.3
HEB HEB 300 300 300 11 19 117.6
HEM HEM 100 120 106 12 20 41.8
HEM HEM 200 220 210 18 30 106
HEM HEM 300 320 310 21 40 248

Key Features and Benefits

  1. Optimized Geometry: HE beams are designed with a wide flange and thick web, which contribute to their high strength and stability. This optimized geometry helps in resisting bending and torsion more effectively.
  2. Uniform Thickness: Across the flanges and the web, HE beams typically maintain uniform thickness, facilitating easier connection and robust performance.
  3. Superior Load-bearing Capacity: Thanks to their structural design, HE beams can support larger loads over greater spans compared to traditional I-beams. This makes them suitable for wide-ranging applications from large commercial complexes to industrial structures.
  4. Durability: Constructed from high-strength steel, HE beams offer outstanding durability and longevity, making them a wise investment for any construction project.
  5. Cost-efficiency: While HE beams might initially seem more expensive due to their size and material usage, they offer long-term savings due to their durability and the reduced need for replacements.
  6. Aesthetic Flexibility: With their sleek and modern appearance, HE beams are often used in architectural applications where beams are left exposed as a design feature, enhancing the visual appeal of buildings.
  7. Sustainability: Steel beams, including HE beams, are completely recyclable, which reduces the environmental impact of construction projects. Using steel beams also means less waste on-site during construction.
  8. Ease of Installation: The shape and design of HE beams allow for easier assembly and installation. Their uniform thickness and wide flanges provide greater surface area for bolting and other connections, simplifying the construction process.
  9. Fire Resistance: Steel inherently has good resistance to fire, and the configuration of HE beams can be optimized with protective coatings to enhance this property, providing an additional layer of safety.

Applications of HE Beams

  1. Commercial Buildings: HE beams are frequently used in the construction of commercial structures such as office buildings, shopping centers, and exhibition halls. Their ability to support large spans and heavy loads makes them ideal for creating spacious, open interiors.
  2. Industrial Facilities: In industrial contexts, HE beams provide essential structural support for warehouses, factories, and heavy machinery. Their robust nature ensures the stability and safety of structures that must withstand the rigorous demands of industrial operations.
  3. Infrastructure Projects: HE beams are critical in infrastructure development, including bridges, highways, and railway overpasses. Their strength and durability make them suitable for long-span structures that are exposed to significant environmental stresses.
  4. Public Facilities: Large public structures such as schools, hospitals, and libraries often utilize HE beams to support large roofs and other structural elements that require both strength and aesthetic appeal.
  5. Stadiums and Arenas: For stadiums and arenas, HE beams are chosen for their ability to cover vast spaces without supporting columns, providing unobstructed views for spectators and large, clear areas for events.
  6. Earthquake Resilience: In seismic zones, HE beams are employed to enhance the earthquake resilience of structures. Their ability to absorb and distribute seismic forces helps minimize damage during earthquakes.
  7. Specialty Structures: HE beams are also used in specialty applications such as cranes and other lifting devices within the construction and shipping industries, where high strength and reliability are paramount.
  8. Renovations and Retrofitting: HE beams are often selected for renovation projects to strengthen existing structures or to replace older materials that no longer comply with safety standards. Their versatility and strength make them excellent for retrofitting efforts.

Why Choose Ferrite’s HE Beams?

Choose Ferrite Structural Steels for your HE Beams to leverage top-quality materials designed to meet the rigorous demands of modern construction. At Ferrite Structural Steels, we pride ourselves on our meticulous attention to detail and commitment to quality. Each beam is produced with precision engineering, ensuring that they not only meet but exceed industry standards for durability and performance. Contact us today to discuss how our HE Beams can contribute to the success of your project. Request a quote and discover the Ferrite Structural Steels difference, where excellence in steel meets exceptional customer service.

Looking for HE Beam? Order Now
