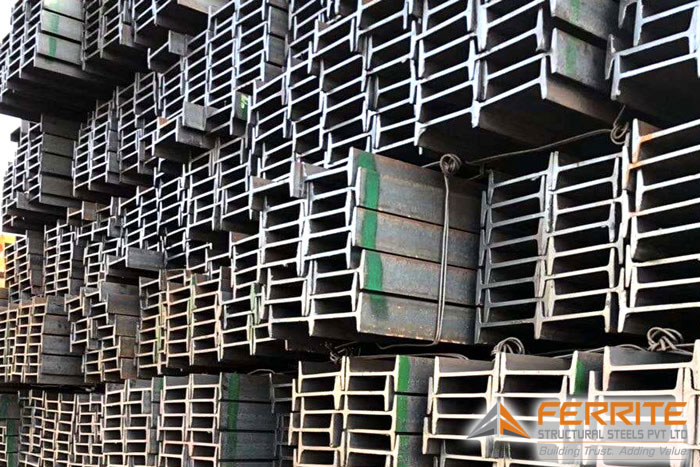

IPE Beam

Buy Premium Quality IPE Beams at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Universal Beams.

IPE Beam

IPE beams, or European I-beams, are a type of structural steel with a distinctive I-shaped cross-section, featuring narrow flanges to provide a lightweight but highly effective load-bearing profile. These beams are engineered to deliver optimum performance in a variety of structural applications, offering a perfect balance between strength and flexibility. The streamlined shape of IPE beams not only makes them lighter than traditional wide-flange beams but also highly efficient in terms of material use, making them a favored choice in environmentally conscious construction projects.

The unique characteristics of IPE beams include their significant depth relative to their width, which allows for better load distribution across the length of the beam. This aspect is particularly beneficial in applications requiring long spans with minimal support, such as in building frameworks, bridge construction, and other civil engineering projects.

At Ferrite Structural Steels Pvt Ltd, we are proud to be a major manufacturer and supplier of IPE beams, recognized for our dedication to quality and customer satisfaction. Leveraging advanced manufacturing processes and comprehensive quality control measures, we ensure that each IPE beam we produce meets the highest standards of performance and durability. Whether you are involved in constructing commercial real estate, industrial complexes, or bespoke architectural structures, Ferrite Structural Steels offers the expertise and high-quality IPE beams you need to ensure the success of your projects.

IPE Beam Specifications

Product Name IPE Beam
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Stainless Steel and Mild Steel
Finish Hot-rolled, galvanized, or as specified by customer

IPE Beams Size Chart

Description Size (mm) Kgs/m Flange Web
      Thickness (mm) Thickness (mm)
IPE 80 80 x 46 6 3.8 5.2
IPE 100 100 x 55 8.1 4.1 5.7
IPE 120 120 x 64 10.4 4.4 6.3
IPE 140 140 x 73 12.9 4.7 6.9
IPE 160 160 x 82 15.8 5 7.4
IPE 180 180 x 91 18.8 5.3 8
IPE 200 200 x 100 22.4 5.6 8.5
IPE 220 220 x 110 26.2 5 7.7
IPE 240 240 x 120 30.7 5.5 8.7
IPE 270 270 x 135 36.1 6.6 10.2
IPE 300 300 x 150 42.2 7.1 10.7

Key Features and Benefits

  1. Optimized Shape: IPE beams feature a characteristic I-shaped cross-section with relatively narrow flanges compared to other types of beams such as HEB or HEM. This design reduces the overall weight of the beam while maintaining high structural efficiency.
  2. High Strength-to-Weight Ratio: The geometry of IPE beams allows for excellent strength capabilities relative to their weight, making them an ideal choice for projects that require both robustness and lightness.
  3. Uniform Thickness: The web and flanges of IPE beams typically have uniform thickness, simplifying connections and fabrication processes.
  4. Environmental Impact: The efficient use of material not only reduces costs but also minimizes the environmental footprint of construction projects. The steel used in IPE beams is also fully recyclable, further enhancing their sustainability.
  5. Durability and Longevity: Constructed from high-quality steel, IPE beams are resistant to corrosion, wear, and tear, ensuring a long service life with minimal maintenance required.
  6. Aesthetic Appeal: With their sleek and modern look, IPE beams are often used in architectural contexts where the structure is visible, adding to the aesthetic value of the building.
  7. Ease of Installation: The lighter weight and standardized dimensions facilitate easier handling and faster installation, which can significantly speed up construction timelines.
  8. Enhanced Safety: The structural integrity of IPE beams contributes to safer construction environments and long-term reliability of buildings and structures.

Applications of IPE Beams

  1. Building Frameworks: IPE beams are commonly used in the construction of commercial and residential buildings due to their excellent load-bearing capacity. They are ideal for creating frameworks that require long spans without support, such as in office buildings or large living spaces.
  2. Industrial Structures: In industrial settings, IPE beams provide the necessary support for heavy machinery and large roofing systems. They are especially suitable for warehouses, workshops, and factories where large clear spans are needed.
  3. Infrastructure Projects: IPE beams are often employed in infrastructure development, including bridges, overpasses, and railway tracks. Their strength and durability make them suitable for projects that require long-lasting structural components.
  4. Support Structures: IPE beams are used to create various support structures such as crane rails, platforms, and mezzanines in both commercial and industrial constructions. Their robustness ensures safety and stability in these applications.
  5. Foundation Piles: In some engineering projects, IPE beams are utilized as foundation piles to provide deep foundation support for large structures, particularly in areas with unstable soil.
  6. Stadiums and Arenas: For large venues like stadiums and arenas, IPE beams are chosen for their ability to support large, open spaces, providing clear sightlines and unobstructed views for spectators.
  7. Reinforcement and Retrofitting: In renovation projects, IPE beams are often used to reinforce or replace existing beams, enhancing the structural integrity and extending the life of older buildings.
  8. Specialized Equipment Mounts: In technology and science industries, IPE beams are used to construct mounts and frames for specialized equipment, requiring precision and stability.

Why Choose Ferrite’s IPE Beams?

Choose Ferrite Structural Steels for your IPE Beams to leverage top-quality materials designed to meet the rigorous demands of modern construction. At Ferrite Structural Steels, we pride ourselves on our meticulous attention to detail and commitment to quality. Each beam is produced with precision engineering, ensuring that they not only meet but exceed industry standards for durability and performance. Contact us today to discuss how our IPE Beams can contribute to the success of your project. Request a quote and discover the Ferrite Structural Steels difference, where excellence in steel meets exceptional customer service.
