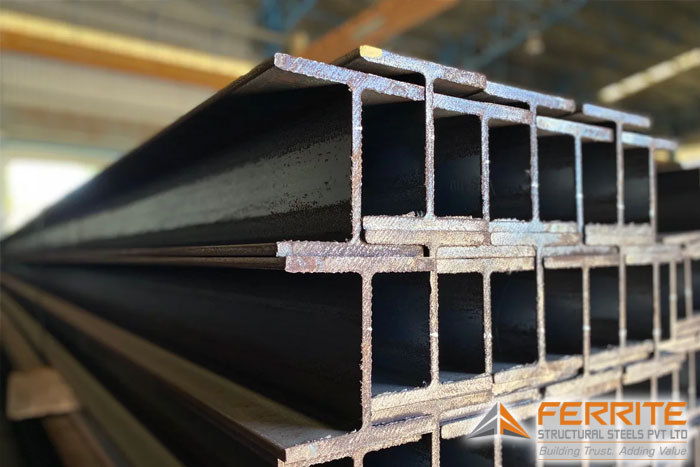

IS 2062 E250 Beams

Buy Premium Quality IS 2062 E250 Beams at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Mild Steel Beams.

IS 2062 E250 Beams

IS 2062 E250 Beams are a widely recognized standard in structural steel, known for their excellent balance of strength, ductility, and weldability. These beams are produced according to the Indian Standard IS 2062, which specifies the requirements for hot-rolled medium and high tensile structural steel. With a minimum yield strength of 250 MPa, IS 2062 E250 Beams are extensively used in various industries, including construction, infrastructure, and manufacturing, due to their reliability and versatility. They are ideal for frameworks, bridges, industrial structures, and general fabrication purposes, providing robust support and enduring performance.

Ferrite Structural Steels Pvt Ltd, a leading manufacturer and supplier, specializes in producing high-quality IS 2062 E250 Beams. Our commitment to excellence ensures that each beam meets stringent quality standards and performs optimally in diverse applications. With advanced manufacturing techniques and a focus on customer satisfaction, Ferrite Structural Steels Pvt Ltd stands out as a trusted partner for all your structural steel needs, offering products that deliver strength, durability, and reliability.

IS 2062 E250 Beams Specifications

Product Name IS 2062 E250 Beams
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Size Range (mm) 75 x 40 mm to 400 x 100 mm (or custom sizes)
Thickness (mm) 3 mm to 25 mm
Finish Hot-rolled, galvanized, or as specified by customer

IS 2062 E250 Beams Size Chart

Size (mm) Weight per Foot (kg) Weight per Meter (kg)
75 x 40 2.172 7.126
100 x 50 2.925 9.597
125 x 65 3.992 13.098
150 x 75 5.12 16.799
175 x 75 5.973 19.597
200 x 75 6.796 22.298
250 x 80 9.326 30.599
300 x 90 11.063 36.298
400 x 100 15.270 50.300



IS 2062 E250 Equivalent Grades

EN10025(90) EN10025(93) DIN 17100 NFA 35-501 BS4360
Fe 430C S275J0 St 44-3U E28-3 43 C



E250 CHEMICAL COMPOSITION

Grade Mn S P Si Carbon Equivalent (CE), Max
IS 2062 E 250 A 0.23 1.50 0.045 0.040 0.42



IS2062 E250 MECHANICAL PROPERTIES

Grade Yield strength N/mm2 Tensile strength N/mm2 Elongation (%)
IS 2062 E250 A 250 min 410 min 23

Key Features and Benefits

  1. High Yield Strength: With a minimum yield strength of 250 MPa, IS 2062 E250 Beams provide robust support for a wide range of structural applications, ensuring the integrity and stability of the structures they are used in.
  2. Excellent Ductility: These beams possess good ductility, allowing them to deform under high stress without cracking, which is essential for applications requiring flexibility and resilience.
  3. Superior Weldability: The chemical composition of IS 2062 E250 steel allows for excellent weldability, making it easier to join sections without compromising the structural integrity, which is crucial for complex construction projects.
  4. Durability: These beams are designed to withstand harsh environmental conditions and heavy loads, ensuring long-term durability and reliability in both indoor and outdoor applications.
  5. Cost-Effective: The balance of strength, ductility, and weldability offered by IS 2062 E250 Beams makes them a cost-effective choice for many projects, providing high performance at a reasonable cost.
  6. Ease of Fabrication: The material properties of IS 2062 E250 steel make it easy to cut, shape, and fabricate, which simplifies the construction process and reduces labor costs.

Applications of IS 2062 E250 Beams

  1. Building Construction: These beams are extensively used in the construction of residential, commercial, and industrial buildings. They provide essential support for structural frameworks, ensuring stability and safety.
  2. Infrastructure Projects: IS 2062 E250 Beams are crucial in infrastructure development, including bridges, flyovers, and tunnels. Their robust nature ensures the durability and reliability of these critical structures.
  3. Transportation Facilities: These beams are used in constructing transportation hubs such as railway stations, airports, and bus terminals. They provide the necessary structural support to handle heavy traffic and large crowds.
  4. Frameworks for Machinery: IS 2062 E250 Beams are used to build frameworks for heavy machinery and equipment in manufacturing plants. Their high strength and durability ensure that they can support significant weights and vibrations.
  5. Agricultural Buildings: These beams are suitable for constructing agricultural structures like barns, storage facilities, and greenhouses. Their ability to withstand various weather conditions makes them a reliable choice for rural applications.
  6. Retrofitting and Renovations: IS 2062 E250 Beams are often used in renovation and retrofitting projects to reinforce and strengthen existing structures, ensuring they meet modern safety and performance standards.

Why Choose Ferrite’s IS 2062 E250 Beams?

Choose Ferrite Structural Steels for top-quality IS 2062 E250 Beams that comply with stringent national standards, ensuring superior structural integrity and performance. Our IS 2062 E250 Beams are meticulously manufactured to meet your project’s specific requirements, offering unmatched durability and safety. For a personalized quote or to discuss your structural needs with our experts, please contact us. Reach out today and take the first step towards securing reliable and robust structural solutions with Ferrite Structural Steels. Let us help you build a stronger future.

Looking for IS 2062 E250 Beams? Order Now
