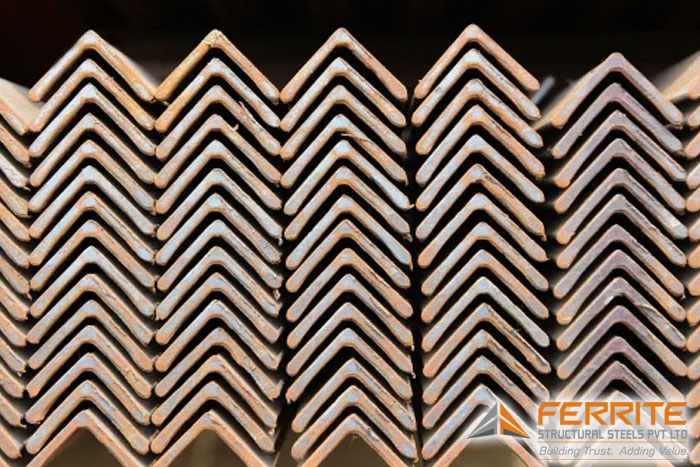

IS 2062 E250 Steel Angle

Buy Top Quality IS 2062 E250 Steel Angles at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Angles.

IS 2062 E250 is a widely recognized structural steel grade in India, known for its high strength and versatility. This grade is crucial in the construction industry due to its excellent mechanical properties and balanced chemical composition, which includes carbon, manganese, sulfur, phosphorus, and silicon. The combination of these elements results in a steel that offers high yield strength, good ductility, and excellent weldability, making it ideal for a variety of structural applications. IS 2062 E250 steel angles are commonly used in the construction of frameworks, support structures, bridges, flyovers, and other infrastructure projects. Their robustness and durability ensure long-lasting performance, even under challenging conditions.

Ferrite Structural Steels Pvt. Ltd. is a leading manufacturer and supplier of high-quality steel products, including IS 2062 E250 steel angles. Our commitment to excellence and innovation ensures that our products meet the highest industry standards and deliver reliable performance in diverse applications. We pride ourselves on providing customized solutions and expert guidance to help our clients achieve their project goals efficiently and effectively. With Ferrite, you can trust that you are getting superior products backed by exceptional customer service and technical support.

IS 2062 E250 STEEL Angle Specification

Product Name IS 2062 E250 STEEL Angles
Brand Ferrite Structural Steels Pvt Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Available Sizes 20 x 20 x 3 mm to 200 x 200 x 12 mm
Thickness From 3 mm to 20 mm
Length 6 m, 12 m, or customized lengths
Finish Painted, galvanized, or standard mill finish
Applications Building frameworks, infrastructure projects, supports in manufacturing, architectural elements

IS 2062 E250 STEEL Angle Size Chart

Size in mm Weight Per Meter in Kg. Size in mm Weight Per Meter in Kg.
20 x 20 x 3 0.9 75 x 75 x 10 11.00
25 x 25 x 3 1.1 90 x 90 x 8 10.8
25 x 25 x 5 1.8 90 x 90 x 10 13.4
30 x 30 x 3 1.4 100 x 100 x 6 9.2
35 x 35 x 5 2.6 100 x 100 x 8 12.1
40 x 40 x 3 1.8 100 x 100 x 10 14.9
40 x 40 x 5 3.0 100 x 100 x 12 17.7
40 x 40 x 6 3.5 110 x 110 x 8 13.4
50 x 50 x 5 3.8 110 x 110 x 10 16.5
50 x 50 x 6 4.5 130 x 130 x 10 19.7
65 x 65 x 6 5.8 130 x 130 x 12 23.4
65 x 65 x 8 7.7 150 x 150 x 10 22.8
65 x 65 x 10 9.4 150 x 150 x 12 27.2
75 x 75 x 6 6.8 200 x 200 x 12 36.6
75 x 75 x 8 8.9



IS 2062 E250 Equivalent Grades

EN10025(90) EN10025(93) DIN 17100 NFA 35-501 BS4360
Fe 430C S275J0 St 44-3U E28-3 43 C



E250 CHEMICAL COMPOSITION

Grade Mn S P Si Carbon Equivalent (CE), Max
IS 2062 E 250 A 0.23 1.50 0.045 0.040 0.42



IS2062 E250 MECHANICAL PROPERTIES

Grade Yield strength N/mm2 Tensile strength N/mm2 Elongation (%)
IS 2062 E250 A 250 min 410 min 23

Important Features and Benefits

  1. High Strength:
    • IS 2062 E250 steel angles offer a high yield strength, ensuring robust structural support and the ability to bear heavy loads without compromising integrity.
  2. Excellent Weldability:
    • The steel’s composition allows for easy and secure welding, facilitating seamless construction and assembly of various structural components.
  3. Good Ductility:
    • This steel grade exhibits excellent ductility, enabling it to absorb shocks and deformations without fracturing, which is crucial in dynamic and load-bearing applications.
  4. Corrosion Resistance:
    • When treated or coated, IS 2062 E250 steel angles demonstrate enhanced resistance to corrosion, making them suitable for outdoor and harsh environmental conditions.
  5. Cost-Effectiveness:
    • Offering a great balance between performance and price, these steel angles are an economical choice for a wide range of structural applications, providing long-term savings due to their durability and minimal maintenance needs.
  6. Ease of Fabrication:
    • The steel’s excellent machinability allows for easy cutting, drilling, and shaping, making it highly versatile and suitable for custom fabrication requirements.
  7. Consistency and Reliability:
    • Manufactured to strict industry standards, IS 2062 E250 steel angles ensure consistent quality and reliable performance across different projects.

ures and benefits highlight the advantages of using IS 2062 E250 steel angles in construction, infrastructure, and industrial applications, ensuring strength, durability, and cost-efficiency.

Applications of IS 2062 E250 Steel Angles

  1. Construction and Building:
    • Frameworks and Supports: Essential for creating robust frameworks and supports in residential, commercial, and industrial buildings.
    • Beams and Columns: Utilized in constructing load-bearing beams and columns that ensure structural integrity and stability.
  2. Manufacturing and Industrial Applications:
    • Machinery and Equipment: Used in the fabrication of heavy machinery, industrial equipment, and vehicle frames due to its strength and weldability.
    • Storage Systems: Constructing durable shelving, storage racks, and other storage solutions in warehouses and manufacturing facilities.
  3. Architectural Elements:
    • Decorative Structures: Employed in architectural designs for both functional support and aesthetic appeal, such as facades, trims, and ornamental structures.
    • Fencing and Gates: Used in creating strong and visually appealing fencing, gates, and railings.
  4. Energy Sector:
    • Power Plants: Integral in building structures within power plants and other energy facilities, ensuring stability and safety.
    • Renewable Energy: Supports structures in renewable energy projects, such as solar panel frames and wind turbine towers.
  5. Transportation Infrastructure:
    • Railways and Metro Systems: Utilized in constructing components for railway systems, metro stations, and related infrastructure.
    • Road and Highway Construction: Employed in building road signs, guardrails, and other highway structures.
  6. Marine and Coastal Structures:
    • Docks and Piers: Suitable for constructing docks, piers, and other marine structures due to their strength and corrosion resistance when treated.

These applications demonstrate the versatility and reliability of IS 2062 E250 steel angles, making them a preferred choice for various structural and industrial projects requiring high strength, durability, and cost-effectiveness.

Why Choose Ferrite’s IS 2062 E250 STEEL Angles?

Choosing Ferrite’s IS 2062 E250 steel angles means opting for a commitment to quality and adherence to strict industry standards. At Ferrite Structural Steels Pvt. Ltd., we pride ourselves on delivering high-quality steel products that meet and exceed our clients’ expectations. We understand that each project has unique needs, which is why we offer tailored support to help our clients select the right product specifications.

If you’re looking for high-quality IS 2062 E250 steel angles for your next project, Ferrite Structural Steels Pvt. Ltd. is here to help. Our dedicated team of experts is ready to assist you in selecting the right steel solutions, ensuring your project’s success with our durable and reliable products.

You can also fill out our Inquiry Form directly on our website for easy access and prompt responses.
