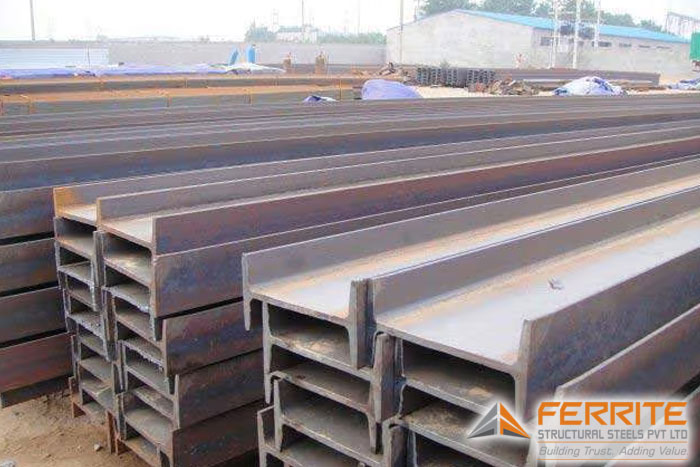

IS12779 Beams

Buy Premium Quality IS12779 Beams at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Mild Steel Beams.

IS12779 Beams

IS12779 Beams are specialized structural components designed according to the Indian Standard IS 12779, which specifies the requirements for hot-rolled steel strip for welded pipes and tubes. These beams are highly regarded for their superior strength, durability, and reliability, making them a popular choice in a variety of industries. Their robust construction and precise engineering ensure that they can withstand heavy loads and harsh environmental conditions, making them ideal for use in construction, infrastructure, and industrial projects.

Ferrite Structural Steels Pvt Ltd, a leading manufacturer and supplier, excels in producing high-quality IS12779 Beams. Our commitment to excellence and precision ensures that each beam meets the stringent quality standards required for diverse applications. With advanced manufacturing techniques and a focus on customer satisfaction, Ferrite Structural Steels Pvt Ltd has established itself as a trusted partner for all structural steel needs, providing products that deliver exceptional performance and reliability across various engineering and construction projects.

IS12779 Beams Specifications

Product Name IS12779 Beams
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Size Range (mm) 75 x 40 mm to 400 x 100 mm (or custom sizes)
Thickness (mm) 3 mm to 25 mm
Finish Hot-rolled, galvanized, or as specified by customer

IS12779 Beams Size Chart

Size (mm) Weight per Foot (kg) Weight per Meter (kg)
75 x 40 2.172 7.126
100 x 50 2.925 9.597
125 x 65 3.992 13.098
150 x 75 5.12 16.799
175 x 75 5.973 19.597
200 x 75 6.796 22.298
250 x 80 9.326 30.599
300 x 90 11.063 36.298
400 x 100 15.270 50.300



IS12779 Equivalent Grades

Standard ASTM (USA) EN (Europe) JIS (Japan) ISO BS (UK)
Equivalent Grade ASTM A500 Grade B S355J2H SM490A ISO 630 Fe 510D 50D



IS12779 Chemical Composition

Element Carbon (C) Manganese (Mn) Silicon (Si) Sulfur (S) Phosphorus (P) Nitrogen (N) Aluminum (Al) Copper (Cu)
Percentage (%) 0.22 max 1.60 max 0.55 max 0.045 max 0.045 max 0.012 max 0.02 max 0.55 max



IS12779 Mechanical Properties

Property Yield Strength Tensile Strength Elongation Impact Test
Value Min 355 MPa 490-630 MPa Min 22% at gauge length 5.65√(So) At -20°C, min 27 Joules (longitudinal)

Key Features and Benefits

  1. High Strength and Toughness: IS12779 Beams are manufactured to exhibit high strength and toughness, which makes them suitable for critical load-bearing applications where structural integrity is paramount, such as in construction and industrial environments.
  2. Excellent Weldability: The chemical composition of these beams ensures excellent weldability, facilitating easier joining processes in constructions that involve complex assemblies. This feature is particularly beneficial for industries where welded structures are predominant.
  3. Durability: These beams are designed to be highly durable, capable of withstanding harsh environmental conditions without significant degradation. This durability makes them ideal for use in both indoor and outdoor settings where exposure to the elements is a concern.
  4. Compliance with Standards: Being manufactured according to a specific Indian standard, these beams ensure compliance with national regulations, which is crucial for projects that require certification and adherence to safety and quality norms.
  5. Cost-Effectiveness: Despite their high-quality features, IS12779 Beams remain cost-effective solutions due to their long life span and minimal maintenance requirements. This makes them a preferred choice for projects that seek to balance cost and performance.
  6. Safety: The reliable performance of IS12779 Beams contributes significantly to the overall safety of the structures they are used in. Their ability to support heavy loads and resist mechanical stress helps prevent structural failures.

Applications of IS12779 Beams

  1. Construction and Infrastructure: These beams are extensively used in the construction of buildings, bridges, and other infrastructural projects where high strength and durability are essential. They are particularly valued in applications where welding is necessary to assemble large structures.
  2. Transportation Systems: In the transportation sector, these beams are used to build robust components of railway tracks, highway overpasses, and bridges. Their strength and weldability are crucial for ensuring the safety and longevity of these structures.
  3. Marine and Offshore Constructions: The durability and robustness of IS12779 Beams make them suitable for constructing marine platforms, docks, and ship superstructures, where resistance to harsh marine environments is required.
  4. Architectural and Structural Applications: In architectural projects, IS12779 Beams are used for their aesthetic and structural qualities, forming part of the visible framework in modern architectural designs that feature exposed steel.
  5. Renovation and Reinforcement: They are often used in renovation projects to reinforce and upgrade existing structures, enhancing their safety and extending their service life.

Why Choose Ferrite’s IS12779 Beams?

Choose Ferrite Structural Steels for top-quality IS12779 Beams that comply with stringent national standards, ensuring superior structural integrity and performance. Our IS12779 Beams are meticulously manufactured to meet your project’s specific requirements, offering unmatched durability and safety. For a personalized quote or to discuss your structural needs with our experts, please contact us. Reach out today and take the first step towards securing reliable and robust structural solutions with Ferrite Structural Steels. Let us help you build a stronger future.
