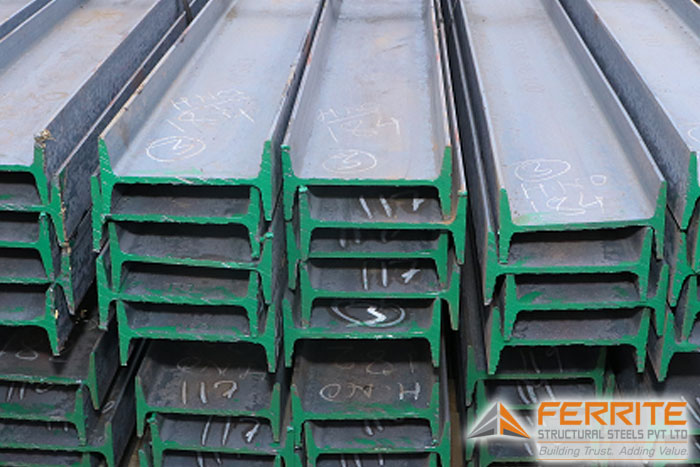

IS1852 Beams

Buy Premium Quality IS1852 Beams at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Mild Steel Beams.

IS1852 Beams

IS1852 Beams, specified by the Indian Standard IS1852, are highly regarded for their precision and robustness, crafted to meet stringent specifications for rolled steel beam, channel, angle, and tee sections. These beams are a staple in various structural projects due to their enhanced durability and adaptability, making them popular in industries ranging from construction and infrastructure to automotive and shipbuilding. Their standardized dimensions ensure consistency and reliability across all applications, which is essential for projects that demand high-quality structural components.

As a prominent manufacturer and supplier, Ferrite Structural Steels Pvt Ltd excels in producing IS1852 Beams that uphold the highest standards of quality. Our commitment to excellence ensures that each beam not only meets but exceeds the rigorous demands of modern engineering and construction. At Ferrite Structural Steels, we leverage advanced manufacturing techniques and stringent quality control measures to deliver products that provide superior performance and long-lasting durability, making us a trusted partner in the steel industry.

IS1852 Beams Specifications

Product Name IS1852 Beams
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Size Range (mm) 75 x 40 mm to 400 x 100 mm (or custom sizes)
Thickness (mm) 3 mm to 25 mm
Finish Hot-rolled, galvanized, or as specified by customer

IS1852 Beams Size Chart

Size (mm) Weight per Foot (kg) Weight per Meter (kg)
75 x 40 2.172 7.126
100 x 50 2.925 9.597
125 x 65 3.992 13.098
150 x 75 5.12 16.799
175 x 75 5.973 19.597
200 x 75 6.796 22.298
250 x 80 9.326 30.599
300 x 90 11.063 36.298
400 x 100 15.270 50.300

IS1852 Equivalent Grades

Country/Standard India (IS) European Union (EN) United States (ASTM International) United Kingdom (BS) Japan (JIS) International (ISO)
Equivalent Grade IS 2062 E250, E350 S275, S355 ASTM A36, ASTM A572 Grade 50 BS 4360 Grade 43A, 50D SS400, SM490 ISO 630 Fe360, Fe510

IS1852 Chemical Composition

Element Carbon (C) Manganese (Mn) Silicon (Si) Sulfur (S) Phosphorus (P)
Percentage 0.22% max 1.5% max 0.40% max 0.045% max 0.045% max

IS1852 Mechanical Properties

Steel Grade Yield Strength (min) Tensile Strength (min) Elongation
IS1852 350 MPa 490 MPa 22%

Key Features and Benefits

  1. Standardized Quality: IS1852 Beams are produced under strict specifications, ensuring consistent quality and dimensions across all beams. This standardization is crucial for projects that require uniform performance and structural integrity.
  2. Durability: Made from high-grade steel, these beams are designed to withstand harsh conditions and heavy loads, making them suitable for both indoor and outdoor applications in demanding environments.
  3. Cost-Effectiveness: The efficiency of production and the reduced need for custom specifications make IS1852 Beams a cost-effective choice for large-scale projects, helping to keep overall project costs down while maintaining high standards.
  4. Ease of Integration: With their standardized profiles, IS1852 Beams can be easily integrated with other structural components, facilitating smoother construction processes and reducing potential compatibility issues.
  5. Safety: The robustness and reliable quality of IS1852 Beams contribute to safer construction environments and end-structures, significantly reducing the risk of structural failures.
  6. Environmental Impact: Steel is one of the most recyclable materials in the world, and the use of IS1852 Beams contributes to sustainable construction practices by minimizing waste and promoting the reuse of materials.

Applications of IS1852 Beams

  1. Commercial Buildings: These beams are extensively used in the construction of commercial buildings, including office towers, shopping malls, and exhibition centers, where structural integrity and the ability to support heavy loads are crucial.
  2. Industrial Structures: IS1852 Beams are ideal for industrial applications such as factories, warehouses, and large workshops. They provide the necessary support for roofs, floors, and other critical structural elements in environments that demand durability and strength.
  3. Infrastructure Projects: These beams play a significant role in infrastructure development, including bridges, flyovers, and highways. Their robustness ensures long-term stability and safety for these large-scale projects.
  4. Residential Construction: In residential construction, IS1852 Beams are used in multi-story buildings and large housing complexes for main load-bearing structures, providing safety and durability.
  5. Public Facilities: Public structures such as stadiums, airports, and railway stations often utilize IS1852 Beams to meet their specific structural requirements, ensuring that these public amenities can accommodate large volumes of people and equipment safely.
  6. Renovation and Retrofitting: In renovation projects, IS1852 Beams are used to reinforce and upgrade existing structures, enhancing their structural integrity and extending their service life.
FAQs — IS 1852 Beams

IS 1852 Beams: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What does IS 1852 cover for rolled steel beams?
IS 1852 Beams refers to rolling and cutting tolerance requirements rather than a steel grade. It is used in projects requiring stated rolling and cutting tolerances for hot-rolled steel products. For structural work, the exact section, material grade, standard and connection detail must follow the approved drawings and calculations; a product-family name does not establish a safe load.
02
Is IS 1852 a chemical or mechanical grade specification?
IS 1852 is not, by itself, a material grade. It addresses dimensional, sectional or tolerance requirements relevant to the named product. The purchase order must separately state the steel grade and grade standard so chemistry, strength, toughness and weldability requirements are unambiguous.
03
How does IS 1852 differ from IS 808?
IS 1852 addresses rolling and cutting tolerances, whereas IS 808 addresses dimensions and sectional properties for hot-rolled structural sections. They perform different procurement functions. State the material grade separately and use the exact standards and editions required by the project documents.
04
How does IS 1852 relate to the beam material grade?
IS 1852 works alongside, not instead of, the material-grade standard. The dimensional or tolerance document controls geometry-related acceptance, while the grade standard controls chemistry and mechanical requirements. Both should be identified where the project specification requires them.
05
What sizes and thicknesses are listed for IS 1852 beams?
The stated page range is 75 x 40 mm to 400 x 100 mm, with thickness listed as 3 mm to 25 mm. The exact section must be verified against the applicable IS 1852 table and project edition. Section availability, mass and tolerances should be confirmed for the ordered designation.
06
Which rolling tolerances should be stated in the PO?
State the exact IS 1852 requirement, applicable edition, section designation and the dimensional items to be inspected. Also state the material grade, because IS 1852 does not by itself confirm chemistry or strength. Acceptance criteria should match the approved project specification.
07
Can an equivalent-grade table replace IS 1852 tolerance compliance?
No. An equivalent-grade table concerns material cross-references and cannot prove compliance with IS 1852 dimensional or tolerance requirements. Verify the delivered section geometry and permissible deviations against the specified standard, while checking the material grade separately through the MTC.
08
What dimensional items should be inspected under an IS 1852 requirement?
Check section depth, flange width, web and flange thickness, root radius, unit mass, sectional area and relevant section properties shown by the specified IS 1852 table. Also verify tolerances and edition. Do not calculate structural capacity from a sales-page size list.
09
What is the IS 1852 Beams price per kg?
A fixed current IS 1852 Beams price per kg should not be published because steel input cost, grade, section mass, quantity, length, finish and market date change. Provide the exact section, standard, total tonnage and delivery postcode for a dated quotation, and confirm GST, freight and fabrication inclusions.
10
Can I obtain a current IS 1852 Beams price per tonne?
Yes, IS 1852 Beams can be requested on a dated per-tonne basis for a defined specification. State the section, grade, standards, length, quantity, finish, MTC, inspection and destination. Compare quotations on the same weight basis, tax, freight, cutting and documentation terms.
11
Which factors change the cost of IS 1852 Beams?
The landed cost of IS 1852 Beams depends on base steel price, grade, unit mass, size availability, order mix, length, cutting, drilling, finish, testing, inspection, packing and transport. Mixed or uncommon sections may have different conversion and logistics costs from a repetitive bulk order.
12
What is the MOQ for IS 1852 Beams?
The page states an MOQ of 1 tonne. MOQ should still be confirmed where the order mixes sizes, asks for uncommon sections, special lengths, coatings, third-party inspection or export packing. Send the piece count and tonnage for every line item.
13
Is every IS 1852 Beams section available from stock?
Do not assume every IS 1852 Beams section, grade and length is ready stock. Availability must be checked against the exact specification, quantity and enquiry date. If the programme is critical, state the required delivery date and ask the quotation to identify the stock, mill or production basis.
14
Can IS 1852 Beams be supplied with an MTC?
An MTC requirement for IS 1852 Beams should be stated before ordering. Specify certificate type, heat or batch traceability, grade standard, subgrade and any project format. Check that the certificate relates to the supplied markings and ordered thickness; a generic document does not prove project compliance.
15
What inspection should be specified for IS 1852 Beams?
Inspection for IS 1852 Beams should verify identification, section dimensions, web and flange thickness, length, straightness, surface condition, quantity, marking and MTC traceability. If third-party inspection is required, state the agency, inspection stage, hold points, acceptance criteria and required reports in the enquiry.
16
Can IS 1852 Beams be cut, drilled or fabricated?
Cutting, drilling or fabrication for IS 1852 Beams can be reviewed from an approved drawing. Provide cut lengths, hole diameters and centres, copes, notches, end plates, weld details, tolerances and piece marks. Structural connections and welding procedures remain subject to engineer and fabricator approval.
17
What finish or corrosion-protection options can be reviewed?
The live page refers to hot-rolled, galvanised or customer-specified finishes for IS 1852 Beams. State the required surface preparation, paint or galvanising standard, coating inspection and cut-edge repair. Coating does not replace corrosion design, drainage, maintenance or fire-protection requirements.
18
Which applications commonly use IS 1852 Beams?
IS 1852 Beams is considered for projects requiring stated rolling and cutting tolerances for hot-rolled steel products. Suitability depends on section properties, grade, span, restraints, loading, connections, exposure and fire requirements. For any load-bearing use, the final section and grade must follow approved calculations, drawings, BOQ and project standards.
19
Can Ferrite supply IS 1852 Beams in Mumbai, Navi Mumbai and Maharashtra?
Ferrite can review IS 1852 Beams enquiries for Mumbai, Navi Mumbai, Maharashtra, nearby states, India-wide supply and export requirements. Availability and logistics depend on the exact size and quantity. Provide the delivery postcode or destination port, unloading constraints, Incoterm and required date.
20
What information is needed for a fast IS 1852 Beams quotation?
For a fast IS 1852 Beams quotation, send the section designation, profile, dimensions, unit mass if specified, grade, standards, length, pieces, tonnage, finish, make preference, MTC and inspection requirements. Add fabrication drawings, delivery postcode or port, Incoterm and required date where applicable.

Why Choose Ferrite’s IS1852 Beams?

Choose Ferrite Structural Steels for top-quality IS1852 Beams that comply with stringent national standards, ensuring superior structural integrity and performance. Our IS1852 Beams are meticulously manufactured to meet your project’s specific requirements, offering unmatched durability and safety. For a personalized quote or to discuss your structural needs with our experts, please contact us. Reach out today and take the first step towards securing reliable and robust structural solutions with Ferrite Structural Steels. Let us help you build a stronger future.
