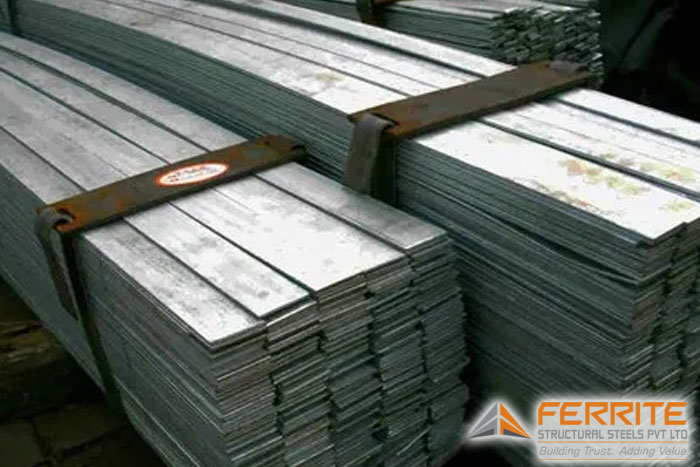

IS1852 Flat Bars

Buy Top Quality IS1852 Flat Bar at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Flat Bars.

IS1852 Flat Bars

IS1852 Flat Bars are a highly sought-after steel product, widely recognized for their excellent mechanical properties and versatility. These flat bars conform to the Indian Standard IS 1852, ensuring they meet rigorous quality and performance criteria. Known for their strength, durability, and ease of fabrication, IS1852 Flat Bars are extensively used in construction, manufacturing, automotive, and industrial applications. Their exceptional weldability and machinability make them an ideal choice for building frameworks, structural supports, and machinery components, contributing to their widespread popularity across various industries.

Ferrite Structural Steels Pvt Ltd is a major manufacturer and supplier of high-quality IS1852 Flat Bars. Our commitment to excellence ensures that each flat bar produced meets stringent industry standards, providing consistent performance and reliability. Leveraging advanced manufacturing processes and rigorous quality control measures, Ferrite Steels delivers products that meet the diverse needs of our clients. Whether you are involved in large-scale construction projects or precision engineering tasks, Ferrite Structural Steels Pvt Ltd is your trusted partner for reliable IS1852 Flat Bars.

IS1852 Flat Bar Specifications

Product Name IS1852 Flat Bar
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Finish Hot-rolled, galvanized, or as specified by customer

IS1852 Flat Bar Size Chart

Size (mm) Average Weight (KG/MTR) Average Weight (KG/FT)
10 x 10 0.8 0.2
12 x 12 1.1 0.3
14 x 14 1.5 0.5
16 x 16 2 0.6
17 x 17 2.27 0.69
20 x 20 3.14 1
25 x 25 4.9 1.5
32 x 32 8 2.4
40 x 40 12.6 3.8
42 x 42 13.85 4.22
50 x 50 19.6 6
53 x 53 22.05 6.72
56 x 56 24.6 7.5
63 x 63 31.2 9.5



IS1852 Equivalent Grades

Country/Standard India (IS) European Union (EN) United States (ASTM International) United Kingdom (BS) Japan (JIS) International (ISO)
Equivalent Grade IS 2062 E250, E350 S275, S355 ASTM A36, ASTM A572 Grade 50 BS 4360 Grade 43A, 50D SS400, SM490 ISO 630 Fe360, Fe510



IS1852 Chemical Composition

Element Carbon (C) Manganese (Mn) Silicon (Si) Sulfur (S) Phosphorus (P)
Percentage 0.22% max 1.5% max 0.40% max 0.045% max 0.045% max



IS1852 Mechanical Properties

Steel Grade Yield Strength (min) Tensile Strength (min) Elongation
IS1852 350 MPa 490 MPa 22%

Key Features and Benefits

  • High Strength: IS1852 flat bars offer excellent strength, making them suitable for load-bearing applications and structural support.
  • Excellent Weldability: These flat bars can be easily welded, allowing for seamless integration into complex structures and frameworks.
  • Good Machinability: IS1852 flat bars are easy to machine, cut, and shape, enabling precise fabrication and efficient production processes.
  • Durability: Made from high-quality steel, these flat bars are designed to withstand harsh environmental conditions and heavy usage.
  • Consistent Quality: Manufactured to stringent Indian standards, IS1852 flat bars provide consistent quality and performance, ensuring reliability in various applications.
  • Cost-Effective: IS1852 flat bars offer a cost-effective solution for many structural and engineering needs without compromising on quality or performance.
  • Reliability: The robust mechanical properties of IS1852 steel ensure that the flat bars can withstand significant stress and strain, providing reliable performance in demanding conditions.
  • Ease of Fabrication: The excellent weldability and machinability of IS1852 flat bars simplify the fabrication process, reducing time and labor costs in manufacturing and construction.
  • Durability: These flat bars are highly durable, ensuring long-lasting performance and reducing the need for frequent replacements.

Applications of IS1852 Flat Bar

Construction and Infrastructure

  • Building Frameworks: Widely used in constructing the frameworks of residential, commercial, and industrial buildings, providing essential structural support and stability.
  • Support Beams and Columns: Employed as support beams and columns in various types of construction, ensuring the structural integrity of buildings and bridges.

Manufacturing

  • Machinery Components: IS1852 Flat Bars are used to manufacture various machinery components, benefiting from their strength and machinability.
  • Fabrication of Tools: Ideal for fabricating tools and dies that require precision and durability, ensuring reliable performance in industrial applications.

Automotive Industry

  • Vehicle Frames: Used in the production of vehicle frames and chassis, providing the necessary strength and flexibility to withstand dynamic loads.
  • Components: Employed in manufacturing various automotive components that demand robust and reliable materials.

Industrial Applications

  • Equipment Manufacturing: Applied in the manufacturing of industrial equipment and machinery, where strength and resilience are essential for operation under heavy loads.
  • Platforms and Flooring: Used to create platforms, flooring, and other structural elements in industrial settings, ensuring durability and stability.

Agricultural Equipment

  • Farm Machinery: Utilized in the construction of farm machinery and equipment, providing durable and reliable components that can withstand harsh working conditions.

General Fabrication

  • Brackets and Supports: Commonly used to fabricate brackets, supports, and other general-purpose structural components that require reliable strength and stability.
  • Custom Fabrication: Ideal for custom fabrication projects that require specific dimensions and reliable material properties.

Railways

  • Rail Track Components: Used in the manufacturing of components for rail tracks and railway infrastructure, providing reliable performance under heavy loads and dynamic conditions.
FAQs — IS 1852 Flat Bars

IS 1852 Flat Bars: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What is IS 1852 Flat Bars?
IS 1852 Flat Bars is a flat-bar requirement referencing IS 1852 for rolling and cutting tolerances. IS 1852 is a dimensional-tolerance reference and should not be treated as a stand-alone steel grade. Buyers should state the intended application, width, thickness, length, quantity and governing specification so the requirement can be checked without assuming that every flat bar is interchangeable.
02
Which IS 1852 Flat Bars sizes are shown on the Ferrite page?
The live size chart lists 10 x 10, 12 x 12, 14 x 14, 16 x 16, 17 x 17, 20 x 20, 25 x 25, 32 x 32, 40 x 40, 42 x 42, 50 x 50, 53 x 53, 56 x 56 and 63 x 63 mm. Treat these as the published chart entries, not a guarantee of current stock. Confirm the required width, thickness, length, grade and tonnage at the enquiry stage, particularly where the drawing uses a size outside the chart.
03
How should width and thickness be written when buying IS 1852 Flat Bars?
Write the flat size as width x thickness in millimetres and add the required length. Avoid sending only one dimension or an ambiguous “size”. For a fast quotation, include IS 1852 Flat Bars, the full size, grade or standard, number of pieces, total tonnage, finish and delivery postcode.
04
What standard lengths are available for IS 1852 Flat Bars?
The reviewed page does not publish a fixed standard-length range. Availability should therefore be confirmed for the requested size, grade and quantity. State the exact bar length, permissible length tolerance, whether random lengths are acceptable, and whether cut lengths must follow an approved cutting list or fabrication drawing.
05
How is IS 1852 Flat Bars weight per metre calculated?
For a rectangular steel flat, theoretical weight in kg/m is approximately width (mm) x thickness (mm) x 0.00785. This uses a nominal steel density and nominal dimensions. Procurement weight should be checked against the applicable standard, permitted rolling tolerance, actual length and the supplier’s documented basis of invoicing.
06
Can I get a IS 1852 Flat Bars weight chart?
Yes, the product page provides average kg/m and kg/ft entries for its listed sizes. Use the chart for estimation and BOQ planning, then confirm the quotation basis. For an unlisted size, calculate theoretical mass from width and thickness and allow for the applicable dimensional and mass tolerances.
07
What is the IS 1852 Flat Bars price per kg?
The price per kg is quotation-based rather than a fixed web price. It can change with steel input cost, grade, section size, quantity, finish, testing, cutting, freight and taxes. Send the complete specification and delivery location to obtain a dated, comparable quotation.
08
How is the IS 1852 Flat Bars price per tonne determined?
Price per tonne depends on IS 1852 for tolerances together with the specified material grade and product standard, size mix, total tonnage, length, finish, documentation, inspection and destination. Ask whether freight, packing, GST, cutting and inspection are included. A useful quotation should identify its validity period and the exact material specification offered.
09
What is the MOQ for IS 1852 Flat Bars?
The live page states a minimum order quantity of 1 tonne. Actual acceptance remains subject to the requested size, grade, finish and current availability. For mixed-size orders, provide the quantity of each line item so the supplier can review whether the total and individual quantities are workable.
10
Is IS 1852 Flat Bars available from stock?
Stock must be confirmed for the required size, grade, length, finish and quantity. A product listing or size chart does not prove immediate availability. Buyers should also state any mill or make preference, MTC requirement and required delivery date because these factors may affect sourcing and allocation.
11
Can an MTC be supplied with IS 1852 Flat Bars?
Request the mill test certificate at the enquiry stage and specify the required certificate type or project format. The document should correspond to the supplied material and state the applicable grade or standard, heat or batch identification and reported test results. Any third-party review must be agreed before order placement.
12
What inspection documents should be requested for IS 1852 Flat Bars?
The document package should match the contract and may include the MTC, commercial packing details, dimensional inspection records or other agreed certificates. Do not assume every document is standard. State the inspection agency, witness or hold points, acceptance criteria and document submission timing in the purchase enquiry.
13
Is IS 1852 a steel grade or a dimensional standard?
IS 1852 should be treated as a dimensional or tolerance reference, not as the material grade itself. The purchase order must separately state the steel grade, product standard, dimensions and required tests. Chemical and mechanical acceptance comes from the material specification, while dimensional compliance comes from the cited dimensional standard.
14
Can IS 1852 Flat Bars be cut, drilled or fabricated?
Cutting, drilling or other fabrication can be reviewed against the drawing and quantity, but capability should be confirmed before ordering. Provide a dimensioned drawing, hole sizes and locations, edge requirements, permissible tolerances, piece identification and whether fabrication must occur before coating. Final structural details require engineer approval.
15
Which industries use IS 1852 Flat Bars?
Common buyer applications include fabricated frames, machinery components, brackets, supports and construction steelwork. Suitability depends on the selected grade, dimensions, delivery condition, environment and design calculations. The product name alone should not be used as a structural load recommendation; final selection must follow the approved drawing, BOQ and responsible engineer’s approval.
16
Can I buy IS 1852 Flat Bars from a supplier in Mumbai or Navi Mumbai?
Ferrite Structural Steels Pvt Ltd lists its head office in Mumbai and a facility address at Kalamboli, Navi Mumbai. Buyers in Mumbai, Navi Mumbai and Maharashtra should provide the delivery postcode, unloading constraints, size-wise quantity and required date so logistics and availability can be reviewed accurately.
17
Can IS 1852 Flat Bars be supplied across India?
The website states nationwide supply. India-wide enquiries should include the destination postcode, consignee details, total tonnage, bar length, packing expectations and delivery schedule. Freight and transit planning can vary materially for long steel products, so compare quotations on the same delivered or ex-works basis.
18
Does Ferrite handle export enquiries for IS 1852 Flat Bars?
Export requirements can be reviewed against the requested specification and quantity. Provide the destination country and port, Incoterm, packing requirement, grade and standard, length, tonnage, inspection requirement and documentation list. Availability, export packing, shipping terms and delivery programme should be confirmed for the specific enquiry.
19
How should I compare quotations from IS 1852 Flat Bars suppliers?
Compare the exact grade and standard, dimensions, tolerance basis, length, quantity, finish, make or mill if specified, MTC, inspection, packing, freight, taxes, delivery basis and quotation validity. A lower rate is not comparable if the offered material, documents or logistics scope differs from the BOQ.
20
What information is needed for a fast IS 1852 Flat Bars quotation?
Send the product name, width x thickness, grade, standard, length, piece quantity and total tonnage. Add finish or coating, make preference, MTC and third-party inspection needs, cutting drawing, delivery postcode or destination port, Incoterm for export and required delivery date. Mention the BOQ item reference where applicable.

Why Choose Ferrite’s IS1852 Flat Bar?

Choosing Ferrite’s IS1852 Flat Bars means selecting a product known for its reliability, durability, and performance in challenging environments. At Ferrite Structural Steels Pvt Ltd, we specialize in producing high-quality IS1852 Flat Bars using meticulous manufacturing processes that adhere to strict quality standards. Each bar undergoes rigorous testing to ensure it meets our high standards, guaranteeing that our customers receive only the best products.

We are committed to providing not only top-quality steel but also exceptional customer service. Our team is dedicated to assisting you in finding the perfect steel solutions for your projects, ensuring that all your specifications and requirements are met efficiently. Contact us today to discuss your needs and request a quote. We are here to support your projects with our reliable and high-performing products.
