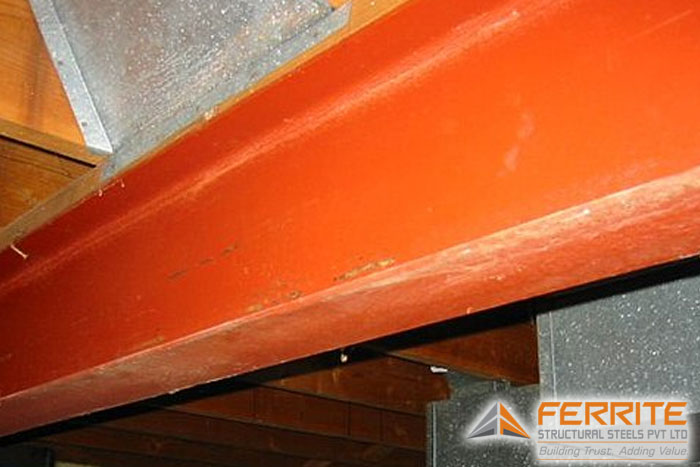

IS808 Beams

Buy Premium Quality IS808 Beams at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Mild Steel Beams.

IS808 Beams

IS808 Beams, defined by the Indian Standard (IS) 808, are renowned for their precise engineering and robust performance, adhering strictly to the standards set for dimensions and quality for hot-rolled steel beam sections. These beams are integral to construction and infrastructure projects, widely appreciated for their reliability and structural integrity. Their standardized specifications make IS808 Beams a popular choice across various sectors, including commercial building construction, bridges, industrial frameworks, and heavy machinery supports, where consistency and safety are paramount.

Ferrite Structural Steels Pvt Ltd, as a major manufacturer and supplier, excels in producing IS808 Beams that meet these rigorous standards. Our commitment to quality and precision in manufacturing ensures that each beam we produce offers superior performance and durability. Ferrite Structural Steels’ advanced production techniques and meticulous quality control processes position us at the forefront of the steel industry, making us a trusted partner for clients requiring dependable steel solutions that drive project success.

IS808 Beams Specifications

Product Name IS808 Beams
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Size Range (mm) 75 x 40 mm to 400 x 100 mm (or custom sizes)
Thickness (mm) 3 mm to 25 mm
Finish Hot-rolled, galvanized, or as specified by customer

IS808 Beams Size Chart

Size (mm) Weight per Foot (kg) Weight per Meter (kg)
75 x 40 2.172 7.126
100 x 50 2.925 9.597
125 x 65 3.992 13.098
150 x 75 5.12 16.799
175 x 75 5.973 19.597
200 x 75 6.796 22.298
250 x 80 9.326 30.599
300 x 90 11.063 36.298
400 x 100 15.270 50.300

IS808 Equivalent Grades

Parameter IS808 ASTM  EN BS JIS ISO
Details Standard for hot-rolled steel sections ASTM A36, ASTM A992 EN 10025 S275, S355 BS 4360  JIS G3101 SS400, SS490 ISO 630

IS808 Chemical Composition

Element Carbon (C) Manganese (Mn) Silicon (Si) Sulfur (S) Phosphorus (P)
Percentage 0.22% max 1.5% max 0.40% max 0.045% max 0.045% max

IS808 Mechanical Properties

Steel Grade Yield Strength (min, in MPa) Tensile Strength (min, in MPa) Elongation (%)
IS808 250 410 23

Key Features and Benefits

  1. Standardized Quality: IS808 Beams are produced following strict guidelines, ensuring uniform quality and dimensions. This standardization is crucial for projects requiring consistent performance across all structural components.
  2. High Structural Integrity: These beams are known for their robustness and ability to bear heavy loads, making them suitable for major construction projects like buildings, bridges, and industrial facilities.
  3. Durability: The manufacturing process and quality control for IS808 Beams ensure that they are highly durable and resistant to environmental stressors, contributing to the longevity of the structures they are used in.
  4. Cost-Effectiveness: By adhering to a standardized specification, IS808 Beams reduce the need for custom fabrication, which can lower project costs. Their durability and maintenance-free nature also contribute to long-term savings.
  5. Safety: The reliability of IS808 Beams, thanks to their compliance with established standards, ensures safety in construction, supporting structures safely and effectively under diverse conditions.
  6. Ease of Integration: The uniformity in specification facilitates easier integration with other structural components, streamlining the construction process and reducing the potential for compatibility issues.

Applications of IS808 Beams

  1. Commercial Buildings: These beams are extensively used in the construction of commercial buildings, including office towers, shopping malls, and exhibition centers, where structural integrity and the ability to support heavy loads are crucial.
  2. Industrial Structures: IS808 Beams are ideal for industrial applications such as factories, warehouses, and large workshops. They provide the necessary support for roofs, floors, and other critical structural elements in environments that demand durability and strength.
  3. Infrastructure Projects: These beams play a significant role in infrastructure development, including bridges, flyovers, and highways. Their robustness ensures long-term stability and safety for these large-scale projects.
  4. Residential Construction: In residential construction, IS808 Beams are used in multi-story buildings and large housing complexes for main load-bearing structures, providing safety and durability.
  5. Public Facilities: Public structures such as stadiums, airports, and railway stations often utilize IS808 Beams to meet their specific structural requirements, ensuring that these public amenities can accommodate large volumes of people and equipment safely.
  6. Renovation and Retrofitting: In renovation projects, IS808 Beams are used to reinforce and upgrade existing structures, enhancing their structural integrity and extending their service life.
FAQs — IS 808 Beams

IS 808 Beams: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What does IS 808 specify for steel beams?
IS 808 Beams refers to Indian dimensional and sectional requirements for hot-rolled steel beam sections. It is used in Indian structural frameworks, bridges, industrial structures and machinery supports. For structural work, the exact section, material grade, standard and connection detail must follow the approved drawings and calculations; a product-family name does not establish a safe load.
02
Is IS 808 a material grade?
IS 808 is not, by itself, a material grade. It addresses dimensional, sectional or tolerance requirements relevant to the named product. The purchase order must separately state the steel grade and grade standard so chemistry, strength, toughness and weldability requirements are unambiguous.
03
How is IS 808 different from IS 2062?
IS 808 deals with dimensions and sectional properties for hot-rolled structural sections, while IS 2062 specifies material-grade requirements. A compliant order may need both: one to identify the section geometry and another to define chemistry and mechanical properties. State the applicable editions in the BOQ.
04
How does an IS 808 dimensional requirement work alongside the material grade?
IS 808 works alongside, not instead of, the material-grade standard. The dimensional or tolerance document controls geometry-related acceptance, while the grade standard controls chemistry and mechanical requirements. Both should be identified where the project specification requires them.
05
What size and thickness range is stated for IS 808 beams?
The stated page range is 75 x 40 mm to 400 x 100 mm, with thickness listed as 3 mm to 25 mm. The exact section must be verified against the applicable IS 808 table and project edition. Section availability, mass and tolerances should be confirmed for the ordered designation.
06
Which IS 808 requirements should be stated in the purchase order?
State the exact IS 808 requirement, applicable edition, section designation and the dimensional items to be inspected. Also state the material grade, because IS 808 does not by itself confirm chemistry or strength. Acceptance criteria should match the approved project specification.
07
Can a non-IS 808 section be substituted automatically?
No. An equivalent-grade table concerns material cross-references and cannot prove compliance with IS 808 dimensional or tolerance requirements. Verify the delivered section geometry and permissible deviations against the specified standard, while checking the material grade separately through the MTC.
08
What should a buyer verify in an IS 808 section table?
Check section depth, flange width, web and flange thickness, root radius, unit mass, sectional area and relevant section properties shown by the specified IS 808 table. Also verify tolerances and edition. Do not calculate structural capacity from a sales-page size list.
09
What is the current commercial rate for IS 808 Beams per kg?
A fixed current IS 808 Beams price per kg should not be published because steel input cost, grade, section mass, quantity, length, finish and market date change. Provide the exact section, standard, total tonnage and delivery postcode for a dated quotation, and confirm GST, freight and fabrication inclusions.
10
Can IS 808 Beams be quoted on a per-tonne basis?
Yes, IS 808 Beams can be requested on a dated per-tonne basis for a defined specification. State the section, grade, standards, length, quantity, finish, MTC, inspection and destination. Compare quotations on the same weight basis, tax, freight, cutting and documentation terms.
11
What commercial items affect the landed price of IS 808 Beams?
The landed cost of IS 808 Beams depends on base steel price, grade, unit mass, size availability, order mix, length, cutting, drilling, finish, testing, inspection, packing and transport. Mixed or uncommon sections may have different conversion and logistics costs from a repetitive bulk order.
12
How is the MOQ confirmed for IS 808 Beams?
The page states an MOQ of 1 tonne. MOQ should still be confirmed where the order mixes sizes, asks for uncommon sections, special lengths, coatings, third-party inspection or export packing. Send the piece count and tonnage for every line item.
13
How should stock availability for IS 808 Beams be checked?
Do not assume every IS 808 Beams section, grade and length is ready stock. Availability must be checked against the exact specification, quantity and enquiry date. If the programme is critical, state the required delivery date and ask the quotation to identify the stock, mill or production basis.
14
Can buyers request heat traceability and an MTC for IS 808 Beams?
An MTC requirement for IS 808 Beams should be stated before ordering. Specify certificate type, heat or batch traceability, grade standard, subgrade and any project format. Check that the certificate relates to the supplied markings and ordered thickness; a generic document does not prove project compliance.
15
What should third-party inspection cover for IS 808 Beams?
Inspection for IS 808 Beams should verify identification, section dimensions, web and flange thickness, length, straightness, surface condition, quantity, marking and MTC traceability. If third-party inspection is required, state the agency, inspection stage, hold points, acceptance criteria and required reports in the enquiry.
16
Can IS 808 Beams be supplied to a cutting or drilling drawing?
Cutting, drilling or fabrication for IS 808 Beams can be reviewed from an approved drawing. Provide cut lengths, hole diameters and centres, copes, notches, end plates, weld details, tolerances and piece marks. Structural connections and welding procedures remain subject to engineer and fabricator approval.
17
Which surface condition should be specified for IS 808 Beams?
The live page refers to hot-rolled, galvanised or customer-specified finishes for IS 808 Beams. State the required surface preparation, paint or galvanising standard, coating inspection and cut-edge repair. Coating does not replace corrosion design, drainage, maintenance or fire-protection requirements.
18
Which industries buy IS 808 Beams?
IS 808 Beams is considered for Indian structural frameworks, bridges, industrial structures and machinery supports. Suitability depends on section properties, grade, span, restraints, loading, connections, exposure and fire requirements. For any load-bearing use, the final section and grade must follow approved calculations, drawings, BOQ and project standards.
19
Does Ferrite review India and export enquiries for IS 808 Beams?
Ferrite can review IS 808 Beams enquiries for Mumbai, Navi Mumbai, Maharashtra, nearby states, India-wide supply and export requirements. Availability and logistics depend on the exact size and quantity. Provide the delivery postcode or destination port, unloading constraints, Incoterm and required date.
20
Which details prevent delays in a IS 808 Beams quotation?
For a fast IS 808 Beams quotation, send the section designation, profile, dimensions, unit mass if specified, grade, standards, length, pieces, tonnage, finish, make preference, MTC and inspection requirements. Add fabrication drawings, delivery postcode or port, Incoterm and required date where applicable.

Why Choose Ferrite’s IS808 Beams?

Choose Ferrite Structural Steels for top-quality IS808 Beams that comply with stringent national standards, ensuring superior structural integrity and performance. Our IS808 Beams are meticulously manufactured to meet your project’s specific requirements, offering unmatched durability and safety. For a personalized quote or to discuss your structural needs with our experts, please contact us. Reach out today and take the first step towards securing reliable and robust structural solutions with Ferrite Structural Steels. Let us help you build a stronger future.
