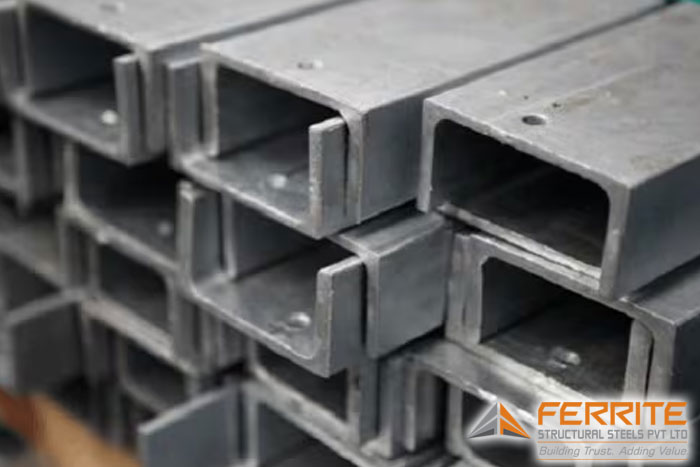

IS808 Channel

Buy Top Quality IS808 Channels at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Channels.

IS808 Channel

IS808 channel is a structural steel product designed to conform to the Indian Standard IS808, which specifies dimensions and sectional properties for hot rolled steel beam, column, channel, and angle sections. This standard ensures that IS808 channels meet rigorous requirements for dimensions, strength, and durability, making them highly sought after in a variety of construction and engineering projects. The popularity of IS808 channels stems from their precision in manufacturing, which provides consistent quality and performance, essential in structural applications such as building frames, bridges, and industrial frameworks.

Ferrite Structural Steels Pvt Ltd is a premier manufacturer and supplier of IS808 channels, recognized for our adherence to national standards and our commitment to delivering superior steel products. Our IS808 channels are produced using advanced manufacturing techniques and quality control measures to ensure they meet the specific needs of each project. At Ferrite Steels, we are dedicated to supporting the construction and manufacturing industries with reliable and high-quality steel solutions that contribute to the structural integrity and success of various projects. Whether you are involved in large-scale infrastructure development or smaller architectural endeavors, Ferrite Structural Steels provides robust IS808 channels that ensure safety, durability, and performance.

IS808 Channel Specification

Product Name IS808 Channels
Brand Ferrite Structural Steels Pvt Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Finish Painted, galvanized, or standard mill finish
Applications Building frameworks, infrastructure projects, supports in manufacturing, architectural elements

IS808 Channel Size Chart

Size in mm Average Weight KG/MTR Average Weight KG/FT
70 x 35 4.2 1.3
75 x 40 5.2 1.58
75 x 40 STD 7.1 2.2
75 x 40 MED 6.5 2
75 x 40 LIGHT 5.7 1.7
100 x 50 STD 9.56 2.9
100 x 50 MED 9.2 2.8
100 x 50 LT MED 8.7 2.6
100 x 50 LIGHT 7.9 2.4
120 x 55 12.5 3.1
125 x 65 13.1 4
150 x 75 16.8 5.1
200 x 75 22.3 6.8



IS808 Equivalent Grades

Parameter IS808 ASTM  EN BS JIS ISO
Details Standard for hot-rolled steel sections ASTM A36, ASTM A992 EN 10025 S275, S355 BS 4360  JIS G3101 SS400, SS490 ISO 630



IS808 Chemical Composition

Element Carbon (C) Manganese (Mn) Silicon (Si) Sulfur (S) Phosphorus (P)
Percentage 0.22% max 1.5% max 0.40% max 0.045% max 0.045% max



IS808 Mechanical Properties

Steel Grade Yield Strength (min, in MPa) Tensile Strength (min, in MPa) Elongation (%)
IS808 250 410 23

Important Features and Benefits

  1. Standardized Quality and Dimensions: IS808 channels are manufactured to meet specific standards, ensuring uniform quality, precise dimensions, and consistent performance. This standardization is critical for projects that require exacting specifications for structural integrity and alignment.
  2. High Strength and Durability: These channels are designed to provide excellent strength and durability, making them suitable for heavy-load bearing structures in construction and industrial applications. The robust nature of IS808 channels ensures long-term stability and resistance to environmental stresses.
  3. Excellent Weldability and Fabrication: The steel used in IS808 channels exhibits great weldability, allowing for easy fabrication and assembly in complex constructions. This feature is particularly beneficial in projects that involve extensive welding and customization.
  4. Compliance with Indian Standards: Compliance with IS808 ensures that these channels are suitable for use in projects that must adhere to national regulations and standards. This compliance provides reassurance to project managers and engineers regarding the quality and reliability of the materials used.
  5. Environmental Sustainability: Like other steel products, IS808 channels are recyclable, reducing the environmental impact associated with their use in construction. Using sustainable materials like steel channels helps promote green building practices and contributes to conservation efforts.
  6. Customization and Flexibility: Ferrite Structural Steels Pvt Ltd offers customization of IS808 channels to meet specific project requirements. This flexibility allows clients to order channels that fit precise dimensional and structural needs, enhancing the efficiency and effectiveness of construction and manufacturing processes.

Applications of IS808 Channels

Construction and Infrastructure

  • Building Frameworks: IS808 channels are extensively used in constructing frameworks for residential, commercial, and industrial buildings. Their strength and durability make them ideal for supporting structures that require robust and long-lasting materials.
  • Bridges: Given their robust nature, these channels are commonly used in bridge construction, providing necessary support and stability to handle heavy traffic loads and environmental stresses.

Architectural and Design

  • Architectural Features: IS808 channels can be utilized in the design of architectural features where structural integrity and aesthetic appearance are both priorities. They are often seen in exposed structures within modern architectural designs.
  • Custom Fixtures and Frames: These channels are also employed in creating custom fixtures and frames for large windows, doors, and facades in commercial and public buildings.

Transportation Infrastructure

  • Railway and Metro Systems: IS808 channels are used in the construction of railway and metro infrastructure, including platforms, overhead structures, and maintenance facilities.
  • Heavy-duty Racks and Carriers: Suitable for transportation systems that require robust structural elements, these channels are used to fabricate heavy-duty racks, carriers, and frameworks in vehicles and shipping containers.

Energy Sector

  • Power Plants: IS808 channels find applications in power plants for constructing support structures that house machinery, conveyors, and pipelines.
  • Renewable Energy Installations: They are also used in building frames for solar panels and wind turbines, providing the necessary strength and support for renewable energy infrastructures.
FAQs — IS 808 Channel

IS 808 Channel: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What is an IS 808 channel?
IS 808 Channel refers to a hot-rolled channel section identified by the Indian dimensional standard IS 808. It is used in building frames, infrastructure, transport, energy supports and engineered fabrication. The name does not establish safe capacity; final selection must follow the approved drawing, BOQ, material and dimensional standards and the responsible engineer’s calculations.
02
Is IS 808 a material grade specification?
No. IS 808 is principally a dimensional and section-property standard for hot-rolled steel sections, not a material strength grade. A purchase order must separately state the approved material specification and complete grade, plus the IS 808 section designation and tolerances.
03
What does IS 808 control for channel sections?
IS 808 controls recognised dimensional data for hot-rolled structural sections, including designations, geometry, mass and section properties within its scope. It does not by itself select the material grade. State IS 2062 or another approved material specification separately.
04
Which IS 808 channel sizes and weight variants are listed?
The live page shows 70 x 35 mm to 200 x 75 mm in the published chart, with 4.2 kg/m to 22.3 kg/m, with STD/MED/LIGHT variants for selected sizes. These are catalogue values rather than stock or load confirmation. State the exact section or STD/MED/LIGHT variant, grade, dimensional standard, length and quantity, then verify the row against approved documents.
05
How should material grade be stated with an IS 808 channel?
State the IS 808 channel designation together with the separate approved material specification and full grade, such as the exact IS 2062 grade and quality where required. Also include the standard editions, length, quantity, finish, MTC type, inspection and project drawing reference.
06
What is the difference between IS 808 and IS 2062?
IS 808 addresses dimensions, mass and section properties for hot-rolled structural sections, while IS 2062 specifies structural-steel material grades and related requirements. A channel may need both: one to define its shape and another to define the steel. Neither automatically replaces the other.
07
Can an IS 808 channel be substituted by matching only kg/m?
No grade or section should automatically replace IS 808 Channel. Compare chemistry, mechanical properties, impact quality, thickness limits, delivery condition, dimensional standard, mass and project requirements. Any substitution needs written engineer or end-user approval and revised calculations where section properties change.
08
What dimensions should be checked during IS 808 channel inspection?
Check the exact designation, depth, flange width, web and flange thickness, root radius where applicable, mass per metre, length, straightness, end condition and rolling tolerances. Confirm the measurement method and acceptance criteria from the specified edition of IS 808 and project documents.
09
How is the IS 808 Channel price per kg calculated?
Do not publish a fixed current IS 808 Channel price per kg. The rate changes with grade, section mass, quantity, length, finish, market date and supply route. Send the exact designation, standards, total tonnage and delivery postcode for a dated quotation, then confirm GST, freight and fabrication inclusions.
10
Can a bulk IS 808 Channel supplier quote a current tonne rate?
A current IS 808 Channel price per tonne can be quoted for a defined requirement. State section, grade and standards, length, pieces or tonnage, finish, MTC, inspection and destination. Compare offers on the same weight basis and verify tax, freight, cutting, packing and documentation terms.
11
Why may two IS 808 Channel supplier quotations differ?
The landed cost of IS 808 Channel depends on grade, mass variant, availability, order mix, tonnage, length, cutting, drilling, coating, testing, inspection, packing and transport. Mixed or uncommon sections can price differently from one repetitive bulk size, so compare line items and inclusions.
12
How is the minimum order quantity confirmed for IS 808 Channel?
The live page states a minimum order quantity of 1 tonne. Confirm how MOQ applies when an enquiry mixes sizes, grades, STD/MED/LIGHT variants, special lengths, finishes or inspection. Provide the piece count and calculated tonnage for every line item.
13
How should current IS 808 Channel availability be checked?
Do not assume every IS 808 Channel section, grade, weight variant and length is ready stock. Availability should be confirmed against the exact specification, quantity and enquiry date. If timing matters, state the required date and ask whether the offer is based on stock, incoming material or reviewed supply.
14
Can heat traceability and an MTC be requested for IS 808 Channel?
Request the MTC for IS 808 Channel at the enquiry stage, stating certificate type, full grade, standard edition, heat traceability and project format. Check that it matches supplied markings, section and thickness. A generic certificate does not prove every dimensional, toughness or coating requirement.
15
What should third-party inspection cover for IS 808 Channel?
Inspection for IS 808 Channel should cover identification, dimensions, web and flange thickness, length, straightness, surface condition, quantity, marking and MTC traceability. For third-party inspection, specify the agency, stage, hold points, acceptance criteria and reports before ordering.
16
Can fabrication drawings be included with a IS 808 Channel enquiry?
Cutting, drilling or fabrication of IS 808 Channel can be reviewed against an approved drawing. Provide cut lengths, holes, notches, end plates, weld details, tolerances and piece marks. Connection design, welding procedures and structural modifications remain subject to engineer and fabricator approval.
17
Should mill, painted or galvanised finish be stated for IS 808 Channel?
The live page lists painted, galvanised or standard mill finish for IS 808 Channel. State the surface condition, paint or galvanising standard, preparation, coating inspection and fabrication sequence. Galvanised mild steel is corrosion-resistant rather than permanently rust-proof, and cut edges may require an approved repair system.
18
Which industries procure IS 808 Channel?
IS 808 Channel are considered for building frames, infrastructure, transport, energy supports and engineered fabrication. Suitability depends on section properties, grade, exposure, orientation, span, restraints, loads, connections and fire requirements. Final use must follow approved calculations, drawings, BOQ and project standards.
19
Does Ferrite review India-wide and export enquiries for IS 808 Channel?
Ferrite can review IS 808 Channel requirements for Mumbai, Navi Mumbai, Maharashtra, nearby states, India-wide supply and export enquiries. Availability and logistics depend on section and quantity. Provide the delivery postcode or destination port, Incoterm, unloading constraints and required date.
20
Which information prevents delay in a IS 808 Channel quotation?
For a fast IS 808 Channel quotation, send profile, exact section and mass variant, full grade, material and dimensional standards, length, pieces, tonnage, finish, make preference, MTC and inspection requirements. Add fabrication drawings, delivery postcode or port, Incoterm and required date.

Why Choose Ferrite’s IS808 Channels?

Opting for IS808 channels from Ferrite Structural Steels Pvt Ltd means selecting a premium quality product known for its reliability and exceptional performance. These channels are crafted from a structural steel grade that provides optimal strength and durability, ensuring your projects withstand the test of time and challenging conditions. IS808 channels are renowned for their superior weldability and formability, making them ideal for a wide range of applications across construction, manufacturing, and infrastructure projects.

Ferrite Structural Steels is committed to providing not only top-quality products but also customizable solutions tailored to meet your specific requirements. Our expert team is equipped to offer guidance and support throughout your project, ensuring you get the most effective solutions.

For more information on our IS808 channels or to discuss your specific project needs, request a quote today. Our customer service team is ready to provide you with all the necessary details to make an informed decision and ensure your project’s success with Ferrite Structural Steels.
