S275-JR MS Beams

Buy Premium Quality S275-JR MS Beams at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Mild Steel Beams.

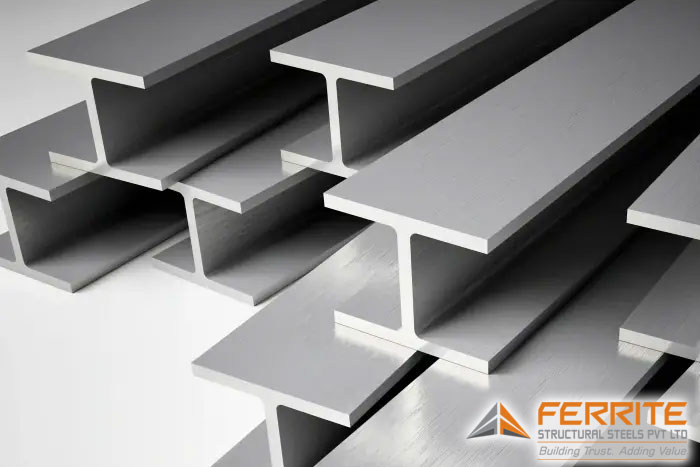

S275-JR MS Beams

S275-JR MS Beams are a popular category of mild steel beams recognized for their notable strength and ductility, categorized under the European standard EN 10025. The designation “S275” refers to the minimum yield strength of 275 MPa, making these beams highly suitable for various structural applications that require a balance between strength and flexibility. The “JR” suffix indicates that the material has undergone a Charpy impact test at room temperature, ensuring it is resilient enough to withstand dynamic and static loads. This makes S275-JR Beams a favored choice across industries such as construction, infrastructure, and automotive, where reliable and durable structural support is paramount.

As a leading manufacturer and supplier, Ferrite Structural Steels Pvt Ltd specializes in providing high-quality S275-JR MS Beams that meet these demanding specifications. Our beams are manufactured using state-of-the-art processes that ensure superior quality and performance. At Ferrite Structural Steels, we are committed to delivering products that not only meet but exceed the rigorous standards expected by our customers, making us a trusted partner in the steel industry for projects that require robust and dependable mild steel solutions.

S275-JR MS Beams Specifications

Product Name S275-JR MS Beams
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Size Range (mm) 75 x 40 mm to 400 x 100 mm (or custom sizes)
Thickness (mm) 3 mm to 25 mm
Finish Hot-rolled, galvanized, or as specified by customer

S275-JR MS Beams Size Chart

Size (mm) Weight per Foot (kg) Weight per Meter (kg)
75 x 40 2.172 7.126
100 x 50 2.925 9.597
125 x 65 3.992 13.098
150 x 75 5.12 16.799
175 x 75 5.973 19.597
200 x 75 6.796 22.298
250 x 80 9.326 30.599
300 x 90 11.063 36.298
400 x 100 15.270 50.300



S275-JR Equivalent Grades

Standard Equivalent Grade
EN (European Norm) S275JR
ASTM (American Society for Testing and Materials) ASTM A36, ASTM A283 Grade C
DIN (Deutsches Institut für Normung – German) St44-2
JIS (Japanese Industrial Standards) SS400
ISO (International Organization for Standardization) ISO 630-2:2011(E) S275B

Chemical Composition of S275-JR Angle

C for nominal thickness in mm Mn P S N Cu
≤ 16 ˃16 ≤ 40 ˃ 40
≤ 0.21 ≤ 0.21 ≤ 0.22 ≤ 1.50 ≤ 0.035 ≤ 0.035 ≤ 0.012 ≤ 0.55

S275-JR Angle Mechanical Properties

Nominal thickness, mm Minimum yield strength, MPa Strength limit, MPa
<3 275 430-580
≥3 ≤ 16 275 410-560
> 16 ≤ 40 265 410-560
> 40 ≤ 63 255 410-560
> 63 ≤ 80 245 410-560
> 80 ≤ 100 235 410-560
> 100 ≤ 150 225 400-540
> 150 ≤ 200 215 380-540
> 200 ≤ 250 205 380-540
> 250 ≤ 400 195 380-540

Key Features and Benefits

  1. High Strength and Durability: With a minimum yield strength of 275 MPa, S275-JR MS Beams provide robust structural support, making them suitable for a wide range of building and engineering projects.
  2. Impact Tested for Safety: The ‘JR’ designation indicates that these beams have undergone Charpy V-notch impact testing at room temperature, ensuring they can withstand dynamic forces and offer added safety and reliability in structures.
  3. Flexibility in Design: The ductility of S275-JR steel allows for more versatile designs in construction, enabling architects and engineers to realize more innovative and complex architectural concepts.
  4. Sustainability: Steel is a highly sustainable material, and S275-JR MS Beams can be recycled at the end of their lifecycle, reducing waste and the environmental impact of construction projects.
  5. Ease of Fabrication: These beams can be easily cut, welded, and assembled, making them a preferred choice for rapid construction and modifications on site, which can significantly reduce construction timelines.

Applications of S275-JR MS Beams

  1. Building Construction: These beams are extensively used in the construction of residential and commercial buildings. Their high strength and ductility make them ideal for frameworks that require durability and safety.
  2. Infrastructure Projects: S275-JR MS Beams are crucial in infrastructure development, including bridges, tunnels, and overpasses. Their ability to withstand heavy loads and resist environmental degradation makes them suitable for large-scale public works.
  3. Transportation Networks: S275-JR MS Beams are used in the construction of airports, railway stations, and supporting structures for roads and highways. Their resilience ensures long-term stability and safety for these heavily trafficked areas.
  4. Architectural Applications: The flexibility and strength of S275-JR MS Beams allow for innovative architectural designs in structures such as sports stadiums, exhibition centers, and large-scale commercial complexes.
  5. Renovation and Reinforcement: These beams are also employed in renovation projects where additional structural support is needed. They are used to reinforce and stabilize existing buildings, ensuring they meet current safety standards.
  6. Agricultural Structures: S275-JR MS Beams are suitable for constructing agricultural facilities such as barns, storage structures, and greenhouses. Their robust nature can withstand diverse environmental conditions, providing long-lasting support.

Why Choose Ferrite’s S275-JR MS Beams?

Choose Ferrite Structural Steels for top-quality S275-JR MS Beams that comply with stringent national standards, ensuring superior structural integrity and performance. Our S275-JR MS Beams are meticulously manufactured to meet your project’s specific requirements, offering unmatched durability and safety. For a personalized quote or to discuss your structural needs with our experts, please contact us. Reach out today and take the first step towards securing reliable and robust structural solutions with Ferrite Structural Steels. Let us help you build a stronger future.

Looking for S275-JR MS Beams? Order Now
