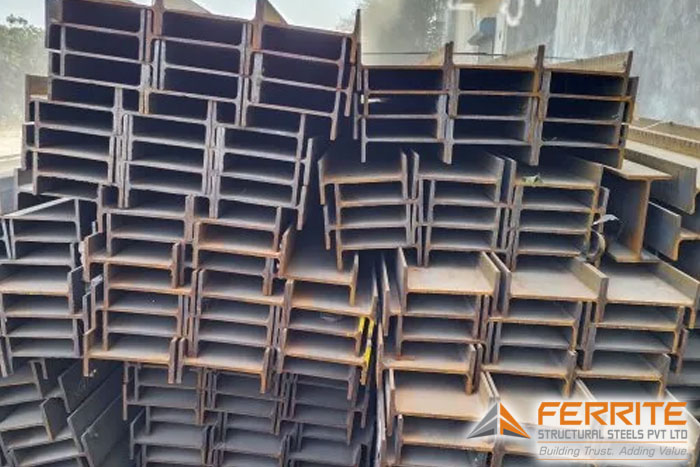

SS310L Beams

Buy Premium Quality SS310L Beams at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Stainless Steel Beams.

SS310L Beams

SS310L Beams are crafted from a high-quality austenitic stainless steel alloy, specifically designed to withstand high temperatures and severe corrosive environments. Known for their superior heat resistance, SS310L beams can operate effectively at temperatures up to 2100°F (1149°C), making them an ideal choice for applications in heat-intensive environments such as furnaces, kilns, and other high-temperature processes. The low carbon content of SS310L not only enhances its weldability but also reduces the risk of corrosion typically associated with carbon precipitation, thus maintaining the structural integrity and aesthetic appeal of the beams over time.

Ferrite Structural Steels Pvt Ltd, as a leading manufacturer and supplier, specializes in providing SS310L Beams that meet the rigorous demands of modern engineering and construction. Our commitment to excellence ensures that each beam we produce is of the highest quality, designed to offer not just superior performance but also reliability and durability. At Ferrite Structural Steels, we leverage advanced manufacturing technologies and a strict adherence to quality standards to deliver products that exceed our clients’ expectations, solidifying our position as a trusted partner in the steel industry. Whether you are dealing with high-temperature industrial applications or complex architectural projects, our SS310L Beams provide the robust and reliable solution you need.

SS310L Beams Specifications

Product Name SS310L Beams
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Stainless Steel
Size Range (mm) 75 x 40 mm to 400 x 100 mm (or custom sizes)
Thickness (mm) 3 mm to 25 mm
Finish Hot-rolled, galvanized, or as specified by customer

SS310L Beam Size Chart

Size (mm) Weight per Foot (kg) Weight per Meter (kg)
75 x 40 2.172 7.126
100 x 50 2.925 9.597
125 x 65 3.992 13.098
150 x 75 5.12 16.799
175 x 75 5.973 19.597
200 x 75 6.796 22.298
250 x 80 9.326 30.599
300 x 90 11.063 36.298
400 x 100 15.270 50.300



SS310L Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 310L 1.4841 S31000 SUS 310 310S24 20Ch25N20S2 – X15CrNi25-20



Chemical Composition of SS310L

Grade C Mn Si P S Cr Mo Ni Fe
SS 310 0.015 max 2.0 max 0.15 max 0.020 max 0.015 max 24.00 – 26.00 0.10 max 19.00 – 21.00 54.7 min



SS310L Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1402 °C (2555 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 40%

Key Features and Benefits

  • Superior Heat Resistance: SS310L is engineered to withstand very high temperatures, making it ideal for use in environments where materials are exposed to extreme heat, such as furnaces, incinerators, and heat exchangers.
  • Corrosion Resistant: Thanks to its high chromium and nickel content, SS310L offers excellent resistance to oxidation and corrosion, particularly in sulfur-bearing environments. This makes it suitable for applications involving corrosive chemicals or exposure to the elements.
  • Robust Structure: The strength and durability of SS310L ensure that structures built with these beams maintain their integrity under stress and over time, even in adverse conditions.
  • Enhanced Weldability: The lower carbon content in SS310L minimizes carbide precipitation during welding, enhancing the overall quality of the welded joints and maintaining the material’s corrosion resistance and mechanical properties after welding.
  • Recyclability: SS310L is 100% recyclable, aligning with sustainable building practices and helping to reduce the overall environmental impact of construction projects.
  • Longevity: The durability and maintenance-free nature of SS310L beams make them a cost-effective solution over the lifespan of a project, as they require less replacement and maintenance.

Applications of SS310L Beams

  1. High-Temperature Industrial Applications: SS310L is ideal for structures within industrial facilities like petrochemical plants, refineries, and power plants, where materials must withstand high temperatures and corrosive gases.
  2. Furnace and Boiler Manufacturing: These beams are commonly used in the construction of furnaces, boilers, and incinerators due to their ability to maintain structural integrity at high temperatures.
  3. Pollution Control Equipment: SS310L is suitable for supporting structures in pollution control systems, including flue-gas desulfurization units and scrubbers, which often deal with acidic and corrosive environments.
  4. Food Processing Equipment: The beams can be used in the construction of food processing equipment where high temperatures are used for cooking, drying, or pasteurization, providing a clean and corrosion-resistant framework that meets stringent hygiene standards.
  5. Architectural and Infrastructure Projects: For architectural applications that require both aesthetics and durability, such as pedestrian bridges or external frameworks exposed to environmental elements, SS310L beams are an excellent choice.
  6. Aerospace and Automotive: The material’s high-temperature tolerance and strength also make it suitable for aerospace and automotive applications where materials must endure extreme operational environments.
FAQs — SS310L Beams

SS310L Beams: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What does SS310L mean for a stainless steel beam?
SS310L Beams refers to a high-chromium and nickel stainless grade associated with elevated-temperature oxidation resistance. It is used in heat-exposed industrial supports, furnaces, boilers, incinerators and process structures. For structural work, the exact section, grade, standard, restraints and connections must follow approved drawings and calculations; a product name does not establish safe capacity.
02
Why is SS310L associated with high-temperature service?
SS310L is associated with elevated-temperature applications because of its high chromium and nickel alloy system and oxidation resistance. A website temperature statement is not a structural design limit. The engineer must assess atmosphere, thermal cycling, stress, creep where relevant and the governing code.
03
Can SS310L beam selection be based on temperature alone?
No. Temperature alone cannot determine an SS310L beam. Atmosphere, oxidation or sulphidation, thermal cycling, section stress, creep where applicable, welding, restraints and the design code must be reviewed. Use approved temperature-dependent material data and project calculations.
04
How is SS310L different from SS304L or SS316L?
SS310L is principally considered for elevated-temperature oxidation resistance; SS304L is widely used for general welded corrosion-resistant fabrication, while SS316L adds improved resistance in many chloride environments. They are not interchangeable and require project-specific material approval.
05
What sizes and thicknesses are listed for SS310L beams?
The page lists 75 x 40 mm to 400 x 100 mm with 3 mm to 25 mm for SS310L Beams. Not every combination is necessarily available in the requested grade, length or finish. Confirm the complete section designation and use the approved section table for unit mass and properties.
06
What operating conditions must be reviewed for SS310L?
Review operating and upset temperature, furnace or process atmosphere, oxidation, carburisation or sulphidation risk, thermal cycling, stresses, creep where relevant, welding and restraints. Final beam design must use temperature-dependent properties and the governing code, not one general maximum-temperature statement.
07
Can a cross-reference grade replace SS310L automatically?
No cross-reference or “equivalent” grade should replace SS310L automatically. Compare chemistry, mechanical properties, product form, thickness limits, delivery condition, corrosion or temperature requirements and the governing standard. Obtain written approval before any substitution.
08
What should an SS310L beam MTC confirm?
The SS310L MTC should identify the material standard, complete grade, heat number, chemistry and required mechanical test results for the supplied thickness and product form. Check traceability to beam markings and any project-specific corrosion, toughness or inspection requirements.
09
What is the current commercial rate for SS310L Beams per kg?
Do not publish a fixed current SS310L Beams price per kg. Stainless alloy inputs, grade, section mass, quantity, length, finish and market date change the rate. Send the exact specification, total tonnage and delivery postcode for a dated quotation and confirm GST, freight and fabrication inclusions.
10
Can SS310L Beams be quoted on a per-tonne basis?
A dated SS310L Beams price per tonne can be requested for a defined requirement. State section, grade, standards, length, quantity, finish, MTC, inspection and destination. Compare quotations on the same weight basis, tax, freight, cutting, packing and documentation terms.
11
What affects the landed cost of SS310L Beams?
The landed cost of SS310L Beams depends on alloy grade, stainless input prices, section mass, size availability, order mix, length, cutting, drilling, finish, testing, inspection, packing and transport. Mixed or uncommon sections can have different conversion and logistics costs from one repetitive bulk size.
12
How is the MOQ confirmed for SS310L Beams?
The page states an MOQ of 1 tonne. Confirm MOQ when an order mixes sizes or grades, asks for special lengths, finishes, third-party inspection or export packing. Provide the piece count and tonnage for each line item so the requirement can be reviewed accurately.
13
How should current availability for SS310L Beams be checked?
Do not assume every SS310L Beams section, grade and length is ready stock. Availability must be checked against the exact specification, quantity and enquiry date. If timing is critical, state the required date and ask the quotation to identify stock, mill or production basis.
14
Is an MTC available for a SS310L Beams order?
State the MTC requirement for SS310L Beams before ordering, including certificate type, heat traceability, grade standard and project format. Check that the document relates to supplied markings and thickness. A generic certificate does not prove compliance with every structural or corrosion requirement.
15
Which documents should accompany SS310L Beams inspection?
Inspection for SS310L Beams should cover identification, section geometry, web and flange thickness, length, straightness, surface condition, quantity, marking and MTC traceability. For third-party inspection, state the agency, stage, hold points, acceptance criteria and required reports.
16
Can SS310L Beams be supplied to a cutting and drilling drawing?
Cutting, drilling or fabrication for SS310L Beams can be reviewed from an approved drawing. Provide cut lengths, hole centres, copes, notches, end plates, weld details, tolerances and piece marks. Structural connections and welding procedures remain subject to engineer and fabricator approval.
17
Can mill, painted or galvanised finish be requested for SS310L Beams?
The live page refers to hot-rolled, galvanised or customer-specified finishes for SS310L Beams. State surface preparation, appearance, coating standard and inspection. For stainless steel, confirm whether coating is truly required and compatible with welding, corrosion design and service exposure.
18
Which applications use SS310L Beams?
SS310L Beams is considered for heat-exposed industrial supports, furnaces, boilers, incinerators and process structures. Suitability depends on section properties, grade, exposure, temperature, span, restraints, loading, connections and fire requirements. The final section and grade must follow approved calculations, drawings, BOQ and project standards.
19
Where can I buy SS310L Beams in Mumbai or nearby states?
Ferrite can review SS310L Beams enquiries for Mumbai, Navi Mumbai, Maharashtra, nearby states, India-wide supply and export requirements. Availability and logistics depend on size and quantity. Provide the delivery postcode or destination port, Incoterm, unloading constraints and required date.
20
What should an India or export SS310L Beams enquiry include?
For a fast SS310L Beams quotation, send the profile, section designation, dimensions, grade, material and dimensional standards, length, pieces, tonnage, finish, make preference, MTC and inspection requirements. Add fabrication drawings, delivery postcode or port, Incoterm and required date where applicable.

Why Choose Ferrite’s SS310L Beams?

Choose Ferrite Structural Steels for your SS310L Beams to ensure your projects benefit from the highest quality materials tailored to withstand extreme conditions. Our SS310L Beams are renowned for their superior heat resistance and exceptional corrosion resistance, making them ideal for a variety of challenging environments, from high-temperature industrial applications to corrosion-prone areas. At Ferrite Structural Steels, we use advanced manufacturing processes and stringent quality control measures to guarantee that every beam we supply meets rigorous standards for durability and performance. Our commitment to excellence and customer satisfaction positions us as a leader in the steel industry, ready to support your specific needs with expert advice and premium materials. Contact us today to discuss your requirements or request a quote, and let Ferrite Structural Steels provide you with the reliable, high-performance SS310L Beams your projects demand.
