UC Columns

Buy Finest Quality UC Columns at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Universal Beams.

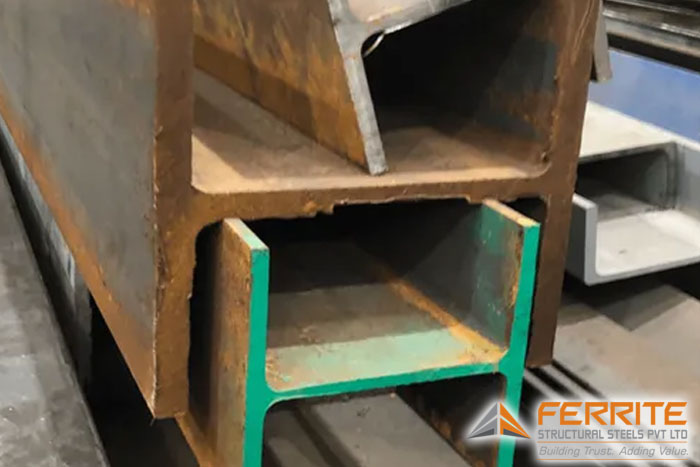

UC Columns

Universal Columns, often abbreviated as UC, are a type of steel beam characterized by their “H” or “I” shape with relatively wider flanges compared to the depth, making them especially suited for bearing vertical loads. They are distinct from Universal Beams (UB), which generally carry horizontal loads and often have a wider span. The design of Universal Columns provides a high level of structural strength and rigidity, making them ideal for use in construction where robust support and stability are crucial, such as in the vertical structural framework of buildings.

One of the key characteristics that differentiate Universal Columns from other steel beams is their geometric profile, which offers excellent resistance against bending and buckling under axial loads. This makes Universal Columns particularly effective for use in multi-storey buildings and other structures where vertical load support and columnar strength are paramount.

At Ferrite Structural Steels Pvt Ltd, we specialize in supplying top-quality Universal Columns, designed to meet the stringent requirements of modern construction. As a major manufacturer and supplier, we ensure that our Universal Columns are produced with precision and adhere to the highest standards of quality and performance. Our commitment to excellence and customer satisfaction makes us a trusted partner in the construction industry, providing reliable solutions that architects and builders can depend on for their most critical projects.

UC Column Specifications

Product Name UC Column
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Stainless Steel and Mild Steel
Width (mm) 50 mm to 90 mm
Finish Hot-rolled, galvanized, or as specified by customer

UC Columns Size Chart

Size Weight Depth Width Web Thickness Flange Thickness
(mm) (kg/m) (mm) (mm) (mm) (mm)
152 x 152 23 152 152 6.1 6.8
152 x 152 30 158 153 6.6 9.4
152 x 152 37 162 155 8.1 11.5
203 x 203 46 203 203 7.3 11
203 x 203 52 206 204 8 12.5
203 x 203 60 210 205 9.3 14.2
203 x 203 71 216 206 10.3 17.3
203 x 203 86 222 209 13 20.5
254 x 254 73 254 254 8.6 14.2
254 x 254 89 260 256 10.5 17.3
254 x 254 107 267 258 13 20.5
254 x 254 132 276 261 15.6 25.3
254 x 254 167 289 265 19.2 31.7
305 x 305 97 308 305 9.9 15.4
305 x 305 118 315 307 11.9 18.7
305 x 305 137 320 309 13.8 21.7
305 x 305 158 327 210 15.7 25
305 x 305 198 339 314 19.2 31.4
305 x 305 240 352 317 23 37.7
305 x 305 283 365 321 26.9 44.1
356 x 368 129 355 368 10.7 17.5
356 x 368 153 362 370 12.6 20.7
356 x 368 177 368 372 14.5 23.8
356 x 368 202 374 374 16.8 27
356 x 406 235 381 395 18.5 30.2
356 x 406 287 393 399 22.6 36.5
356 x 406 340 406 403 26.5 42.9
356 x 406 393 419 407 30.6 49.2
356 x 406 467 436 412 35.9 58
356 x 406 551 455 418 42 67.5
356 x 406 634 474 424 47.6 77

Key Features and Benefits

  1. Structural Integrity: Universal Columns are designed with a symmetrical ‘I’ or ‘H’ shape, which provides substantial resistance to bending and buckling under load. This shape distributes the weight evenly across the entire section, enhancing structural stability.
  2. High Load-bearing Capacity: The design of UCs allows them to support higher loads compared to other types of beams. This capability is due to their thicker flanges and webs, which contribute significantly to their strength and durability.
  3. Versatility in Design: Universal Columns can be used in a variety of structural applications. They can be fabricated to meet specific lengths and sizes, and their symmetrical design simplifies the connection and assembly process in construction.
  4. Durability: Made from high-strength steel, Universal Columns are able to withstand severe weather conditions and environmental impacts, making them suitable for both indoor and outdoor use.
  5. Economical: Although robust, the manufacturing process of UCs is streamlined enough to keep them cost-effective, providing excellent value for the level of strength and durability they offer.
  6. Sustainability: Steel is one of the most recycled materials in the world, and Universal Columns contribute to sustainable building practices. Their long life and recyclability help minimize environmental impact.
  7. Low Maintenance: Once installed, Universal Columns require minimal maintenance due to their resistance to corrosion and other degradative effects, which is particularly advantageous in harsh environments or for structures like bridges and towers.

Applications of UC Columns

  1. Building Construction: Universal Columns are commonly used in the construction of residential, commercial, and industrial buildings. They provide essential vertical support, particularly in the skeletal framework of skyscrapers and other high-rise structures, where strength and stability are paramount.
  2. Support Structures: In industrial facilities, Universal Columns are used to construct support frameworks for heavy machinery, large equipment, and overhead crane systems. Their robustness ensures stability and safety in environments subjected to heavy industrial use.
  3. Foundations and Pylons: UCs are used in the construction of foundations for large structures, including towers and pylons. Their strength and resistance to compression make them suitable for supporting substantial overhead loads.
  4. Architectural Features: Due to their aesthetic appeal, Universal Columns are also employed in architectural designs where structural elements are exposed as part of the design feature. They contribute both functionality and a sleek industrial look to modern architecture.
  5. Stadiums and Arenas: For large venues such as stadiums and arenas, UCs provide the necessary structural integrity for grandstands and roofs. They enable large, clear spans that are essential for unobstructed views and the movement of large crowds.
  6. Agricultural Structures: In agricultural settings, UCs are used to construct barns, storage facilities, and large greenhouses. Their durability and resistance to environmental conditions make them well-suited for such applications.
  7. Specialty Constructions: Universal Columns are also utilized in specialty constructions like transmission towers, signposts, and other tall structures requiring high strength and minimal sway.
FAQs — UC Column

UC Column: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What is a UC column?
UC Columns refers to universal column sections with H- or I-shaped geometry and comparatively broad flanges. It is used in vertical building frames, industrial support structures, towers, foundations and other approved column applications. The product name identifies a section family rather than a safe load rating; final selection must follow the approved drawing, BOQ, project standard and responsible engineer’s calculations.
02
What does UC mean in structural steel procurement?
UC means Universal Column. It is a profile designation, not a material grade, strength class or guarantee that the member is suitable for a particular axial load. A complete order must also state the exact UC size and mass variant, grade, standards, length, finish and documentation.
03
Which UC column sizes and weights are shown in the chart?
The live page shows 152 x 152 mm to 356 x 406 mm in the published chart, with 23 kg/m to 634 kg/m in the published chart. These are catalogue entries, not confirmation of ready stock or capacity. Quote the complete designation and mass variant, dimensional and grade standards, length and quantity, and verify the selected row against approved documents.
04
How is a UC column different from a universal beam or WPB section?
UC Columns has its own dimensional series, mass options and section properties. A similar overall depth or width in another family may have different web and flange thicknesses, radii and performance. Compare recognised tables and approved calculations rather than treating WPB, UC and universal beam labels as equivalents.
05
Why can a 203 x 203 or 305 x 305 UC have different weights?
The same nominal depth-and-width label can cover different section variants with different actual dimensions, web thickness, flange thickness and kg/m. Weight therefore forms part of the section identity. State the exact mass variant in the BOQ and do not accept a lighter or heavier option without design approval.
06
What do depth, width, web thickness and flange thickness mean?
Depth is the overall section height, width is the flange breadth, web thickness measures the central vertical plate and flange thickness measures the horizontal elements. These values influence section properties but are not stand-alone capacity ratings. Check them against the applicable dimensional table and approved design.
07
How is theoretical UC column order weight calculated?
Theoretical order weight equals published kg/m multiplied by ordered length in metres and number of pieces. Calculate separate line items for every size and mass variant. Confirm whether quotation, freight and invoicing use theoretical or actual weight and include only approved cutting allowances.
08
Can a UC column size be recommended without a structural design?
No. UC Columns cannot be selected or substituted from building height, axial load, nominal size, flange width or kg/m alone. Design must check load combinations, effective length, buckling about both axes, bending, deflection, restraints, connections, base details, fire requirements and the governing code. Written engineer approval is required.
09
What is the current commercial rate for UC Columns per kg?
Do not publish a fixed current UC Columns price per kg. The rate changes with grade, section mass, quantity, length, finish, market date and supply route. Send the exact designation, total tonnage and delivery postcode for a dated quotation, then confirm GST, freight and fabrication inclusions.
10
Can UC Columns be purchased on a per-tonne basis?
A current UC Columns price per tonne can be quoted for a defined requirement. State the exact section and kg/m variant, grade and standards, length, quantity, finish, MTC, inspection and destination. Compare offers on the same weight basis and verify tax, freight, cutting, packing and documentation terms.
11
What affects the delivered price of UC Columns?
The landed cost of UC Columns depends on grade, exact mass variant, availability, order mix, tonnage, length, cutting, drilling, coating, testing, inspection, packing and transport. Mixed or uncommon sections can price differently from one repetitive bulk size, so compare quotations line by line.
12
What MOQ applies when buying UC Columns?
The page states a minimum order quantity of 1 tonne. Confirm how MOQ applies when an enquiry mixes sizes, mass variants, grades, special lengths, finishes or inspection. Provide the piece count and calculated tonnage for every line item so the requirement can be reviewed accurately.
13
Should buyers assume every UC Columns designation is in stock?
Do not assume every UC Columns size, kg/m variant, grade and length is ready stock. Availability should be confirmed against the exact specification, quantity and enquiry date. If timing matters, state the required date and ask whether the offer is based on stock, incoming material or reviewed supply.
14
Is an MTC available for a UC Columns order?
Request the MTC for UC Columns at the enquiry stage, stating certificate type, grade standard, heat traceability and project format. Check that it matches the supplied markings, section, mass variant and product form. A generic certificate does not establish compliance with every structural or coating requirement.
15
Which documents should accompany UC Columns inspection?
Inspection for UC Columns should cover identification, depth, width, web and flange thickness, length, straightness, surface condition, quantity, marking and MTC traceability. For third-party inspection, state the agency, stage, hold points, acceptance criteria and reports before ordering.
16
Can UC Columns be supplied to approved cutting and drilling drawings?
Cutting, drilling or fabrication of UC Columns can be reviewed against an approved drawing. Provide cut lengths, hole centres, copes, notches, base or end plates, weld details, tolerances and piece marks. Connection design, welding procedures and structural modifications remain subject to engineer and fabricator approval.
17
Can a specified surface finish or coating be requested for UC Columns?
The live page lists hot-rolled, galvanised or customer-specified for UC Columns. State the surface condition, coating or galvanising standard, preparation, appearance and inspection. Coating suitability depends on the base material, fabrication sequence and exposure; galvanised steel is corrosion-resistant rather than permanently rust-proof.
18
Which applications use UC Columns?
UC Columns are considered for vertical building frames, industrial support structures, towers, foundations and other approved column applications. Suitability depends on exact section properties, material grade, exposure, effective length, restraints, loads, connections, base details and fire requirements. Final use must follow approved calculations, drawings, BOQ and project standards.
19
Where can I buy UC Columns in Mumbai or nearby states?
Ferrite can review UC Columns requirements for Mumbai, Navi Mumbai, Maharashtra, nearby states, India-wide supply and export enquiries. Availability and logistics depend on section and quantity. Provide the delivery postcode or destination port, Incoterm, unloading constraints and required date.
20
What should an India or export UC Columns enquiry include?
For a fast UC Columns quotation, send the exact profile, nominal size and kg/m variant, dimensions, material grade, dimensional and grade standards, length, pieces, tonnage, finish, make preference, MTC and inspection requirements. Add fabrication drawings, delivery postcode or port, Incoterm and required date.

Why Choose Ferrite’s UC Columns?

Choose Ferrite Structural Steels for your Universal Columns to ensure you’re working with a provider that delivers unmatched quality and reliability. Our Universal Columns are manufactured using state-of-the-art technology and rigorous quality control processes to meet the highest industry standards. Renowned for their strength, durability, and versatility, our Universal Columns are the ideal choice for a wide range of construction projects, from commercial buildings and industrial infrastructures to elegant architectural applications. At Ferrite Structural Steels, we are committed to providing tailored solutions that cater to the specific needs of your project, supported by expert advice and customer service that exceeds expectations. Trust us to enhance the structural integrity and aesthetic value of your constructions. Contact us today to discuss your requirements and request a quote, and let us show you why Ferrite Structural Steels is the premier choice for Universal Columns.
