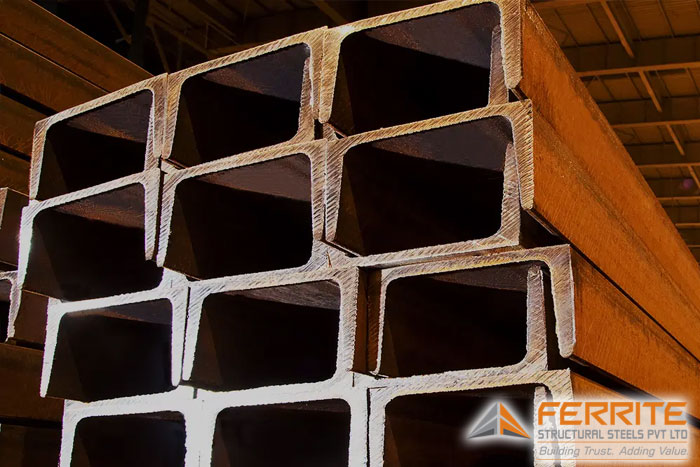

WPB Beams

Buy Finest Quality WPB Beams at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Universal Beams.

WPB beams, or Wide Parallel Flange Beams, are a type of structural steel beam characterized by their broad flanges and parallel surfaces. Unlike traditional I-beams where the flanges taper, WPB beams have flanges that are thicker and wider, providing a greater surface area for connections. This structural configuration enhances their stability and capacity to carry heavier loads, making WPB beams an excellent choice for applications requiring robust support.

Key characteristics that differentiate WPB beams from other types of steel beams include their superior load-bearing capabilities and their resistance to bending and shear forces. The unique design of the flanges not only increases the beam’s strength but also simplifies the construction process by allowing for more straightforward attachment of fixtures and fittings.

At Ferrite Structural Steels Pvt Ltd, we pride ourselves on providing high-quality WPB beams that meet rigorous industry standards. As a major manufacturer and supplier, our commitment to excellence ensures that each beam is crafted with precision, using only the finest materials. Our WPB beams are trusted by construction professionals worldwide for their durability and performance, making Ferrite Structural Steels a preferred partner in building and structural projects. Whether you are undertaking a major infrastructure project or a commercial construction, Ferrite Structural Steels provides the reliable products and expert service you need to succeed.

WPB Beam Specifications

Product Name	WPB Beam
Brand	Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity	1 Ton
Material	Stainless Steel and Mild Steel
Finish	Hot-rolled, galvanized, or as specified by customer

WPB Beams Size Chart

Beams	Mass
(IS 12778)	(kg/m)
WPB 200×200	42.26
WPB 200×200	61.3
WPB 220×220	50.51
WPB 220×220	71.47
WPB 240×240	60.32
WPB 240×240	83.2
WPB 260×260	68.16
WPB 260×260	92.99
WPB 280×280	76.36
WPB 280×280	103.13
WPB 300×300	88.34
	100.84
	117.04
	237.92
WPB 320×300	97.64
WPB 320×300	126.66
WPB 340×300	104.79
WPB 340×300	134.16
WPB 360×300	112.07
WPB 360×300	141.81
WPB 400×300	121.81
WPB 400×300	155.26
WPB 45×300	139.76
WPB 45×300	171.12

Key Features and Benefits

Wide Flanges: WPB beams feature wide and parallel flanges, which significantly enhance their stability and load-bearing capacity. This design minimizes the flex and twist that can occur under heavy loads.
Uniform Thickness: The uniform thickness across the flanges and web of WPB beams not only simplifies connections and fabrication but also enhances their overall structural integrity.
High Strength-to-Weight Ratio: Despite their robustness, WPB beams are designed to maximize strength without unnecessary weight, making them efficient for a variety of structural needs.
Enhanced Structural Support: WPB beams are capable of supporting larger loads over wider spans than traditional beams, reducing the need for intermediate columns and thus offering greater design flexibility in building layouts.
Durability: Made from high-strength steel, WPB beams are built to last. They are resistant to wear and tear, making them a durable choice for both indoor and outdoor structures.
Cost-Effective: By reducing the number of beams and supports needed in a structure, WPB beams can lead to significant cost savings in terms of materials, labor, and time.
Aesthetic Appeal: The sleek, modern look of WPB beams makes them an attractive option for architectural designs where exposed steel elements are a feature of the aesthetic.
Sustainability: Steel beams, including WPB beams, are fully recyclable, which enhances the environmental sustainability of projects. Using recyclable materials helps to reduce the construction industry’s carbon footprint.

Applications of WPB Beams

Commercial Buildings: WPB beams are extensively used in the construction of commercial structures such as office buildings, shopping malls, and exhibition centers. Their ability to support large spans makes them ideal for creating expansive, open spaces that are free from obstructions.
Infrastructure Projects: Their robustness makes WPB beams suitable for infrastructure applications, including bridges, overpasses, and platforms. They are particularly valued for their strength and durability in supporting heavy loads and withstanding environmental stresses.
Architectural Projects: WPB beams are often chosen for architectural features where structural elements are exposed as part of the design. Their clean and aesthetic appearance allows them to seamlessly integrate into modern architectural concepts, enhancing the overall visual impact of the structure.
Residential Construction: In high-end residential construction, WPB beams can be used to create large, open living spaces that require minimal columns or supports, providing both structural integrity and aesthetic appeal.
Parking Structures: WPB beams are employed in the construction of multi-story parking garages, where their ability to handle significant loads across wide spans allows for more efficient use of space and easier vehicle maneuverability.
Educational Facilities: Schools and universities utilize WPB beams in the construction of large auditoriums, gymnasiums, and lecture halls, where wide, unobstructed spaces are needed for functionality and aesthetic purposes.

Why Choose Ferrite’s WPB Beams?

Choose Ferrite Structural Steels for your WPB beams to ensure that your projects benefit from top-quality materials known for their strength and durability. Our WPB beams are crafted using advanced manufacturing processes that adhere to strict quality standards, ensuring each beam offers superior performance and reliability. Recognized for their wide flanges and parallel geometry, our beams provide enhanced load-bearing capacities and stability, making them ideal for a wide range of applications, from commercial and industrial structures to elegant architectural projects. At Ferrite Structural Steels, we are committed to innovation and customer satisfaction, offering tailored solutions that meet the unique demands of each construction project. Trust us to supply WPB beams that not only meet but exceed your expectations in terms of quality and performance. Contact us today to discuss your specific needs and request a quote, and let us help you build with confidence and efficiency.
