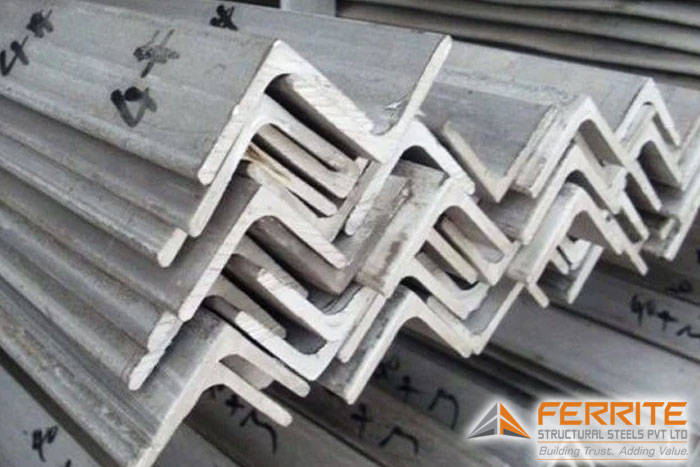

316 Stainless Steel Angle

Buy Premium 316 Stainless Steel Angles at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Angles.

316 Stainless Steel Angles are crafted from an exceptionally robust grade of stainless steel, highly prized for its superior corrosion resistance, particularly against chlorides and other industrial solvents. This makes SS316 Angles an ideal choice for harsher environments where greater resistance is needed, such as in marine, chemical processing, and pharmaceutical applications. The inclusion of molybdenum enhances its corrosion resistance further, which is a significant upgrade over the more common 304 stainless steel. The durability and resistance of 316 stainless steel ensure that structures and components maintain their integrity over a long period, even under strenuous conditions.

At Ferrite Structural Steels Pvt Ltd, we are committed to providing only the highest quality 316 Stainless Steel Angles, known for their longevity and reliability. Our company stands out in the steel industry for our comprehensive approach to serving our clients, offering a blend of advanced manufacturing techniques and personalized customer service. Whether you are tackling a complex industrial project or need reliable materials for coastal construction, Ferrite Structural Steels Pvt Ltd delivers products that exceed expectations in both performance and durability. Contact us to learn how our 316 stainless steel solutions can contribute to the success of your project.

316 Stainless Steel Angle Specification

Product Name 316 Stainless Steel Angles
Brand Ferrite Structural Steels Pvt Ltd.
Minimum Order Quantity 1 Ton
Material Stainless Steel
Available Sizes 20 x 20 x 3 mm to 200 x 200 x 12 mm
Thickness From 3 mm to 20 mm
Length 6 m, 12 m, or customized lengths
Finish Painted, galvanized, or standard mill finish
Applications Building frameworks, infrastructure projects, supports in manufacturing, architectural elements

316 Stainless Steel Angle Size Chart

Size in mm Weight Per Meter in Kg. Size in mm Weight Per Meter in Kg.
20 x 20 x 3 0.9 75 x 75 x 10 11.00
25 x 25 x 3 1.1 90 x 90 x 8 10.8
25 x 25 x 5 1.8 90 x 90 x 10 13.4
30 x 30 x 3 1.4 100 x 100 x 6 9.2
35 x 35 x 5 2.6 100 x 100 x 8 12.1
40 x 40 x 3 1.8 100 x 100 x 10 14.9
40 x 40 x 5 3.0 100 x 100 x 12 17.7
40 x 40 x 6 3.5 110 x 110 x 8 13.4
50 x 50 x 5 3.8 110 x 110 x 10 16.5
50 x 50 x 6 4.5 130 x 130 x 10 19.7
65 x 65 x 6 5.8 130 x 130 x 12 23.4
65 x 65 x 8 7.7 150 x 150 x 10 22.8
65 x 65 x 10 9.4 150 x 150 x 12 27.2
75 x 75 x 6 6.8 200 x 200 x 12 36.6
75 x 75 x 8 8.9



SS316 Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS AFNOR BS GOST EN
SS 316 1.4401 S31600 SUS 316 Z7CND17‐11‐02 316S31 / 316S33 – X5CrNiMo17-12-2 / X3CrNiMo17-13-3



Chemical Composition of 316 Stainless Steel Angle

Grade C Mn Si P S Cr Mo Ni Fe
316 0.08 max 2 max 1.00 max 0.045 max 0.030 max 16.00 – 18.00 2 – 3 11 – 14 67.845 min



316 Stainless Steel Angle Mechanical Properties

Properties Metric Imperial
Tensile strength (transverse at room temperature) 685 MPa 99400 psi
Tensile strength (longitudinal at room temperature) 696 MPa 101000 psi
Yield strength (transverse at room temperature) 292 MPa 42400 psi
Yield strength (longitudinal at room temperature) 301 MPa 43700 psi
Compressive yield strength 365 MPa 52900 psi
Elastic modulus 197 GPa 28573 ksi
Poisson’s ratio 0.27-0.30 0.27-0.30
Elongation at break (longitudinal at room temperature) 56% 56%
Elongation at break (transverse at room temperature) 62.50% 62.50%
Hardness, Rockwell B (transverse at room temperature) 85 85
Hardness, Rockwell B (longitudinal at room temperature) 85 85

Major Features and Benefits

  1. Superior Corrosion Resistance: 316 stainless steel includes molybdenum, which significantly enhances its corrosion resistance, especially against chlorides and other industrial chemicals. This makes it ideal for marine and chemical environments where higher corrosion resistance is critical.
  2. High Temperature Tolerance: 316 stainless steel performs well at higher temperatures, maintaining its strength and structural integrity even under thermal stress.
  3. Durability: This grade is known for its robust nature, resisting wear and tear in harsh environments, which helps in extending the lifespan of projects that incorporate it.
  4. Hygienic Properties: The non-porous surface prevents the accumulation of bacteria and other contaminants, making it suitable for sanitary environments like food processing and medical facilities.
  5. Longevity: The enhanced corrosion resistance and durability ensure that structures using 316 stainless steel angles last longer, reducing the frequency and cost of maintenance and replacements.
  6. Safety and Compliance: 316 stainless steel is safe for use in environments where hygiene is paramount, such as in kitchens, hospitals, and food processing plants, complying with strict industry standards for cleanliness.
  7. Environmental Sustainability: Like other stainless steels, 316 is 100% recyclable, which supports environmental sustainability efforts by minimizing waste.

Applications of SS316 Angles

Marine and Coastal Applications

  • Boat Frames and Components: 316 stainless steel’s resistance to saltwater makes it ideal for constructing boat frames and marine hardware.
  • Coastal Infrastructure: Used in piers, wharfs, and boardwalks, where exposure to salt air and water is constant, ensuring long-term durability and resistance to corrosion.

Chemical Processing Industry

  • Tanks and Vessels: Suitable for chemical storage tanks and vessels due to its ability to withstand harsh chemicals without corroding.
  • Support Structures: Used in the construction of support frames and structures within chemical plants that are exposed to corrosive substances.

Medical and Pharmaceutical

  • Medical Equipment: Utilized in the production of medical devices and equipment that require stringent hygiene standards and resistance to corrosion.
  • Pharmaceutical Facilities: In facilities where cleanliness and non-reactivity are crucial, 316 stainless steel is used for constructing laboratory benches, equipment stands, and other structural components.

Architecture and Construction

  • Building Facades and Structural Framing: Employed in the architectural sector for facade cladding, window frames, and structural supports in buildings.
  • Decorative Elements: Due to its aesthetic appeal, it is often used for decorative trims, railings, and other architectural details.

Energy Sector

  • Oil and Gas Infrastructure: Utilized in offshore rigs and refinery components due to its high resistance to the corrosive environments found in the oil and gas industry.
  • Renewable Energy Structures: Forms part of the structures in renewable energy installations like solar panel frames and wind turbine components, where durability and resistance to environmental factors are key.

General Manufacturing

  • Industrial Machinery and Frameworks: 316 stainless steel is used in manufacturing industrial machinery and structural frameworks that require strength and resistance to wear and tear.
FAQs — 316 Stainless Steel Angle

316 Stainless Steel Angle: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What is a 316 stainless steel angle?
316 Stainless Steel Angle is an L-shaped structural or fabrication section made in grade 316. It is selected for coastal, chemical-processing, food, pharmaceutical and corrosion-sensitive supports. The section must still be chosen from the approved drawing or BOQ; the product name alone does not establish load capacity, section modulus or suitability for a particular structure.
02
Why does 316 angle resist chloride environments better than 304?
The molybdenum in 316 generally improves resistance to chloride-induced pitting compared with 304. Performance still depends on chloride level, temperature, crevices, surface finish and maintenance, so 316 is not universally suitable for every marine or chemical environment. Confirm the grade through a material-selection review for the actual service conditions.
03
What sizes are listed for 316 stainless steel angles?
The live page lists 20 x 20 x 3 mm to 200 x 200 x 12 mm for 316 Stainless Steel Angle. Size is normally written as leg dimension x leg dimension x thickness; unequal angles must show the long and short legs in the correct order. Confirm the exact combination, rolling or fabrication route, quantity and tolerance requirement at the enquiry stage.
04
What thickness and length options are stated for 316 angle?
The page states 6 metres, 12 metres, or a reviewed customised length. Length affects handling, transport, cutting allowance and total weight. State whether the order requires random, fixed or exact cut lengths, together with the permitted length tolerance and any cutting drawing. Availability should be confirmed before the BOQ is finalised.
05
Is 316 stainless steel angle completely rust-proof?
316 Stainless Steel Angle is corrosion-resistant, not permanently rust-proof. Grade choice must account for chlorides, temperature, chemicals, crevices, surface contamination and cleaning. Molybdenum-bearing composition for improved resistance in chloride-bearing environments. For coastal or process service, obtain material approval against the actual environment and maintenance plan.
06
Should 316 or 316L be selected for a welded coastal structure?
For welded coastal work, 316L is often considered because its low-carbon designation reduces sensitisation concerns, but this does not make it an automatic choice. The project engineer must review exposure, section thickness, welding procedure, post-weld condition and governing standard, then approve either 316 or 316L in writing.
07
Which standard should be specified when ordering 316 angle?
Specify the complete 316 material designation, the material standard, dimensional or section standard, size, thickness, length and required tolerance. A grade standard controls chemistry and mechanical requirements, while a dimensional standard controls geometry and rolling tolerances. The purchase order should identify both where the project requires them.
08
Can 316 angle be substituted with another grade described as equivalent?
No. An equivalence table is a cross-reference aid, not automatic approval to substitute material. For 316 Stainless Steel Angle, compare the complete chemistry, mechanical properties, heat treatment or supply condition, product standard and dimensional requirements. Any grade change must be accepted by the responsible engineer, consultant or end user before supply.
09
How is 316 stainless steel angle weight per metre verified?
Use the published size or weight chart as an initial reference, then verify the theoretical or actual mass for the exact section and applicable standard. Weight per metre changes with both leg dimensions, thickness, corner radii and permissible rolling tolerances. For commercial settlement, confirm the agreed basis of weight in the supplier quotation.
10
What is the 316 stainless steel angle price per kg?
There is no reliable fixed current 316 Stainless Steel Angle price per kg because alloy surcharges, section size, quantity, finish, length and market date change the quotation. Send the exact section, grade, standard, total quantity, documentation and delivery postcode for a dated price. Also confirm whether GST, freight, cutting and inspection are included.
11
Can Ferrite quote 316 angle by the tonne?
Yes, a dated 316 Stainless Steel Angle price per tonne can be requested for a defined requirement. Quote requests should state the size, thickness, length, grade, standard, total tonnage, finish, MTC and delivery location. Compare suppliers on the same tax, freight, weight and documentation basis rather than comparing only the headline tonne rate.
12
Why is 316 angle pricing different from 304 angle pricing?
316 Stainless Steel Angle pricing is affected by stainless alloy input costs, grade, section mass, size availability, order quantity, length, finish, cutting, testing, inspection, packing and destination. A small mixed-size order may have a different conversion and logistics cost from one repetitive bulk size. Request dated, like-for-like commercial terms.
13
What is the MOQ for 316 stainless steel angles?
The page states a minimum order quantity of 1 tonne. MOQ may need confirmation where the order mixes sizes, asks for uncommon lengths, special finishes, inspection or export packing. Send the piece count and total tonnage by size so the commercially workable quantity can be reviewed accurately.
14
Is every 316 angle size available from stock?
Do not assume every 316 Stainless Steel Angle size, thickness, grade and length is available immediately. Availability should be confirmed for the exact specification and quantity on the enquiry date. If timing is critical, include the required delivery date and ask the quotation to identify stock, mill supply or production basis clearly.
15
Can 316 angles be supplied with an MTC?
An MTC requirement should be stated when requesting 316 Stainless Steel Angle. Specify the required certificate type, heat or batch traceability and any project-specific format before ordering. The supplied documentation should be checked against the purchase order; do not assume that a generic certificate proves compliance with every project standard.
16
What inspection documents matter for corrosion-sensitive 316 angle work?
Inspection should cover section dimensions, thickness, length, straightness, surface condition, marking and quantity against the purchase order. For 316 Stainless Steel Angle, also verify grade identification and traceability to the requested MTC. If third-party inspection is required, name the agency, inspection stage, acceptance criteria and document set in the enquiry.
17
Can 316 stainless steel angle be cut, drilled or welded?
316 Stainless Steel Angle can be considered for welded fabrication, with the grade selected for molybdenum-bearing composition for improved resistance in chloride-bearing environments. State the welding process, filler requirement, joint detail, service temperature, post-weld treatment and applicable procedure specification. Welding qualification and final acceptance remain the responsibility of the fabricator and project engineer.
18
What industries use 316 stainless steel angles?
Common buyer applications include coastal, chemical-processing, food, pharmaceutical and corrosion-sensitive supports. Suitability depends on grade, section properties, exposure, temperature, connection design and maintenance. For load-bearing work, the final angle size and grade must follow approved calculations, drawings, BOQ and the governing project standard.
19
Where can I source 316 stainless steel angle in Mumbai or Navi Mumbai?
Buyers searching for a 316 Stainless Steel Angle supplier in Mumbai, Navi Mumbai or Maharashtra can send the full requirement to Ferrite for review. India-wide or export supply should be checked against quantity and logistics. Include the delivery postcode or destination port, unloading constraints, required date and commercial delivery term.
20
What details are required for an India or export 316 angle quotation?
For a fast 316 Stainless Steel Angle quotation, provide profile, leg dimensions, thickness, grade, standard, length, piece quantity, total tonnage, finish, make preference, MTC and inspection requirements. Add fabrication drawings, delivery postcode or destination port, Incoterm and required date where applicable. This prevents price comparisons based on incomplete or different specifications.

Why Choose Ferrite’s 316 Stainless Steel Angles?

Choosing Ferrite Structural Steels Pvt Ltd for your 316 Stainless Steel Angles guarantees you are selecting one of the most resilient and reliable materials available on the market. Our 316 stainless steel angles are renowned for their superior corrosion resistance, particularly in marine and chemically aggressive environments, making them the ideal choice for projects where longevity and durability are paramount. This grade of stainless steel is also highly appreciated for its strength and aesthetic appeal, ensuring that it meets both the functional and visual requirements of your projects.

At Ferrite Structural Steels, we pride ourselves on our rigorous quality standards and our commitment to customer satisfaction, providing you not only with a premium product but also with comprehensive support throughout your project. We offer a range of sizes and can also cater to custom specifications to perfectly align with your needs. Choose Ferrite Structural Steels for your 316 Stainless Steel Angles and take advantage of our expertise and dedication to quality. For more information or to request a custom quote, please contact us today.

Looking for 316 Stainless Steel Angle? Order Now
