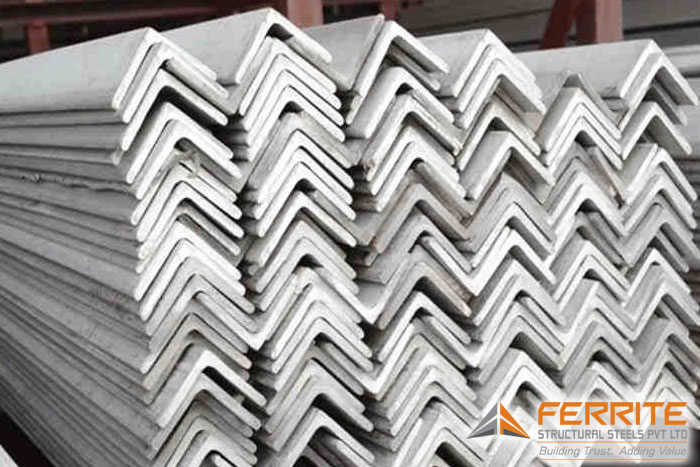

Stainless Steel Angle

Buy Premium Quality Stainless Steel Angles at Ferrite Structural Steels Pvt Ltd. – India’s Leading Manufacturer, Supplier, Exporter and Distributor of Steel Angles.

Stainless steel angles are a cornerstone in modern construction and manufacturing, prized for their strength, resistance to corrosion, and versatility. These structural elements are shaped in an L or V form, making SS angles ideal for reinforcing, framing, and bracing across various applications. Industries such as construction, automotive, aerospace, and shipbuilding rely on stainless steel angles for critical structural integrity and durability.

At Ferrite Structural Steels Pvt Ltd, we distinguish ourselves as a premier supplier of stainless steel structural angles by focusing on superior quality and customer satisfaction. We offer premium stainless steel angles for corrosion-resistant construction needs. Our products meet stringent quality standards and are tailored to meet the diverse needs of our global clientele. With our commitment to innovation and excellence, we provide stainless steel angles that are not only robust and long-lasting but also feature enhanced aesthetic appeal and machining capabilities. Trust Ferrite Structural Steels for your next project and experience the quality that sets us apart in the competitive steel industry.

Different Types of Stainless Steel Angles

Stainless Steel Equal Angle

The Stainless-Steel Equal Angle features legs of equal length and is the most commonly used angle type in construction and fabrication. Its symmetrical configuration makes it ideal for general structural support such as beams, braces, and frames.

Stainless Steel Unequal Angle

This type of angle comes with legs of different lengths, providing unique properties suited for specific applications where unequal support might be advantageous. The varying leg lengths allow for greater flexibility in applications requiring more strength on one side of the angle.

Stainless Steel Angle Grades & Standards Compliance

304 Stainless Steel Angle

304 stainless steel is the most commonly used grade, known for its excellent formability and corrosion resistance. It withstands most oxidizing acids and is durable in a wide variety of industrial, architectural, and transportation applications.

304L Stainless Steel Angle

Similar to 304, but with a lower carbon content to increase weldability. The decreased carbon level helps reduce carbide precipitation due to welding, making it ideal for welded sections in high-corrosion environments.

316 Stainless Steel Angle

Known for its superior corrosion resistance, 316 stainless steel is an excellent choice for environments exposed to harsh chemicals or saltwater. It contains molybdenum which increases corrosion resistance against chlorides and other industrial solvents.

316L Stainless Steel Angle

This is the low carbon version of 316 stainless steel. It has excellent weldability and minimized carbide precipitation during welding, making it suitable for high-corrosion environments where welding is required.

SS310L Angle

SS310L is a highly alloyed austenitic stainless steel designed for high-temperature applications. The high chromium and nickel content give it excellent oxidation resistance as well as high strength at high temperatures.

Key Features and Benefits

Durability and Strength

  • Feature: Made from high-grade stainless steel, these angles are built to withstand extreme pressure, impact, and load without deforming.
  • Benefit: Their robustness ensures longevity and reliability in structures, reducing the need for frequent replacements and maintenance.

Corrosion Resistance

  • Feature: Stainless steel inherently resists oxidation and corrosion, even in harsh environments.
  • Benefit: This makes it ideal for outdoor applications and in industries like marine, chemical processing, and anywhere moisture or chemicals are prevalent.

High Heat Resistance

  • Feature: Certain grades of stainless steel angles can withstand high temperatures without losing integrity.
  • Benefit: Essential for applications in furnaces, boilers, and other high-temperature environments, ensuring structural stability under thermal stress.

Hygienic and Non-Porous

  • Feature: The non-porous surface of stainless steel does not harbor bacteria or pathogens.
  • Benefit: Makes it a preferred choice for applications requiring strict hygiene, such as in food processing, kitchens, and medical facilities.

Easy Fabrication

  • Feature: Despite its durability, stainless steel angles can be easily cut, welded, formed, machined, and fabricated to fit various specifications.
  • Benefit: Flexibility in custom designs and applications, enabling complex constructions and assemblies.

Cost-Effectiveness

  • Feature: While upfront costs might be higher, the long life span and minimal maintenance requirements of stainless steel angles reduce the total cost of ownership.

Benefit: An economical choice over the long term, especially when considering durability and reduced maintenance costs.

Stainless Steel Angle Specification

Product Name Stainless Steel Angles
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Stainless Steel
Standards/Grades 304, 304L, 316, 316L, SS310L
Size Range (mm) 20 x 20 mm to 200 x 200 mm (or custom sizes)
Thickness (mm) 3 mm to 25 mm
Finish Hot-rolled, galvanized, or as specified by customer
Make/Brand SAIL, RINL, Jindal, Tata, Pushpak, Mamaya, Mahavir, SKS, Balbir



Sizes and Weight

Size in mm Weight Per Meter in Kg. Size in mm Weight Per Meter in Kg.
20 x 20 x 3 0.9 75 x 75 x 10 11.00
25 x 25 x 3 1.1 90 x 90 x 8 10.8
25 x 25 x 5 1.8 90 x 90 x 10 13.4
30 x 30 x 3 1.4 100 x 100 x 6 9.2
35 x 35 x 5 2.6 100 x 100 x 8 12.1
40 x 40 x 3 1.8 100 x 100 x 10 14.9
40 x 40 x 5 3.0 100 x 100 x 12 17.7
40 x 40 x 6 3.5 110 x 110 x 8 13.4
50 x 50 x 5 3.8 110 x 110 x 10 16.5
50 x 50 x 6 4.5 130 x 130 x 10 19.7
65 x 65 x 6 5.8 130 x 130 x 12 23.4
65 x 65 x 8 7.7 150 x 150 x 10 22.8
65 x 65 x 10 9.4 150 x 150 x 12 27.2
75 x 75 x 6 6.8 200 x 200 x 12 36.6
75 x 75 x 8 8.9

Applications of Stainless steel Angles

Construction and Architecture

  • Building Frameworks: Stainless steel angles are essential for creating rigid, stable frameworks in construction projects.
  • Architectural Trims and Details: Due to their aesthetic appeal, they are frequently used for visible architectural details such as trims, outlines, and decorative supports.

Industrial Manufacturing

  • Equipment Frames: Utilized in the construction of frames for machinery and industrial equipment.
  • Conveyor Systems: Often used in the construction of conveyor systems which require durability and resistance to wear and tear.

Transportation Infrastructure

  • Railroad Construction: Employed in the building of railroad tracks and related infrastructure.
  • Automotive Frameworks: Critical in the design and manufacture of chassis and frameworks in the automotive industry.

Energy Sector

  • Oil and Gas Structures: Stainless steel’s resistance to corrosion makes it ideal for structures exposed to harsh environments like offshore platforms.
  • Wind Turbines and Solar Frames: Key components in renewable energy infrastructures such as solar panel frames and wind turbine structures.

Commercial and Residential Uses

  • Furniture Frames: Often used in both outdoor and indoor furniture for structural support and longevity.
  • Decorative Elements: Ideal for modern, stylish design elements in residential homes or commercial buildings.

Medical and Food Processing Equipment

  • Hospital Tools and Surfaces: The hygienic properties of stainless steel make it suitable for medical tools, surgical instruments, and surface areas in hospitals.
  • Food Processing Plants: Essential in environments that require cleanliness and resistance to acids and other chemicals, such as in food processing plants.

These applications showcase the incredible versatility and essential nature of stainless steel angles in various sectors, underlining their importance in modern industry and infrastructure.

Why Choose Ferrite Steels?

Ferrite Structural Steels Pvt. Ltd. is dedicated to providing Stainless Steel Angles that uphold the highest quality standards, offering unmatched quality assurance through rigorous testing and adherence to recognized standards. Our competitive pricing ensures that you receive exceptional value without compromising on quality. Our team of experts is ready to guide you through every step, from choosing the right grade to customizing finishes.

Get a Quote

Ready to get started with high-quality Stainless Steel Angles for your next project? Contact Ferrite Structural Steels Pvt. Ltd. today to receive a personalized quote or tailored advice on choosing the best products for your needs. Fill out our Inquiry Form for a quick response from our team.
