316 Stainless Steel Sheets

Buy Top Quality 316 Stainless Steel Sheet at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Stainless Steel Sheets.

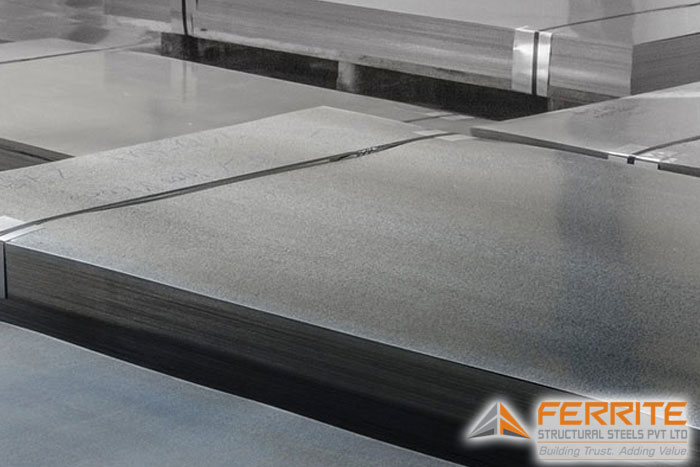

316 Stainless Steel Sheets

316 stainless steel sheets are renowned for their superior corrosion resistance, particularly against chlorides and other industrial solvents. This grade of stainless steel is an austenitic type that includes molybdenum, which significantly enhances its corrosion resistance, especially to pitting from chloride ion solutions. The added molybdenum makes 316 stainless steel ideal for environments exposed to salt and other harsh chemicals, making it a preferred choice in marine, chemical, and pharmaceutical industries.

The robust nature of 316 sheets contributes to their widespread use in applications requiring a high degree of corrosion resistance and strength. They are extensively used in the manufacture of medical surgical instruments, in marine environments for boat fittings, and in chemical processing equipment like reactors and tanks.

As a major manufacturer and supplier, Ferrite Structural Steels Pvt Ltd. offers SS316 sheets that meet the diverse needs of these demanding applications. Our products stand out for their reliability and quality, ensuring that they perform exceptionally well even in the most challenging environments. At Ferrite Structural Steels, we are dedicated to maintaining high standards of manufacturing, providing our clients with stainless steel sheets that not only meet but exceed industry requirements. Whether your project requires resistance to aggressive chemical exposure, saline environments, or both, our 316 stainless steel sheets offer the durability and performance necessary to ensure success.

316 Stainless Steel Sheet Specifications

Product Name 316 Stainless Steel Sheets
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Stainless steel
Finish Galvanized, Hot-rolled or Cold-rolled

316 Stainless Steel Sheet Size Chart

Sheet thickness (mm) Weight (kg/m) kg/meter (width 1200mm) kg/meter (width 1500mm) kg/meter (width 1800mm) kg/meter (width 2400mm)
3 23.55 28.3 35.3 42.4 56.5
4 31.4 37.7 47.1 56.5 75.4
5 39.25 47.1 58.9 70.7 94.2
6 47.1 56.5 70.7 84.8 113
8 62.8 75.4 94.2 113 150.7
10 78.5 94 118 141 188
12 94.2 113 141 170 226
16 125.6 151 188 226 301
20 157 188 236 283 377
22 172.7 207 259 311 415
25 196.25 236 294 353 471
28 219.8 264 330 396 528
32 251.2 301 377 452 603
36 282.6 339 424 509 678
40 314 377 471 565 754
45 353.25 424 530 636 848
50 392.5 471 589 707 942
55 431.75 518 648 777 1036
60 471 565 707 848 1130
65 510 612 765 918 1224
70 549.5 659 824 989 1319
75 588.75 707 883 1060 1413
80 628 754 942 1130 1507
90 706.5 848 1060 1272 1696
100 785 942 1178 1413 1884



SS316 Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS AFNOR BS GOST EN
SS 316 1.4401 S31600 SUS 316 Z7CND17‐11‐02 316S31 / 316S33 – X5CrNiMo17-12-2 / X3CrNiMo17-13-3



Chemical Composition of 316 Stainless Steel

Grade C Mn Si P S Cr Mo Ni Fe
316 0.08 max 2 max 1.00 max 0.045 max 0.030 max 16.00 – 18.00 2 – 3 11 – 14 67.845 min



316 Stainless Steel Mechanical Properties

Properties Metric Imperial
Tensile strength (transverse at room temperature) 685 MPa 99400 psi
Tensile strength (longitudinal at room temperature) 696 MPa 101000 psi
Yield strength (transverse at room temperature) 292 MPa 42400 psi
Yield strength (longitudinal at room temperature) 301 MPa 43700 psi
Compressive yield strength 365 MPa 52900 psi
Elastic modulus 197 GPa 28573 ksi
Poisson’s ratio 0.27-0.30 0.27-0.30
Elongation at break (longitudinal at room temperature) 56% 56%
Elongation at break (transverse at room temperature) 62.50% 62.50%
Hardness, Rockwell B (transverse at room temperature) 85 85
Hardness, Rockwell B (longitudinal at room temperature) 85 85

Key Features and Benefits

  1. Enhanced Corrosion Resistance: 316 stainless steel includes molybdenum, which significantly increases its resistance to chloride and other harsh chemical corrosions compared to other grades like 304.
  2. Excellent Durability: Known for its durability, 316 stainless steel withstands wear and tear in harsh environments, making it suitable for long-term applications.
  3. High-Temperature Resistance: It maintains its strength and structural integrity even at higher temperatures, making it ideal for applications involving heat exposure.
  4. Easy to Fabricate: Despite its toughness, 316 stainless steel is quite ductile and can be easily formed and welded, facilitating complex fabrications.
  5. Non-Reactive Properties: With its non-reactive qualities, 316 stainless steel is safe for use in applications that involve contact with food and pharmaceutical products.
  6. Longevity: The robust nature of 316 stainless steel reduces the need for frequent replacement or maintenance, providing long-term cost savings.
  7. Hygienic: Its non-porous surface makes it easy to clean and sterilize, preventing bacterial growth and making it ideal for medical and food-related uses.
  8. Aesthetic Appeal: 316 stainless steel offers a modern, clean look that is maintained over time, even in outdoor or high-saline environments.
  9. Sustainability: Stainless steel is 100% recyclable, reducing the environmental impact at the end of its service life.

Applications of SS 316 sheet

Marine Environment

  • Boat Fittings, Decking, and Hull Components: Due to its superior resistance to saltwater, SS 316 is extensively used in marine applications where materials are exposed to harsh oceanic conditions.

Food Processing Industry

  • Equipment and Appliances: Used in environments where the material’s resistance to corrosion from food elements and ease of cleaning are essential, such as in commercial kitchens, food processing plants, and brewing equipment.

Pharmaceutical Sector

  • Manufacturing Equipment: SS 316 is used in pharmaceutical manufacturing due to its corrosion resistance and ability to maintain purity in environments that are highly controlled and clean.

Water Treatment and Storage

  • Pipes and Storage Tanks: Its resistance to a variety of corrosive substances makes SS 316 suitable for water treatment facilities and storage tanks, especially those handling chlorinated or salty water.

Architecture and Construction

  • Architectural Paneling and Trim: SS 316 is used in architectural facades, paneling, and fittings, especially in coastal areas where corrosion resistance is crucial.
  • Support Beams and Framing in High-Corrosion Areas: Its strength and durability make it suitable for structural components in buildings exposed to corrosive environments.

Automotive Industry

  • Exhaust Systems and Structural Components: Its heat resistance makes it suitable for components exposed to high temperatures, such as in automotive exhaust systems.

Energy Industry

  • Oil and Gas Exploration Equipment: Used in components that must withstand the corrosive substances encountered in oil and gas extraction.

Why Choose Ferrite’s 316 Stainless Steel Sheet?

Choosing Ferrite Structural Steels Pvt Ltd. for your 316 Stainless Steel Sheets ensures you receive products of the highest quality, backed by our dedication to excellence and customer satisfaction. Our 316 Stainless Steel Sheets are manufactured using advanced processes, ensuring superior strength, durability, and reliability for a wide range of applications. We offer an extensive selection of sizes and thicknesses to meet your specific needs, all at competitive prices. Whether you’re in construction, automotive, shipbuilding, or any other industry, Ferrite’s 316 Stainless Steel Sheets provide the robust performance and longevity you require. Experience the Ferrite difference today—request a quote and let us provide you with the perfect 316 Stainless Steel Sheet solution for your project.

Looking for 316 Stainless Steel Sheets? Order Now
