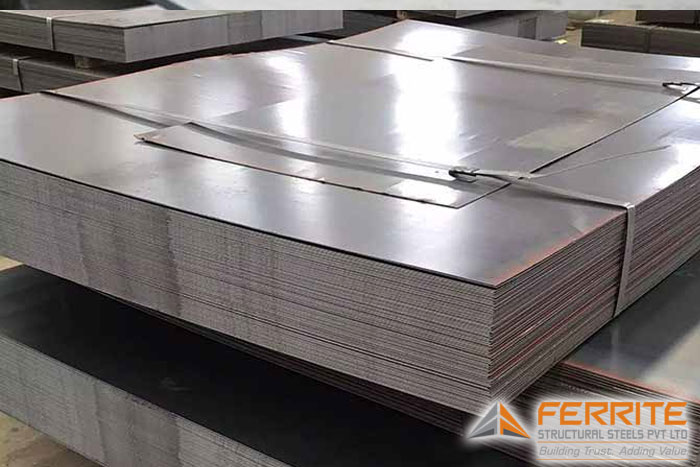

ASTM A36 Sheets

Buy Top Quality ASTM A36 Sheet at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Sheets.

ASTM A36 Sheets

A36 steel properties is a popular choice for low-temperature applications in various industries. This mild and hot-rolled steel offers excellent welding properties and can be easily machined through grinding, drilling, and other processes. A36 Sheet is also available in various cold and rolled applications and is commonly used in different industries for smooth functioning of applications. The alloy comes in different forms including rectangular, circular, angles, and squares.

The ASTM A36 Carbon Steel Sheet possesses different properties based on the inherent alloy of the manufactured sheets. Steel alloy sheets exhibit a range of properties including corrosion resistance, excellent durability, high ductility, and high tensile strength. Apart from these, ASTM A36 Steel Sheets have various other properties as well, making them suitable for use in diverse industries. The petrochemical, pharmaceutical, oil and gas, and pulp and paper industries are some examples of industries that use a wide range of manufactured sheets.

Ferrite Structural Steels Pvt. Ltd. is a trusted ASTM A36 sheet supplier, manufacturer and stockist with a focus on providing the best possible products and services to clients, the company conducts material testing to ensure that the sheets meet their exact specifications. For ASME SA36 Mild Steel Sheet, a range of tests are performed, including hardness, hydrostatic, ultrasonic, micro, macro, positive material identifications, and others. To ensure safe transportation, the sheets are also packed as per the guidelines provided by the clients. The company’s commitment to quality and customer satisfaction has made them a reliable choice for customers across various industries.

ASTM A36 Sheet Specifications

Product Name ASTM A36 Sheet
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Finish Galvanized, Hot-rolled or Cold-rolled

ASTM A36 Sheet Size Chart

Sheet thickness (mm) Weight (kg/m) kg/meter (width 1200mm) kg/meter (width 1500mm) kg/meter (width 1800mm) kg/meter (width 2400mm)
3 23.55 28.3 35.3 42.4 56.5
4 31.4 37.7 47.1 56.5 75.4
5 39.25 47.1 58.9 70.7 94.2
6 47.1 56.5 70.7 84.8 113
8 62.8 75.4 94.2 113 150.7
10 78.5 94 118 141 188
12 94.2 113 141 170 226
16 125.6 151 188 226 301
20 157 188 236 283 377
22 172.7 207 259 311 415
25 196.25 236 294 353 471
28 219.8 264 330 396 528
32 251.2 301 377 452 603
36 282.6 339 424 509 678
40 314 377 471 565 754
45 353.25 424 530 636 848
50 392.5 471 589 707 942
55 431.75 518 648 777 1036
60 471 565 707 848 1130
65 510 612 765 918 1224
70 549.5 659 824 989 1319
75 588.75 707 883 1060 1413
80 628 754 942 1130 1507
90 706.5 848 1060 1272 1696
100 785 942 1178 1413 1884



ASTM A36 Equivalent Material

EN USA GB BS JIS ISO IS
Fe360D2, S235J2G4 A36 Q235D 40EE SM 400 A Fe 360B IS 226



ASTM A36 CHEMICAL COMPOSITION

Grade C Si Mn P S
ASTM A36 0.25 max. 0.4 max. 0.8-1.2 0.035 max. 0.035 max.



ASTM A36 MECHANICAL PROPERTIES

Tensile strength, kis [MPa] Yield strength, min, kis [MPa] Elongation in 8 in. [200 mm], min, % Elongation in 2 in. [50 mm], min, %
58-80 [400-550] 36 [250] 20 23

Key Features and Benefits

  1. Good Weldability: ASTM A36 steel is known for its excellent welding properties, which allow it to be joined easily with other components, making it ideal for a wide range of applications.
  2. High Strength: It provides sufficient strength for many structural applications, ensuring durability and structural integrity.
  3. Machinability: This steel grade can be easily machined, which simplifies the manufacturing process and allows for quick production of components.
  4. Ductility: ASTM A36 maintains good ductility, allowing it to be formed into various shapes without compromising its properties, which is essential for manufacturing complex structures.
  5. Cost-Effective: Generally, ASTM A36 sheets are more affordable compared to high-strength low-alloy or specialized steels, making them a cost-effective option for many projects.
  6. Safety: The robust nature of ASTM A36 ensures that structures made from this steel are safe and reliable, able to withstand various loads and stresses.
  7. Ease of Modification: Its excellent formability allows for modifications and alterations without significant investment, providing flexibility in use.
  8. Longevity: When used in suitable applications and environments, ASTM A36 sheets exhibit a long service life due to their ruggedness and corrosion resistance when properly treated.
  9. Standard Compliance: ASTM A36 meets specific chemistry and mechanical property standards set by ASTM International, ensuring consistent performance and quality.

Applications of ASTM A36 Sheet

  1. Fabrication: ASTM A36 sheet is extensively used in the fabrication industry for manufacturing various components and structures such as frames, brackets, and base sheets.
  2. Automobile Industries: ASME SA36 Sheet is used in the automotive industry for the construction of truck frames, brackets, and other structural components.
  3. General Engineering: ASTM A36 sheet is used in general engineering applications for the manufacturing of heavy machinery components, such as cranes, bulldozers, and other equipment.
  4. Oil & Natural Gas: ASTM A36 sheet is used in the oil and natural gas industry for the construction of pipelines, storage tanks, and other equipment.
  5. Machine Building: ASME SA36 MS Sheet is used in machine building for the manufacturing of various machine components such as gears, shafts, and other structural parts.
  6. Infrastructure: ASTM A36 sheet is used in the construction industry for the fabrication of bridges, buildings, and other structures that require high strength and durability.
  7. Slide Conveyor: ASTM A36 sheet is used in the conveyor industry for the manufacturing of slide conveyors, which are used for transporting goods in warehouses and manufacturing plants.
  8. Pumps: ASTM A36 mild steel sheet is used in the pump industry for the construction of various components, such as casings and impellers.
  9. Loaders: ASTM A36 sheet is used in the construction industry for the manufacturing of loaders, which are used for excavating and moving heavy materials.
FAQs — ASTM A36 Sheets

ASTM A36 Sheets: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What are ASTM A36 Sheets?
ASTM A36 Sheets are carbon structural steel sheets ordered to ASTM A36/A36M where that specification and product form are applicable. A complete order should state the exact product standard, grade, thickness, width, length, finish or delivery condition and quantity; the product name alone is not a complete procurement specification.
02
Where are ASTM A36 Sheets commonly used?
Common applications include structural fabrication, base components, frames, machinery, brackets, buildings and general welded assemblies. Suitability depends on grade, thickness, forming and welding requirements, environment and design loads. Structural use must follow the approved drawing, BOQ, project standard and responsible engineer’s calculations and approval.
03
What does ASTM A36/A36M specify for steel sheets?
ASTM A36/A36M specifies requirements for carbon structural steel products within its scope, including chemical and mechanical provisions. It does not by itself define every sheet dimension, tolerance, surface or fabrication requirement, which must be stated separately.
04
Is ASTM A36 equivalent to S275JR or IS 2062 E250?
No automatic equivalence should be assumed. These specifications differ in chemistry, thickness-dependent mechanical requirements, impact provisions, product coverage and testing. Any proposed substitution needs a documented comparison and approval by the responsible engineer or end user.
05
What supplementary requirements may be needed for ASTM A36 sheets?
Project needs may include impact testing, specific traceability, additional testing, dimensional standards, surface condition or inspection. List required supplementary clauses in the purchase order and confirm their applicability and acceptance before material is supplied.
06
Which sizes and thicknesses are available for ASTM A36 Sheets?
Dimensions, supplementary requirements and availability should be confirmed against the purchase specification. A published size chart is a reference, not confirmation of ready stock. Send the required thickness, width, length, piece quantity and total tonnage so availability can be checked line by line.
07
How is the weight of ASTM A36 Sheets calculated?
Theoretical sheet weight in kilograms is thickness in millimetres × width in metres × length in metres × 7.85. Weight per square metre is approximately thickness in millimetres × 7.85. Actual invoiced weight can differ because of permitted dimensional tolerances and the agreed weighment basis.
08
Can I get a ASTM A36 Sheets weight chart?
A weight chart can be prepared from the selected thicknesses and sheet dimensions using the agreed steel density. Confirm whether the quotation and dispatch documents use theoretical mass or actual weighment. For processed, perforated or coated sheets, use the supplier’s agreed calculation basis.
09
What is the current ASTM A36 Sheets price per kg?
A current price per kg requires a dated quotation. It varies with grade, standard, thickness, dimensions, finish, coating or processing, quantity, testing, packing, freight and taxes. Provide an itemised requirement so each supplier prices the same technical and commercial scope.
10
How is the ASTM A36 Sheets price per tonne determined?
Price per tonne starts with the applicable steel market rate and changes with grade, thickness, sheet format, surface or coating, processing, order quantity, documentation and logistics. Confirm whether GST, freight, cutting, packing and inspection are included before comparing offers.
11
What is the MOQ for ASTM A36 Sheets?
The live product family pages commonly state a minimum order quantity of 1 tonne, but acceptance should be confirmed for the exact grade, size, finish and quantity. For mixed items, show the piece count and weight of every line rather than only the combined total.
12
Are ASTM A36 Sheets available from ready stock?
Ready-stock availability must be confirmed for the exact grade, standard, thickness, width, length, finish and quantity. A website listing or size chart does not prove immediate availability. Include make preference, documentation, inspection and required delivery date with the enquiry.
13
Can an MTC be supplied with ASTM A36 Sheets?
Request the mill test certificate at enquiry stage and state the required document type. It should identify the heat or batch, grade, standard and reported chemical and mechanical results. Any impact testing, coating certificate or traceability requirement must be expressly included.
14
What inspection documents should be requested for ASTM A36 Sheets?
Documentation should match the project specification and may include the MTC, dimensional report, surface or coating report, packing list and traceability records. Define acceptance criteria, third-party inspection, witness points and document approval timing before the purchase order is released.
15
Can ASTM A36 Sheets be cut, drilled, formed or welded?
Processing can be reviewed against the grade, thickness, drawing and quantity. Provide cut sizes, tolerances, hole details, bend direction and radius, edge preparation and welding requirements. Fabrication procedures and structural details must follow the approved code and responsible engineer’s approval.
16
Can I buy ASTM A36 Sheets from a supplier in Mumbai or Navi Mumbai?
Ferrite lists locations in Mumbai and Kalamboli, Navi Mumbai. Provide the delivery postcode, sheet dimensions, item-wise tonnage, unloading restrictions and required date so supply and logistics can be reviewed for Mumbai, Navi Mumbai and other Maharashtra destinations.
17
Can ASTM A36 Sheets be supplied across India?
The website states nationwide supply. For an India-wide quotation, provide consignee postcode, grade and standard, thickness and size mix, total tonnage, packing, MTC, inspection and delivery requirement. Compare quotations on the same delivered or ex-works basis.
18
Does Ferrite handle export enquiries for ASTM A36 Sheets?
Export requirements can be reviewed against the requested specification and quantity. State destination port and country, Incoterm, grade, standard, dimensions, tonnage, finish, packing, MTC and inspection requirements. Shipping programme and export documentation must be confirmed for the order.
19
How should quotations from ASTM A36 Sheets suppliers be compared?
Compare the complete grade and standard, dimensions and tolerances, mass basis, finish or coating, MTC, inspection, processing, packing, taxes, freight, delivery basis and validity. A lower price per kg may exclude important technical or logistics costs, so compare landed scope line by line.
20
What details are needed for a fast ASTM A36 Sheets quotation?
Send product name, grade and standard, thickness, width, length, piece quantity and total tonnage. Add finish or coating, make preference, MTC, third-party inspection, cutting or fabrication drawing, delivery postcode or destination port, Incoterm and required delivery date.

Why Choose Ferrite’s ASTM A36 Sheet?

Choosing Ferrite Structural Steels Pvt Ltd. for your ASTM A36 Sheets ensures you receive products of the highest quality, backed by our dedication to excellence and customer satisfaction. Our ASTM A36 Sheets are manufactured using advanced processes, ensuring superior strength, durability, and reliability for a wide range of applications. We offer an extensive selection of sizes and thicknesses to meet your specific needs, all at competitive prices. Whether you’re in construction, automotive, shipbuilding, or any other industry, Ferrite’s ASTM A36 Sheets provide the robust performance and longevity you require. Experience the Ferrite difference today—request a quote and let us provide you with the perfect ASTM A36 Sheet solution for your project.
