Galvanized Sheets

Buy Top Quality Galvanized Sheet at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Sheets.

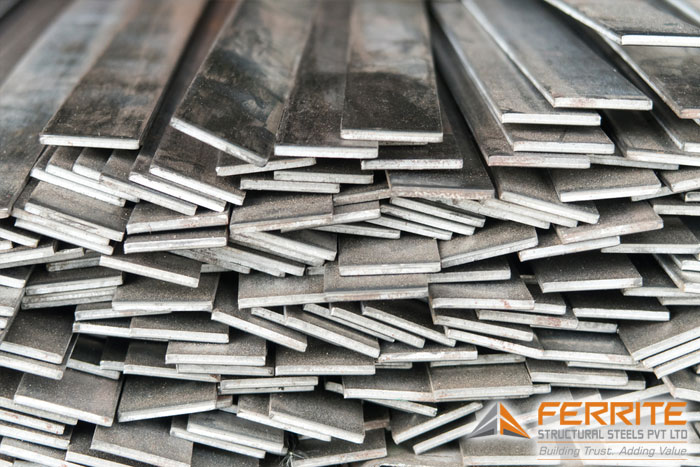

Galvanized Flat Bar

Galvanized sheets are a staple in the steel industry, valued for their enhanced durability and resistance to corrosion. These sheets undergo a galvanization process where they are coated with a thin layer of zinc that protects the base metal from rust and other corrosive elements. This feature extends the life of the sheets and reduces maintenance costs, making them an economical choice for long-term applications.

The popularity of GI sheet spans across various sectors due to their protective qualities and versatility. They are widely used in the construction industry for roofing, wall cladding, and framing, providing structures with additional safety against environmental factors. In the automotive industry, galvanized sheets are utilized to manufacture body parts and components that are resistant to rust.

Ferrite Structural Steels Pvt Ltd. is a major manufacturer and supplier of high-quality galvanized sheets, known for their reliability and performance. We ensure that each sheet meets rigorous industry standards and customer specifications. Our commitment to quality and innovation makes Ferrite Structural Steels a trusted partner in supplying steel solutions that withstand the test of time and elements, catering to a broad range of industrial needs. Whether your project involves construction, manufacturing, or automotive work, our galvanized sheets offer the robustness and longevity required for your success.

Galvanized Sheet Specifications

Product Name Galvanized Sheet
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Finish Galvanized

Galvanized Sheet Size Chart

Sheet thickness (mm) Weight (kg/m) kg/meter (width 1200mm) kg/meter (width 1500mm) kg/meter (width 1800mm) kg/meter (width 2400mm)
3 23.55 28.3 35.3 42.4 56.5
4 31.4 37.7 47.1 56.5 75.4
5 39.25 47.1 58.9 70.7 94.2
6 47.1 56.5 70.7 84.8 113
8 62.8 75.4 94.2 113 150.7
10 78.5 94 118 141 188
12 94.2 113 141 170 226
16 125.6 151 188 226 301
20 157 188 236 283 377
22 172.7 207 259 311 415
25 196.25 236 294 353 471
28 219.8 264 330 396 528
32 251.2 301 377 452 603
36 282.6 339 424 509 678
40 314 377 471 565 754
45 353.25 424 530 636 848
50 392.5 471 589 707 942
55 431.75 518 648 777 1036
60 471 565 707 848 1130
65 510 612 765 918 1224
70 549.5 659 824 989 1319
75 588.75 707 883 1060 1413
80 628 754 942 1130 1507
90 706.5 848 1060 1272 1696
100 785 942 1178 1413 1884

Key Features and Benefits

  1. Corrosion Resistance: The primary feature of galvanized sheets is their superior resistance to corrosion, provided by a protective layer of zinc that prevents rust.
  2. Longevity: The zinc coating on galvanized sheets significantly extends their lifespan compared to uncoated steel, ensuring long-term performance and reducing the need for frequent replacements.
  3. Easy Maintenance: Galvanized sheets require minimal maintenance as the zinc coating provides a barrier that reduces the rate of decay and wear.
  4. Thermal Resistance: They offer resistance to high temperatures, making them suitable for applications involving heat.
  5. Ready to Use: Galvanized sheets come with a smooth and clean finish, requiring no additional surface preparation before use, which speeds up the construction or manufacturing process.
  6. Cost-Effective: While offering enhanced protection against corrosion, galvanized sheets are cost-effective over their lifespan due to reduced maintenance and replacement costs.
  7. Sustainability: Galvanized steel is environmentally friendly; it is completely recyclable and conserves natural resources by extending the life of the metal.
  8. Ease of Inspection: The integrity of the zinc coating can be easily inspected visually or through simple non-destructive methods, ensuring quality and conformity to safety standards.
  9. Faster Project Completion: Their readiness to be used without additional preparation allows for faster completion of projects, a crucial factor in time-sensitive industries.
  10. Safety: The process of galvanizing steel can improve the overall safety of structures by reducing the risk of damages caused by rust and structural failures.

Applications of Galvanized Sheet

  1. Construction Industry: In the construction industry, Galvanized Sheets are essential for building infrastructure such as bridges, buildings, and roads. They are used for structural components, framework, beams, and columns due to their high strength and durability. Galvanized Sheets also serve as base plates and reinforcements in various construction projects.
  2. Automotive Industry: The automotive industry extensively uses Galvanized Sheets for manufacturing vehicle frames, chassis, and body panels. Their high tensile strength and formability make them ideal for creating components that need to withstand significant stress and impact. Additionally, Galvanized Sheets are used in making wheel rims, bumpers, and other structural parts of vehicles.
  3. Shipbuilding Industry: Galvanized Sheets play a crucial role in the shipbuilding industry, where they are used to construct the hulls and decks of ships and boats. Their ability to withstand harsh marine environments and high loads makes them suitable for this demanding application. Galvanized Sheets ensure the structural integrity and safety of maritime vessels.
  4. Energy Sector: The energy sector relies on Galvanized Sheets for constructing pipelines, wind turbines, and power plant structures. Their robustness and ability to endure high pressures and temperatures make them suitable for transporting and storing oil, gas, and other energy resources. Galvanized Sheets are also used in the fabrication of renewable energy infrastructure such as solar panel mounts and frames.
  5. Heavy Machinery: Galvanized Sheets are a key material in the production of heavy machinery used in mining, construction, and manufacturing industries. They are used to create components like excavator arms, bulldozer blades, and crane booms, which require high strength and resistance to wear and tear.
  6. Railways: The railway industry utilizes Galvanized Sheets for manufacturing train carriages, tracks, and other components. Their durability and ability to handle heavy loads and dynamic stresses make them ideal for railway applications. Galvanized Sheets contribute to the safety and efficiency of rail transport systems.
FAQs — Galvanized Sheets

Galvanized Sheets: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What are Galvanized Sheets?
Galvanized Sheets are steel sheets protected by a zinc-based coating applied under a specified galvanizing process and coating standard. A complete order should state the exact product standard, grade, thickness, width, length, finish or delivery condition and quantity; the product name alone is not a complete procurement specification.
02
Where are Galvanized Sheets commonly used?
Common applications include roofing and cladding components, ducts, enclosures, outdoor fabrication, agricultural equipment and corrosion-exposed assemblies. Suitability depends on grade, thickness, forming and welding requirements, environment and design loads. Structural use must follow the approved drawing, BOQ, project standard and responsible engineer’s calculations and approval.
03
Are galvanized sheets permanently rust-proof?
No. Zinc delays corrosion but does not make steel permanently rust-proof. Service life depends on coating designation, environment, drainage, contact with other materials, forming damage, cut edges and maintenance. Coastal or chemical exposure needs a project-specific coating assessment.
04
What galvanizing details should be specified?
State the base-steel grade, galvanizing method, applicable coating standard, coating mass or thickness designation, spangle or surface requirement, passivation or oiling and inspection criteria. “Galvanized sheet” alone is not a complete coating specification.
05
How should cut edges and damaged areas be protected?
Cut edges, holes and damaged zinc areas should be treated by a repair method approved for the project and exposure. Specify edge protection, compatible primers or repair coatings, preparation and inspection before fabrication begins, especially for outdoor or coastal service.
06
Which sizes and thicknesses are available for Galvanized Sheets?
Base-steel grade, sheet dimensions, coating designation and surface treatment should be confirmed with the enquiry. A published size chart is a reference, not confirmation of ready stock. Send the required thickness, width, length, piece quantity and total tonnage so availability can be checked line by line.
07
How is the weight of Galvanized Sheets calculated?
Theoretical sheet weight in kilograms is thickness in millimetres × width in metres × length in metres × 7.85. Weight per square metre is approximately thickness in millimetres × 7.85. Actual invoiced weight can differ because of permitted dimensional tolerances and the agreed weighment basis.
08
Can I get a Galvanized Sheets weight chart?
A weight chart can be prepared from the selected thicknesses and sheet dimensions using the agreed steel density. Confirm whether the quotation and dispatch documents use theoretical mass or actual weighment. For processed, perforated or coated sheets, use the supplier’s agreed calculation basis.
09
What is the current Galvanized Sheets price per kg?
A current price per kg requires a dated quotation. It varies with grade, standard, thickness, dimensions, finish, coating or processing, quantity, testing, packing, freight and taxes. Provide an itemised requirement so each supplier prices the same technical and commercial scope.
10
How is the Galvanized Sheets price per tonne determined?
Price per tonne starts with the applicable steel market rate and changes with grade, thickness, sheet format, surface or coating, processing, order quantity, documentation and logistics. Confirm whether GST, freight, cutting, packing and inspection are included before comparing offers.
11
What is the MOQ for Galvanized Sheets?
The live product family pages commonly state a minimum order quantity of 1 tonne, but acceptance should be confirmed for the exact grade, size, finish and quantity. For mixed items, show the piece count and weight of every line rather than only the combined total.
12
Are Galvanized Sheets available from ready stock?
Ready-stock availability must be confirmed for the exact grade, standard, thickness, width, length, finish and quantity. A website listing or size chart does not prove immediate availability. Include make preference, documentation, inspection and required delivery date with the enquiry.
13
Can an MTC be supplied with Galvanized Sheets?
Request the mill test certificate at enquiry stage and state the required document type. It should identify the heat or batch, grade, standard and reported chemical and mechanical results. Any impact testing, coating certificate or traceability requirement must be expressly included.
14
What inspection documents should be requested for Galvanized Sheets?
Documentation should match the project specification and may include the MTC, dimensional report, surface or coating report, packing list and traceability records. Define acceptance criteria, third-party inspection, witness points and document approval timing before the purchase order is released.
15
Can Galvanized Sheets be cut, drilled, formed or welded?
Processing can be reviewed against the grade, thickness, drawing and quantity. Provide cut sizes, tolerances, hole details, bend direction and radius, edge preparation and welding requirements. Fabrication procedures and structural details must follow the approved code and responsible engineer’s approval.
16
Can I buy Galvanized Sheets from a supplier in Mumbai or Navi Mumbai?
Ferrite lists locations in Mumbai and Kalamboli, Navi Mumbai. Provide the delivery postcode, sheet dimensions, item-wise tonnage, unloading restrictions and required date so supply and logistics can be reviewed for Mumbai, Navi Mumbai and other Maharashtra destinations.
17
Can Galvanized Sheets be supplied across India?
The website states nationwide supply. For an India-wide quotation, provide consignee postcode, grade and standard, thickness and size mix, total tonnage, packing, MTC, inspection and delivery requirement. Compare quotations on the same delivered or ex-works basis.
18
Does Ferrite handle export enquiries for Galvanized Sheets?
Export requirements can be reviewed against the requested specification and quantity. State destination port and country, Incoterm, grade, standard, dimensions, tonnage, finish, packing, MTC and inspection requirements. Shipping programme and export documentation must be confirmed for the order.
19
How should quotations from Galvanized Sheets suppliers be compared?
Compare the complete grade and standard, dimensions and tolerances, mass basis, finish or coating, MTC, inspection, processing, packing, taxes, freight, delivery basis and validity. A lower price per kg may exclude important technical or logistics costs, so compare landed scope line by line.
20
What details are needed for a fast Galvanized Sheets quotation?
Send product name, grade and standard, thickness, width, length, piece quantity and total tonnage. Add finish or coating, make preference, MTC, third-party inspection, cutting or fabrication drawing, delivery postcode or destination port, Incoterm and required delivery date.

Why Choose Ferrite’s Galvanized Sheet?

Choosing Ferrite Structural Steels Pvt Ltd. for your Galvanized Sheets ensures you receive products of the highest quality, backed by our dedication to excellence and customer satisfaction. Our Galvanized Sheets are manufactured using advanced processes, ensuring superior strength, durability, and reliability for a wide range of applications. We offer an extensive selection of sizes and thicknesses to meet your specific needs, all at competitive prices. Whether you’re in construction, automotive, shipbuilding, or any other industry, Ferrite’s Galvanized Sheets provide the robust performance and longevity you require. Experience the Ferrite difference today—request a quote and let us provide you with the perfect Galvanized Sheet solution for your project.
