S235JR Plate

Buy Top Quality S235JR Plate at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Plates.

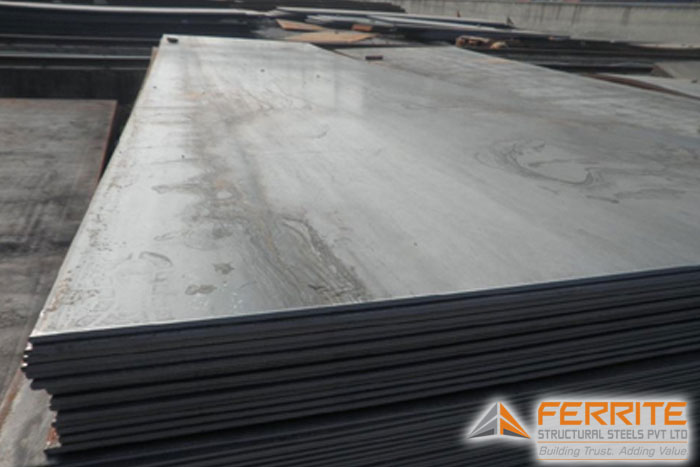

S235JR Plate

S235JR plates are a form of carbon steel that falls under the European EN 10025-2 standard, designed for structural applications. Recognized for its good weldability and machinability, S235JR is one of the most commonly used structural steels. It features a minimum yield strength of 235 MPa, making it an ideal choice for a multitude of structural applications where durability is necessary.

The adaptability and reliability of S235JR plates make them popular across a wide range of industries. They are extensively used in the construction industry for making structural steel works like beams, channels, and frames which are the backbone of major architectural projects. In the manufacturing sector, S235JR plates are used in the production of industrial machinery and automotive components due to their excellent formability and weldability.

Ferrite Structural Steels Pvt Ltd., as a prominent manufacturer and supplier, provides high-quality S235JR plates that cater to these diverse industrial needs. Our commitment to quality ensures that these plates meet rigorous industry standards and perform well in various demanding conditions. With Ferrite Structural Steels, clients gain access to steel plates that not only meet the required specifications but also deliver enhanced durability and reliability, ensuring that their structural projects are built to last.

S235JR Plate Specifications

Product Name S235JR Plate
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Finish Galvanized, Hot-rolled or Cold-rolled

S235JR Plate Size Chart

Plate thickness (mm) Weight (kg/m) kg/meter (width 1200mm) kg/meter (width 1500mm) kg/meter (width 1800mm) kg/meter (width 2400mm)
3 23.55 28.3 35.3 42.4 56.5
4 31.4 37.7 47.1 56.5 75.4
5 39.25 47.1 58.9 70.7 94.2
6 47.1 56.5 70.7 84.8 113
8 62.8 75.4 94.2 113 150.7
10 78.5 94 118 141 188
12 94.2 113 141 170 226
16 125.6 151 188 226 301
20 157 188 236 283 377
22 172.7 207 259 311 415
25 196.25 236 294 353 471
28 219.8 264 330 396 528
32 251.2 301 377 452 603
36 282.6 339 424 509 678
40 314 377 471 565 754
45 353.25 424 530 636 848
50 392.5 471 589 707 942
55 431.75 518 648 777 1036
60 471 565 707 848 1130
65 510 612 765 918 1224
70 549.5 659 824 989 1319
75 588.75 707 883 1060 1413
80 628 754 942 1130 1507
90 706.5 848 1060 1272 1696
100 785 942 1178 1413 1884



S235JR PLATE EQUIVALENT MATERIAL

EN DIN, WNr JIS AFNOR IS ISO UNI ASTM Steel No.
S235JR RSt37-2 SM400A E24 IS226 E235B FE360B A283 C 1.0038
RSt37-2 SS400 Fe360B



S235JR CHEMICAL COMPOSITION

C Mn P S N Cu CEV
0.2 max. 1.4 max. 0.04 max. 0.04 max. 0.012 max. 0.55 max. 0.38 max.



S235JR PLATE MECHANICAL PROPERTIES

Tensile strength, Rm, MPa (N/mm2) 0,2% Yield strength, Rp0, 2min, (MPa) Brinell hardness, HB max
360 – 510 235 100 – 154

Key Features and Benefits

  1. Good Weldability and Formability: S235JR plates can be readily welded and formed, making them versatile for various structural applications.
  2. Minimum Yield Strength: They offer a minimum yield strength of 235 MPa, which ensures durability and resistance against deformation under load.
  3. Machinability: S235JR steel is known for its excellent machinability, allowing for efficient processing during manufacturing.
  4. Durability: The structural steel grade provides sufficient durability, making it suitable for use in load-bearing applications and other stressful environments.
  5. Low Carbon Content: S235JR is a low-carbon steel, which reduces the risk of cracking during welding and enhances the overall strength of the welded joints.
  6. Cost-Effective: S235JR is generally less expensive compared to higher grades of structural steel, making it a cost-effective option for many projects.
  7. Ease of Installation: The good formability and weldability of S235JR plates make them easy to install and adapt to various configurations, which can save time and labor costs on projects.
  8. Environmental Sustainability: Steel is highly recyclable, and using S235JR steel contributes to sustainable construction practices by minimizing environmental impact.
  9. High Structural Integrity: With its robust mechanical properties, S235JR provides high structural integrity, ensuring safety and durability of structures over long periods.

Applications of S235JR Plate

Construction Industry

  • Building Frames and Support Beams: S235JR plates are extensively used in the construction of commercial and residential buildings for structural frames and support beams due to their strength and weldability.
  • Foundation Pylons and Retaining Walls: Ideal for underground structures and retaining walls where strength and durability are crucial.

Infrastructure Projects

  • Bridge Components: Commonly used in the construction of bridges, including the decking, support beams, and other critical structural elements that require high strength and toughness.
  • Road Barriers and Safety Rails: Employed in the manufacturing of road barriers and safety rails that need to withstand the impact and provide durability under outdoor conditions.

Manufacturing Industry

  • Machinery Bases and Frameworks: S235JR plates are used to construct bases and frameworks for heavy machinery, ensuring stability and robust performance under industrial conditions.
  • Equipment Chassis and Enclosures: Ideal for creating protective enclosures and chassis for various types of industrial equipment.

Automotive Industry

  • Trailer and Truck Beds: Due to their strength and formability, S235JR plates are used in the manufacturing of trailer beds and heavy-duty truck components.
  • Vehicle Frame Structures: Utilized in the construction of frame structures and body parts for commercial vehicles.

General Engineering

  • Metal Fabrications: S235JR is widely used in general engineering and fabrication, including brackets, mounts, and various custom steel components.
  • Architectural Elements: Suitable for architectural elements that require a combination of strength, aesthetic appeal, and easy fabrication, such as sculptures and structural aesthetics.

Why Choose Ferrite’s S235JR Plate?

Choosing Ferrite Structural Steels Pvt Ltd. for your S235JR Plates ensures you receive products of the highest quality, backed by our dedication to excellence and customer satisfaction. Our S235JR Plates are manufactured using advanced processes, ensuring superior strength, durability, and reliability for a wide range of applications. We offer an extensive selection of sizes and thicknesses to meet your specific needs, all at competitive prices. Whether you’re in construction, automotive, shipbuilding, or any other industry, Ferrite’s S235JR Plates provide the robust performance and longevity you require. Experience the Ferrite difference today—request a quote and let us provide you with the perfect S235JR Plate solution for your project.

Send Enquiry
