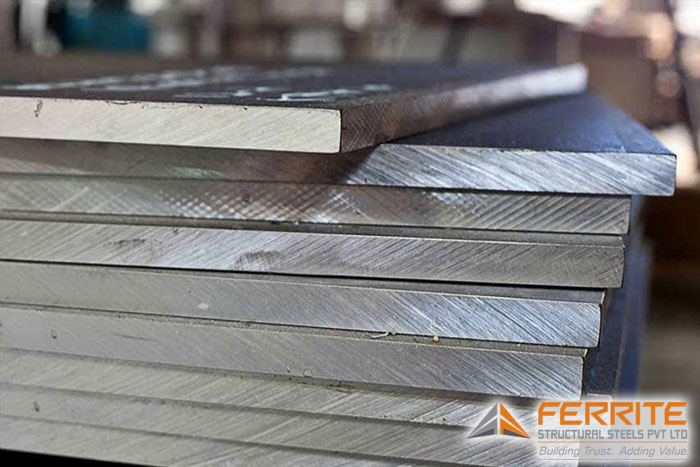

S275JR Sheets

Buy Top Quality S275JR Sheet at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Sheets.

S275JR Sheets

The S275JR material is a type of mild steel commonly used in structural applications. It falls into the category of non-alloy structural steel, meaning it is composed primarily of carbon without any other alloying elements. This makes it an economical and robust material suitable for various uses. One of the key features of the S275JR sheet is its impressive strength. The S275JR yield strength is 275 MPa, and well-suited for construction and engineering projects that demand high tensile strength. Its strength also contributes to its resistance against deformations, enabling it to retain its shape and size even when subjected to heavy loads. Furthermore, the S275JR sheet exhibits excellent toughness. This refers to its ability to absorb energy without fracturing or cracking. As a result, it is particularly suitable for applications involving impact or shock loading, such as the construction of bridges or buildings.

Ferrite Structural Steels Pvt. Ltd. is the leading supplier and stockist of S275JR Plate, S275 Plate, S275 Steel Plates, EN S275JR 1.0044 Plate, 235JR Steel Plate, carbon steel plate S275JR in Mumbai, India. To meet the different demands of our esteemed patrons we are providing these plates in various specifications, dimensions, wall thickness, length, etc. All our offered ranges of plates are designed by efficiently using the superior quality of alloy and as per the set manufacturing norms and industry quality standards.

S275JR Sheet Specifications

Product Name S275JR Sheet
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Finish Galvanized, Hot-rolled or Cold-rolled

S275JR Sheet Size Chart

Sheet thickness (mm) Weight (kg/m) kg/meter (width 1200mm) kg/meter (width 1500mm) kg/meter (width 1800mm) kg/meter (width 2400mm)
3 23.55 28.3 35.3 42.4 56.5
4 31.4 37.7 47.1 56.5 75.4
5 39.25 47.1 58.9 70.7 94.2
6 47.1 56.5 70.7 84.8 113
8 62.8 75.4 94.2 113 150.7
10 78.5 94 118 141 188
12 94.2 113 141 170 226
16 125.6 151 188 226 301
20 157 188 236 283 377
22 172.7 207 259 311 415
25 196.25 236 294 353 471
28 219.8 264 330 396 528
32 251.2 301 377 452 603
36 282.6 339 424 509 678
40 314 377 471 565 754
45 353.25 424 530 636 848
50 392.5 471 589 707 942
55 431.75 518 648 777 1036
60 471 565 707 848 1130
65 510 612 765 918 1224
70 549.5 659 824 989 1319
75 588.75 707 883 1060 1413
80 628 754 942 1130 1507
90 706.5 848 1060 1272 1696
100 785 942 1178 1413 1884



S275-JR Equivalent Grades

Standard Equivalent Grade
EN (European Norm) S275JR
ASTM (American Society for Testing and Materials) ASTM A36, ASTM A283 Grade C
DIN (Deutsches Institut für Normung – German) St44-2
JIS (Japanese Industrial Standards) SS400
ISO (International Organization for Standardization) ISO 630-2:2011(E) S275B

Chemical Composition of S275-JR

C for nominal thickness in mm Mn P S N Cu
≤ 16 ˃16 ≤ 40 ˃ 40
≤ 0.21 ≤ 0.21 ≤ 0.22 ≤ 1.50 ≤ 0.035 ≤ 0.035 ≤ 0.012 ≤ 0.55

S275-JR Mechanical Properties

Nominal thickness, mm Minimum yield strength, MPa Strength limit, MPa
<3 275 430-580
≥3 ≤ 16 275 410-560
> 16 ≤ 40 265 410-560
> 40 ≤ 63 255 410-560
> 63 ≤ 80 245 410-560
> 80 ≤ 100 235 410-560
> 100 ≤ 150 225 400-540
> 150 ≤ 200 215 380-540
> 200 ≤ 250 205 380-540
> 250 ≤ 400 195 380-540

Key Features and Benefits

  1. Structural Integrity: S275JR sheets are a common structural steel grade that offers excellent strength and durability. They can sustain significant stress and are capable of supporting heavy loads.
  2. Weldability and Formability: These sheets are highly weldable and formable, making them suitable for a variety of manufacturing and engineering applications where shaping and joining of materials are required.
  3. Good Machinability: S275JR steel has a balanced composition that makes it easy to machine, allowing for efficient processing during manufacturing.
  4. Standard Compliance: S275JR sheets adhere to European standards, ensuring they meet consistent and reliable quality benchmarks.
  5. Chemical Composition: It contains a mix of carbon and manganese that enhances its toughness and hardness, making it an ideal choice for many structural applications.
  6. Cost-Efficiency: These sheets offer a cost-effective solution for structural applications due to their durability and long life span, reducing the need for frequent replacements.
  7. Ease of Maintenance: The robust nature of S275JR steel ensures that it requires minimal maintenance once installed, helping to save on ongoing care and upkeep.
  8. Sustainability: Steel is a recyclable material, and using S275JR sheets contributes to sustainable construction and manufacturing practices.
  9. Enhanced Safety: Their high strength and resilience to deformation contribute to safer structures, particularly in building and infrastructure projects.

Applications of S275JR Sheet

Construction Industry

  • Structural Frames and Beams: S275JR sheets are extensively used in the construction of buildings and bridges where structural integrity is crucial.
  • Support Columns: Ideal for use in applications requiring robust support structures, such as columns in residential and commercial buildings.
  • Flooring and Roofing Components: They are used in making floor joists and roofing frames that require durability and strength.

Manufacturing

  • Industrial Machinery: Due to their high strength, these sheets are used in the fabrication of parts for heavy machinery used in various manufacturing processes.
  • Transport Containers: S275JR steel is often used in the manufacture of shipping containers and large industrial storage containers that require high strength to withstand heavy loads.

Engineering Projects

  • Bridge Components: Employed in the construction of bridges, particularly for parts that need to bear significant loads, such as platforms and support beams.
  • General Structural Engineering: Used for various structural applications where a combination of strength, weldability, and formability is needed.

Automotive Industry

  • Vehicle Chassis and Frames: The sheets are also used in the automotive industry to produce parts of the vehicle chassis and body frames that require structural strength and resistance to impact.

Equipment and Infrastructure

  • Signposts and Barriers: Due to their excellent formability and durability, S275JR sheets are suitable for making road signposts, barriers, and other infrastructure components that must endure outdoor conditions.

Why Choose Ferrite’s S275JR Sheet?

Choosing Ferrite Structural Steels Pvt Ltd. for your S275JR Sheets ensures you receive products of the highest quality, backed by our dedication to excellence and customer satisfaction. Our S275JR Sheets are manufactured using advanced processes, ensuring superior strength, durability, and reliability for a wide range of applications. We offer an extensive selection of sizes and thicknesses to meet your specific needs, all at competitive prices. Whether you’re in construction, automotive, shipbuilding, or any other industry, Ferrite’s S275JR Sheets provide the robust performance and longevity you require. Experience the Ferrite difference today—request a quote and let us provide you with the perfect S275JR Sheet solution for your project.
