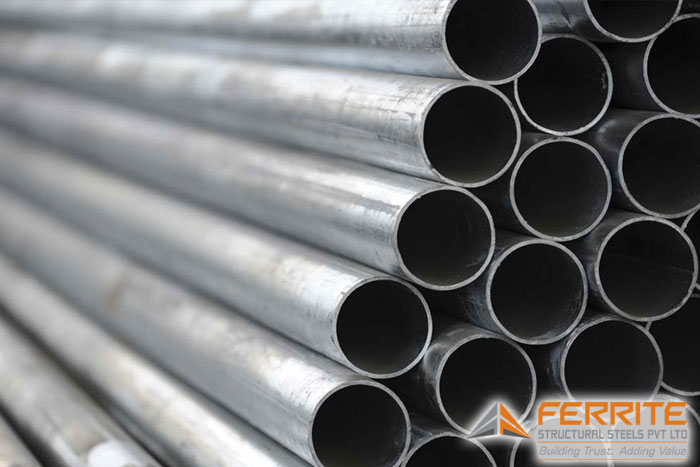

SS 310 Round Pipes

Buy Premium SS 310 Round Pipes at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Steel Pipes.

SS 310 Round Pipes

SS 310 Round Pipes are highly sought after in the stainless steel pipe market for their exceptional properties and versatility. These pipes are made from high chromium and nickel alloy, which provides superior resistance to oxidation and corrosion at high temperatures. This makes them especially useful in environments where the temperature can reach up to 2100°F, such as in furnace parts, heat treatment equipment, and in chemical processing industries.

The round shape of SS 310 pipes enhances their strength and resistance to external pressure, making them a reliable choice for high-pressure applications. Their ability to maintain integrity in extreme conditions has popularized them in industries such as power generation, petrochemicals, and aerospace, where performance and durability are paramount.

Ferrite Structural Steels Pvt Ltd., as a prominent manufacturer and supplier, is proud to offer SS 310 Round Pipes among its extensive range of steel products. With a reputation for quality and innovation, Ferrite Structural Steels ensures that all its products, including SS 310 Round Pipes, meet the highest standards of performance and reliability, catering to the diverse and demanding needs of the global marketplace.

SS 310 Round Pipe Specification

Product Name SS 310 Round Pipes
Brand Ferrite Structural Steels Pvt Ltd.
Minimum Order Quantity 1 Ton
Material Stainless Steel
Finish Painted, galvanized, or standard mill finish

SS 310 Round Pipe Size Chart

Size in mm Approximate Weight and Thickness
15 NB 5-6kg (2 mm)
15 NB 8kg (3.2 mm)
20 NB 6 – 6.5 kg (1.6mm)
20 NB 8 – 9 kg (2.5mm)
20 NB 10-12 kg (3.2mm)
25 NB 9kg (2mm)
25 NB 11 – 12 kg (2.5mm)
25 NB 13k – 14 kg (3.2mm)
32 NB 8.5kg (1.6mm)
32 NB 11kg (2mm)
32 NB 13.5 kg (2.5mm)
32 NB 17 – 20kg (2.9mm)
32 NB 21 – 23 kg (3.2mm)
40 NB 11 – 12 kg (1.6mm)
40 NB 15kg (2mm)
40 NB 18/19kg (2.5mm)
40 NB 23 – 25 kg (3.2mm)
50 NB 18-20kg (2mm)
50 NB 23-25 kg (2.5 mm)
50 NB 30-32kg (3.5 mm)
65 NB 22-25kg (2mm)
65 NB 28-30kg (2.5mm)
65 NB 35- 36kg (3.2mm)
65 NB 36- 39kg (3.5)
90 NB 33 – 35kg (2 mm)
90 NB 47 – 49 kg (2.9 mm)
90 NB 63 – 65 kg (4 mm)
125 NB 45 – 50 kg (2 mm)



310 Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 310 1.4841 S31000 SUS 310 310S24 20Ch25N20S2 X15CrNi25-20



Chemical Composition of 310 Stainless Steel

Grade C Mn Si P S Cr Mo Ni N
SS 310 0.015 max 2.0 max 0.15 max 0.020 max 0.015 max 24.00 – 26.00 0.10 max 19.00 – 21.00 54.7 min



310 Stainless Steel Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1402 °C (2555 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 40 %

Major Features and Benefits

  1. High-Temperature Resistance: SS 310 is specifically designed for use in high-temperature conditions. It can withstand temperatures up to 2100°F (1149°C), making it ideal for applications such as furnace parts, heat exchangers, and kilns where other materials might fail.
  2. Oxidation Resistance: Due to its high chromium and nickel content, SS 310 exhibits excellent resistance to oxidation. This is crucial for maintaining the integrity and longevity of the pipe in oxidative and corrosive environments.
  3. Corrosion Resistance: SS 310 offers superior resistance to corrosion caused by acidic, alkaline, and chlorine-bearing environments. This makes it suitable for processing environments in the chemical, petrochemical, and pharmaceutical industries.
  4. Strength at High Temperature: Unlike many other materials, SS 310 maintains its strength at high temperatures. This is particularly important for structural applications that must retain their shape and form under thermal stress.
  5. Durability: The robust physical properties of SS 310 make it a durable option that can withstand harsh operating conditions without deteriorating, ensuring a long service life and reducing the need for frequent replacements.
  6. Weldability and Fabrication: Despite its strength, SS 310 is relatively easy to weld and fabricate. This makes it flexible for custom applications, allowing it to be formed into complex shapes and fittings as required by specific uses.
  7. Aesthetic Quality: SS 310 pipes have a high luster and finish that do not diminish even under exposure to high temperatures. This aesthetic quality makes them suitable for visible applications where appearance is important.
  8. Non-Magnetic: This property makes SS 310 pipes suitable for applications where magnetic interference must be minimized, such as in electronic equipment or in certain medical devices.

Applications of SS 310 Round Pipes

  1. Construction: In the construction industry, SS 310 Round Pipes are used for structural supports, scaffolding, and frameworks. Their ability to bear heavy loads and provide stability makes them essential for building robust structures, bridges, and infrastructure projects.
  2. Automotive Industry: These pipes are crucial in the automotive sector for manufacturing vehicle frames, exhaust systems, and roll cages. Their strength and flexibility allow them to withstand the stress and vibrations typical of automotive applications.
  3. Plumbing and Water Supply: SS 310 Round Pipes are widely used in plumbing systems for transporting water, gas, and other fluids. Their corrosion resistance (when coated) and durability make them suitable for both residential and industrial plumbing applications.
  4. Furniture Manufacturing: The furniture industry uses SS 310 Round Pipes to create modern and industrial-style furniture pieces such as chairs, tables, and shelving units. Their smooth, uniform appearance adds aesthetic value while providing sturdy support.
  5. General Engineering: SS 310 Round Pipes are utilized in general engineering for making tools, machinery, and equipment. Their uniformity and strength are beneficial for creating components that require high precision and reliability.
  6. Industrial Applications: SS 310 Round Pipes are employed in various industrial sectors for conveyor systems, support structures, and pipelines. Their robustness ensures reliable performance in demanding industrial environments.
  7. Architectural Applications: Due to their aesthetic appeal and structural integrity, SS 310 Round Pipes are used in architectural designs for railings, gates, and decorative elements. Their sleek and modern look enhances the visual appeal of buildings and structures.
  8. DIY and Craft Projects: Hobbyists and DIY enthusiasts use SS 310 Round Pipes for various craft projects and custom builds. Their ease of handling and versatility make them a favorite material for creative applications.
FAQs — SS 310 Round Pipes

SS 310 Round Pipes: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What is SS 310 Round Pipes?
SS 310 Round Pipes are grade 310 stainless-steel pipes with a circular cross-section. A purchase description should state profile, grade, product standard, outside dimensions or nominal bore, wall thickness or class, length, end condition, finish and quantity. The name alone does not establish pressure rating, structural capacity or testing.
02
What are the main applications of SS 310 Round Pipes?
Common applications include furnace and heat-treatment equipment, hot-gas components, process plant, construction and high-temperature fabrication where approved. Suitability depends on whether the pipe carries fluid, acts as a structural hollow section or becomes a fabricated component. Final selection must follow the approved drawing, BOQ, piping class, design code and responsible engineer’s approval.
03
Which sizes and thicknesses are listed for SS 310 Round Pipes?
The live-page information states that confirm NB or outside diameter, wall thickness or schedule and length at enquiry stage. Published chart entries are not confirmation of stock and may use different weight bases. State every outside dimension or NB, wall thickness, length and quantity so the requirement can be checked accurately.
04
How should SS 310 Round Pipes dimensions be specified?
For circular pipe, state nominal bore or outside diameter, wall thickness or schedule, and length. For square or rectangular hollow sections, state both outside dimensions, wall thickness, corner profile and length. Add dimensional tolerances, straightness, end squareness and ovality where relevant.
05
Which standard should be specified for SS 310 Round Pipes?
The standard depends on grade, manufacturing route and service. Process pipe may be ordered to recognised ASTM or ASME product specifications, while structural hollow sections use different dimensional and mechanical standards. Quote the exact approved standard and edition; do not select from “stainless pipe” alone.
06
What standard lengths are available for SS 310 Round Pipes?
The reviewed page does not publish a fixed length range. Availability should be confirmed for the required size, thickness, grade and quantity. State exact or random length, cut-length tolerance, end condition, piece identification and whether nesting or fabrication drawings must be reviewed.
07
How is SS 310 Round Pipes weight per metre calculated?
Theoretical weight is calculated from cross-sectional area multiplied by the density adopted for the specified stainless grade. Circular, square and rectangular sections use different geometry, while corner radii and tolerances affect results. Confirm whether the quotation uses theoretical weight or actual weighment.
08
Can I get a SS 310 Round Pipes weight chart?
A weight chart can be prepared after the outside dimensions, wall thickness and adopted density are confirmed. Where the live page publishes approximate weights, use them only for initial planning. Contractual mass should follow the governing standard, tolerances and quotation basis.
09
What is the SS 310 Round Pipes price per kg?
Current price per kg requires a dated quotation and varies with grade, size, thickness or schedule, manufacturing route, finish, quantity, testing, cutting, packing, freight and taxes. Submit a complete itemised requirement so competing suppliers quote the same technical and commercial scope.
10
How is the SS 310 Round Pipes price per metre determined?
Price per metre is derived from the agreed kg/m and price per kg, plus any coating, testing, cutting, end preparation, packing and freight. Confirm whether the quoted kg/m is theoretical or actual and whether GST and delivery are included.
11
What is the MOQ for SS 310 Round Pipes?
The live page states a minimum order quantity of 1 tonne. Actual acceptance remains subject to size, thickness, grade, length, finish and availability. For mixed-size enquiries, give the piece count or weight of each line item rather than only the combined tonnage.
12
Is SS 310 Round Pipes available from ready stock?
Stock must be confirmed for the exact profile, grade, standard, size, thickness, length, finish and quantity. A product page or size chart does not establish immediate availability. State make preference, MTC, inspection and required delivery date at enquiry stage.
13
What temperature can SS 310 round pipe withstand?
No single safe temperature can be quoted without atmosphere, pressure, stress, cycling and design code. 310 is selected mainly for elevated-temperature oxidation resistance; safe temperature depends on atmosphere, stress and duty cycle. Provide normal and upset temperatures, gas chemistry, pressure, wall thickness and design life for review by the responsible engineer.
14
What inspection and testing should be specified for SS 310 Round Pipes?
Testing must follow the governing product and project specification. It may include chemistry, tensile, flattening, bend, drift-expansion, hydrostatic, eddy-current or ultrasonic checks, dimensional inspection and coating tests. Define acceptance criteria, sampling, third-party witness points and document timing before order placement.
15
Can SS 310 Round Pipes be cut, bent, drilled or welded?
Processing can be reviewed against the drawing, grade, dimensions and quantity. Provide cut lengths, tolerances, hole details, bend radius, weld procedure and end preparation. Stainless tooling, contamination control, filler selection and post-weld cleaning must follow the approved fabrication procedure.
16
Can SS 310 Round Pipes be used for pressure or load-bearing service?
Not from the product name alone. Pressure suitability requires the approved piping class, design pressure and temperature, fluid, corrosion allowance, joint type, standard and testing. Structural capacity requires section properties, loads, bracing, connections and calculations. Final selection belongs to the responsible engineer.
17
Can I buy SS 310 Round Pipes from a supplier in Mumbai or Navi Mumbai?
Ferrite lists its head office in Mumbai and a facility address at Kalamboli, Navi Mumbai. Provide delivery postcode, profile-wise tonnage, longest length, vehicle and unloading constraints and required date so logistics can be reviewed for Mumbai, Navi Mumbai and Maharashtra.
18
Can SS 310 Round Pipes be supplied across India?
The website states nationwide supply. India-wide enquiries should include consignee postcode, grade, standard, size and thickness mix, length, tonnage, packing, MTC and delivery schedule. Long-length freight can materially affect landed price, so compare offers on the same delivery basis.
19
Does Ferrite handle export enquiries for SS 310 Round Pipes?
Export requirements can be reviewed against the requested specification and quantity. Provide destination port and country, Incoterm, grade, standard, dimensions, thickness or schedule, length, tonnage, finish, packing, MTC and inspection requirements. Shipping programme and documentation must be confirmed for the order.
20
What details are needed for a fast SS 310 Round Pipes quotation?
Send product name, profile, complete grade and standard, outside dimensions or NB, wall thickness or schedule, length, piece quantity and total tonnage. Add finish, make preference, MTC, inspection, cutting or fabrication drawing, delivery postcode or destination port, Incoterm and required date.

Why Choose Ferrite’s SS 310 Round Pipes?

Choosing Ferrite Structural Steels Pvt Ltd. for SS 310 Round Pipes ensures that you benefit from a product that is superior in quality and engineered for durability. Our SS 310 Round Pipes are manufactured using the latest technology and strict quality controls, ensuring that they meet the high standards required for a wide range of industrial and commercial applications. At Ferrite Structural Steels, we prioritize not only product excellence but also customer satisfaction and environmental responsibility. Our SS 310 Round Pipes are cost-effective, environmentally friendly, and customizable to meet specific needs, making them a preferred choice for businesses looking for long-term, sustainable solutions. For detailed information on specifications and pricing, or to request a quote, please contact us today. Let us help you achieve your project goals with confidence and efficiency.
