Home > Steel Products > Steel Sheets > Stainless Steel Sheets > SS304L Cold Rolled Sheet

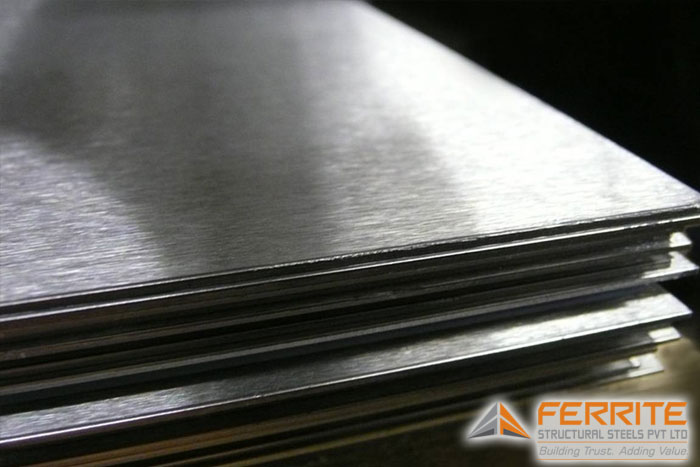

SS304L Cold Rolled Sheet

Buy Top Quality SS304L Cold Rolled Sheet at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Stainless Steel Sheets.

SS304L Cold Rolled Sheet

SS304L Cold Rolled Sheets are a refined version of the standard 304L stainless steel, processed through cold rolling techniques to enhance strength, surface finish, and thickness uniformity. This method involves rolling the stainless steel at a temperature below its recrystallization point, leading to a sheet that is harder, smoother, and possesses a higher level of dimensional accuracy than those produced by hot rolling.

The fine surface finish and increased strength make Cold Rolled Sheets highly popular across a variety of industries. These sheets are especially favored in applications where aesthetic appearance is crucial, such as in consumer appliances, automotive trim, and architectural details. Additionally, their enhanced surface finish makes them ideal for use in the medical field, where smooth surfaces are necessary for sanitation and cleanliness.

As a major manufacturer and supplier, Ferrite Structural Steels Pvt Ltd. specializes in providing high-quality SS304L Cold Rolled Sheets that meet the exacting standards required by these diverse applications. Our cold rolled sheets are known for their precision and quality, ensuring that they perform reliably in both industrial and commercial settings. At Ferrite Structural Steels, we are committed to delivering not only superior products but also comprehensive solutions that help our clients achieve their project goals efficiently and effectively.

SS304L Cold Rolled Sheet Specifications

Product Name SS304L Cold Rolled Sheet
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Stainless steel
Finish Galvanized, Hot-rolled or Cold-rolled

SS304L Cold Rolled Sheet Size Chart

Sheet thickness (mm) Weight (kg/m) kg/meter (width 1200mm) kg/meter (width 1500mm) kg/meter (width 1800mm) kg/meter (width 2400mm)
3 23.55 28.3 35.3 42.4 56.5
4 31.4 37.7 47.1 56.5 75.4
5 39.25 47.1 58.9 70.7 94.2
6 47.1 56.5 70.7 84.8 113
8 62.8 75.4 94.2 113 150.7
10 78.5 94 118 141 188
12 94.2 113 141 170 226
16 125.6 151 188 226 301
20 157 188 236 283 377
22 172.7 207 259 311 415
25 196.25 236 294 353 471
28 219.8 264 330 396 528
32 251.2 301 377 452 603
36 282.6 339 424 509 678
40 314 377 471 565 754
45 353.25 424 530 636 848
50 392.5 471 589 707 942
55 431.75 518 648 777 1036
60 471 565 707 848 1130
65 510 612 765 918 1224
70 549.5 659 824 989 1319
75 588.75 707 883 1060 1413
80 628 754 942 1130 1507
90 706.5 848 1060 1272 1696
100 785 942 1178 1413 1884



SS304L Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11



Chemical Composition of 304L Stainless Steel

Grade C Mn Si P S Cr Mo Ni N
SS 304L 0.035 max 2 max 1.0 max 0.045 max 0.03 max 18 – 20 8 – 13



304L Stainless Steel Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Key Features and Benefits

  1. Enhanced Surface Finish: The cold rolling process provides SS304L sheets with a superior surface finish, which is smoother and has higher aesthetic appeal compared to hot rolled sheets.
  2. Increased Strength and Hardness: Cold rolling increases the yield strength and hardness of the metal through the process of work hardening, making these sheets more durable and resistant to deformation.
  3. Greater Dimensional Accuracy: SS304L Cold Rolled Sheets exhibit tighter dimensional tolerances due to the nature of the cold rolling process, ensuring consistency and precision in finished components.
  4. Improved Corrosion Resistance: The smooth surface minimizes the accumulation of particles and contaminants that can lead to corrosion, maintaining the inherent corrosion resistance of the 304L grade.
  5. Non-Magnetic: This grade maintains its non-magnetic properties even after the cold rolling process, which is crucial for applications where magnetic interference must be avoided.
  6. Aesthetic Quality: The fine finish makes them suitable for applications where visual appearance is important, such as in architectural facades, consumer appliances, and decorative paneling.
  7. Durability: The increased strength and corrosion resistance contribute to a longer lifespan of the products made from these sheets, reducing the need for frequent replacements.
  8. Low Maintenance: The smooth surface is easy to clean and maintain, which is particularly beneficial in sanitary environments like kitchens and hospitals.

Applications of SS304L Cold Rolled Sheet

Architectural and Interior Design

  • Decorative Paneling and Trims: Used for cladding, paneling, and other decorative elements where aesthetics are important.
  • Elevator Interiors: Commonly used in elevator cabin walls and floors due to its sleek appearance and durability.

Automotive Industry

  • Exterior Components: Used in automotive trim, grille covers, and other exterior parts that require a fine surface finish and corrosion resistance.
  • Structural Elements: Utilized in lightweight, high-strength components that contribute to fuel efficiency and vehicle integrity.

Medical Equipment

  • Surgical Instruments: Ideal for medical devices and surgical instruments due to its non-reactive nature and ease of sterilization.
  • Hospital Storage and Panels: Used in hospital fixtures such as cabinetry, storage units, and wall panels, where cleanliness and minimal microbial growth are crucial.

Food Processing Industry

  • Processing Equipment: Commonly used in the construction of food processing equipment, including conveyors, mixers, and bins that need to maintain strict hygiene standards.
  • Food Storage Containers: Employed in the manufacturing of food storage and transport containers which require corrosion resistance and non-toxic properties.

Consumer Products

  • Appliances: Widely used in home appliances such as refrigerators, dishwashers, and laundry machines for their aesthetic finish and corrosion resistance.
  • Furniture: Employed in metal furniture designs that require a fine finish and long-lasting durability.
FAQs — SS304L Cold Rolled Sheet

SS304L Cold Rolled Sheet: Frequently Asked Questions

Straight answers on sizes, thickness, weight, grades, MTC, pricing and ordering — so your enquiry is specification-ready before you send it.

01
What does stainless steel grade 304L mean for sheet buyers?
Grade 304L identifies a defined stainless steel chemistry and associated material requirements; it does not by itself fix sheet size, finish or tolerance. It is commonly considered for hygienic, architectural, appliance and precision-fabricated components. Buyers should state the governing product standard and service conditions so the requested grade can be checked correctly.
02
Which standard is commonly specified for ss304l cold rolled sheet?
ASTM A240/A240M is commonly referenced for chromium and chromium-nickel stainless steel plate, sheet and strip for general and pressure-vessel use. The purchase order must state the required edition, grade 304L, dimensions, finish and supplementary requirements. Project or end-user specifications take precedence where they impose additional testing or documentation.
03
How does 304L compare with 304 stainless steel sheet?
The grades are related but should not be treated as automatically interchangeable. The distinction affects chemistry and may affect welding or service suitability; for this page, the key buyer consideration is 304L weldability together with a smoother cold-rolled surface and closer dimensional control. Any substitution must be approved by the end user or responsible engineer and reflected on the MTC.
04
Why is 304L weldability together with a smoother cold-rolled surface and closer dimensional control important when selecting ss304l cold rolled sheet?
It directly affects whether the sheet is suitable for hygienic, architectural, appliance and precision-fabricated components. The operating temperature, chemicals, cleaning regime, weld condition and expected life should be reviewed together. A generic grade description cannot replace the approved material specification or corrosion and thermal assessment for the actual service environment.
05
Can ss304l cold rolled sheet be welded?
Grade 304L sheet can be fabricated using procedures appropriate to the alloy, but welding consumables, heat input, joint design and post-weld treatment depend on the code and service. Provide the welding specification and drawing at enquiry stage. Critical work must follow an approved welding procedure and responsible engineering approval.
06
Is ss304l cold rolled sheet suitable for outdoor or coastal service?
Suitability depends on chloride exposure, pollutants, surface finish, cleaning access, fabrication details and the grade’s corrosion resistance. For this product, consider 304L weldability together with a smoother cold-rolled surface and closer dimensional control. Coastal selection should be based on a project corrosion assessment; stainless steel is corrosion-resistant but not immune to staining, pitting or crevice corrosion.
07
What chemical and mechanical requirements should be checked for grade 304L?
Check the governing standard and MTC for the specified grade, product form and heat. Chemical limits and mechanical tests can vary with standard, condition and thickness. Do not copy a single website value into a purchase order without verifying the applicable specification, edition and project requirements.
08
Can another stainless grade be supplied as an equivalent to 304L?
An equivalent label should not be accepted without document review. Standards can differ in chemistry, mechanical requirements, product form and testing. Ask for the proposed designation and MTC, compare it with the approved specification, and obtain written end-user or engineer approval before any grade substitution.
09
What sizes are listed for ss304l cold rolled sheet?
The published stainless steel sheet range lists thicknesses of 3, 4, 5, 6, 8, 10, 12, 16, 20, 22, 25, 28, 32, 36, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90 and 100 mm and widths of 1200, 1500, 1800 and 2400 mm; length is available on request. Actual availability should be confirmed for the required grade, finish and quantity. State the finished or mill size clearly because cutting allowances can change the ordered dimensions and weight.
10
How is the weight of ss304l cold rolled sheet calculated?
Sheet weight is estimated from length x width x thickness x the applicable material density, with all units converted consistently. Perforated sheet weight must also account for removed open area. Use the supplier’s confirmed theoretical or actual weight basis for ordering, freight and invoicing rather than treating a generic calculator as final.
11
Is a weight chart available for ss304l cold rolled sheet?
The live page provides thickness-based weights across 1200, 1500, 1800 and 2400 mm. A weight chart is useful for budgeting and logistics, but buyers should verify the basis, units and density for the specified grade. For cut or perforated sheets, ask whether quotation weight is theoretical, calculated net weight or actual dispatch weight.
12
What is the price per kg of ss304l cold rolled sheet?
There is no reliable fixed current price per kg because stainless steel values change with grade, dimensions, finish, quantity, mill or make, testing, cutting, packing and freight. Request a dated quotation with the complete specification and delivery postcode. Confirm whether GST, transport and processing charges are included or shown separately.
13
How is the price per tonne for ss304l cold rolled sheet determined?
The price per tonne is based on the specified grade and market level, then adjusted for sheet dimensions, finish, quantity, source, processing, documentation and logistics. For a comparable quotation, provide total tonnage and piece count together. Ask for the quote validity and whether billing follows theoretical or actual weight.
14
What is the MOQ for ss304l cold rolled sheet?
The supplied product page states a minimum order quantity of 1 ton. MOQ can still be affected by grade, dimension, finish and processing, so confirm it for the exact enquiry. Include piece quantity and total tonnage; this helps determine whether the requirement aligns with available material and commercial supply conditions.
15
Can stock availability of ss304l cold rolled sheet be confirmed before ordering?
Yes, availability should be confirmed against the exact grade, thickness, width, length, finish and quantity at the enquiry stage. Do not assume every listed size is ready stock. Ask the supplier to identify available material, mill or make where relevant, documentation status and any processing required before dispatch.
16
Can an MTC be requested with ss304l cold rolled sheet?
An MTC can be requested at the enquiry stage and should identify the heat, grade, governing standard and reported test results. State whether an EN 10204 document type or project-specific format is required. Documentation availability must be confirmed before order placement, especially for tenders, coded fabrication and export consignments.
17
Can third-party inspection be arranged for ss304l cold rolled sheet?
Third-party inspection requirements can be reviewed when they are stated before quotation. Provide the inspection agency, inspection and test plan, witness or hold points, acceptance criteria and documentation format. Inspection scope, access, charges and scheduling should be agreed in the purchase order; do not assume it is included in the base material price.
18
Can ss304l cold rolled sheet be cut or fabricated to a drawing?
Cutting or fabrication requirements can be reviewed against the drawing, grade, thickness, tolerances and quantity. Send a controlled drawing showing finished dimensions, holes, bends, welds, edge condition and inspection points. Structural or pressure-related fabrication must follow the approved drawing, code and responsible engineer’s approval.
19
Does Ferrite supply ss304l cold rolled sheet in Mumbai, Navi Mumbai and Maharashtra?
Ferrite Structural Steels Pvt Ltd has sales operations in Mumbai and a location in Kalamboli, Navi Mumbai. Buyers in Mumbai, Navi Mumbai, Maharashtra and nearby states should provide the delivery postcode, unloading constraints and required date. Product availability, freight and dispatch arrangements must be confirmed for the specified order.
20
Can buyers request India-wide or export quotations for ss304l cold rolled sheet?
India-wide and export requirements can be reviewed based on quantity, destination and specification. For domestic supply, provide the delivery postcode. For export, provide destination port, Incoterm, packing requirement, documentation, inspection scope and shipment quantity. Availability and commercial terms should be confirmed before treating the quotation as an order commitment.

Why Choose Ferrite’s SS304L Cold Rolled Sheet?

Choosing Ferrite Structural Steels Pvt Ltd. for your SS304L Cold Rolled Sheet ensures you receive products of the highest quality, backed by our dedication to excellence and customer satisfaction. Our SS304L Cold Rolled Sheet is manufactured using advanced processes, ensuring superior strength, durability, and reliability for a wide range of applications. We offer an extensive selection of sizes and thicknesses to meet your specific needs, all at competitive prices. Whether you’re in construction, automotive, shipbuilding, or any other industry, Ferrite’s SS304L Cold Rolled Sheet provides the robust performance and longevity you require. Experience the Ferrite difference today—request a quote and let us provide you with the perfect SS304L Cold Rolled Sheet solution for your project.
