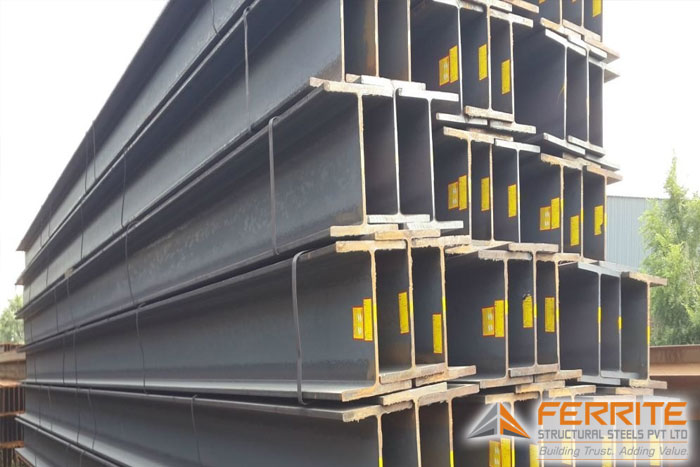

S355-J2 MS Beams

Buy Premium Quality S355-J2 MS Beams at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of Mild Steel Beams.

S355-J2 MS Beams are renowned for their exceptional strength and resilience, conforming to the European EN 10025-2 standard. The designation “S355” indicates a minimum yield strength of 355 MPa, making these beams significantly stronger than standard mild steel. The ‘J2’ suffix denotes that the material has undergone Charpy impact testing at -20 degrees Celsius, ensuring its toughness in cold weather conditions. This makes S355-J2 MS Beams ideal for demanding applications in construction, heavy engineering, bridge building, and in environments where durability under dynamic loads is critical.

Ferrite Structural Steels Pvt Ltd, as a leading manufacturer and supplier, specializes in producing high-quality S355-J2 MS Beams that meet and exceed industry standards. Our beams are favored for their robust performance in challenging environments, making us a trusted partner in the steel manufacturing sector. With advanced production facilities and a commitment to quality, Ferrite Structural Steels ensures that each S355-J2 beam offers superior structural integrity and longevity, catering to a broad range of industrial and construction needs.

S355-J2 MS Beams Specifications

Product Name S355-J2 MS Beams
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Size Range (mm) 75 x 40 mm to 400 x 100 mm (or custom sizes)
Thickness (mm) 3 mm to 25 mm
Finish Hot-rolled, galvanized, or as specified by customer

S355-J2 MS Beams Size Chart

Size (mm) Weight per Foot (kg) Weight per Meter (kg)
75 x 40 2.172 7.126
100 x 50 2.925 9.597
125 x 65 3.992 13.098
150 x 75 5.12 16.799
175 x 75 5.973 19.597
200 x 75 6.796 22.298
250 x 80 9.326 30.599
300 x 90 11.063 36.298
400 x 100 15.270 50.300

S355-J2 Equivalent Grades

USA Germany Japan European old China Sweden
DIN,WNr JIS EN GB SS
A656 St52-3N SS490YA Fe510D2 Q345D 2134-01

Chemical Composition of S355-J2 Structural Angle

Steel grade C Mn Si P S N Cu Other CEV
max. max. max. max. max. max. max. max. max.
% % % % % % % % %
  Nominal thickness               Nominal thickness
mm mm
  ≤16 >16 >40               ≤30 >30 >40
≤40 ≤40 ≤125

S355J2 0,20 0,20 0,22 1,60 0,55 0,030 0,030 – 0,55 – 0,45 0,47 0,47

S355-J2 Structural Angle Mechanical Properties

Steel grade Minimum yield strength Reh Tensile strength Rm Minimum elongation – A Notch impact test
MPa MPa Lo = 5,65 * √So (%)
  Nominal thickness Nominal thickness Nominal thickness Temperature Min. absorbed energy
mm mm mm
S355J2





 ≤16 >16 >40 >63 >80 >100 >3 >100 >3 >40 >63 >100 °C J
≤40 ≤63 ≤80 ≤100 ≤125 ≤100 ≤125 ≤40 ≤63 ≤100 ≤125
355 345 335 325 315 295 470-630 450-600 22 21 20 18 -20 27

Key Features and Benefits

  1. Enhanced Strength: With a minimum yield strength of 355 MPa, S355-J2 MS Beams are among the strongest in the mild steel category, providing robust support and stability for heavy-load bearing structures.
  2. Toughness in Cold Weather: The ‘J2’ component indicates that these beams have been tested for toughness at -20 degrees Celsius, making them highly suitable for use in colder climates where other materials might become brittle.
  3. Durability: These beams are designed to withstand harsh environmental conditions, resisting wear and tear over time. This durability reduces the need for frequent replacements and lowers maintenance costs.
  4. Sustainability: Steel is a highly sustainable material, and S355-J2 MS Beams can be recycled at the end of their lifecycle, aligning with eco-friendly construction practices.
  5. Design Flexibility: The inherent strength of S355-J2 allows for more innovative architectural and engineering designs, supporting wider spans and heavier loads without compromising on the safety or integrity of the structure.
  6. Cost-Effective: While providing superior strength and durability, S355-J2 MS Beams remain a cost-effective solution for large-scale construction projects, offering long-term value through their extended lifespan and minimal upkeep.

Applications of S355-J2 MS Beams

  1. Construction: S355-J2 beams are extensively used in the construction of commercial and residential buildings, especially in areas prone to severe weather conditions. Their high strength-to-weight ratio makes them ideal for large-scale constructions that require long-lasting support.
  2. Industrial Projects: In industrial settings, S355-J2 beams are used for frameworks and support structures in factories and processing plants. Their robust nature ensures stability and safety in environments that involve heavy machinery and dynamic loads.
  3. Marine and Offshore Structures: The toughness of S355-J2 beams at low temperatures makes them suitable for marine and offshore applications, such as shipbuilding and oil rig platforms. They provide necessary strength and durability in corrosive saltwater environments.
  4. Renewable Energy Structures: These beams are used in the construction of wind turbine towers and other renewable energy installations. Their resilience is critical in maintaining structural integrity under variable and intense weather conditions.
  5. Transportation: S355-J2 beams are utilized in the construction of heavy load-bearing structures like vehicle chassis, railway tracks, and airport hangars, where strength and endurance are paramount.
  6. Architectural Applications: For architectural projects that require a combination of aesthetic appeal and structural robustness, S355-J2 beams offer an excellent solution. They allow for innovative designs that can endure external pressures without compromising on style.

Why Choose Ferrite’s S355-J2 MS Beams?

Choose Ferrite Structural Steels for top-quality S355-J2 MS Beams that comply with stringent national standards, ensuring superior structural integrity and performance. Our S355-J2 MS Beams are meticulously manufactured to meet your project’s specific requirements, offering unmatched durability and safety. For a personalized quote or to discuss your structural needs with our experts, please contact us. Reach out today and take the first step towards securing reliable and robust structural solutions with Ferrite Structural Steels. Let us help you build a stronger future.

Looking for S355-J2 MS Beams? Order Now
