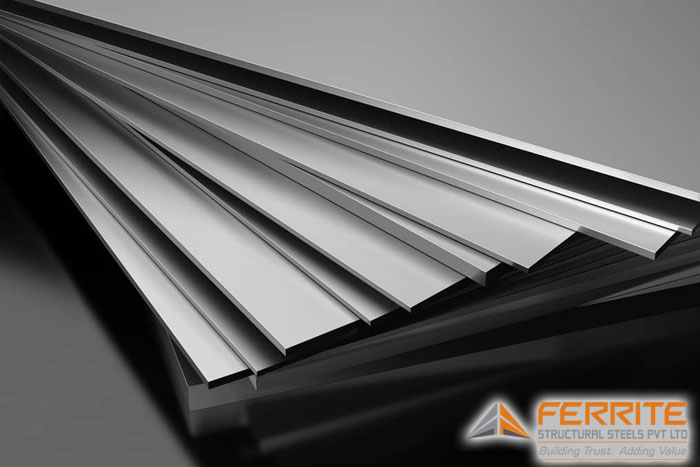

C45 Plates

Buy Top Quality C45 Plate at Ferrite Structural Steels Pvt Ltd. – India’s Leading Supplier, Manufacturer and Exporter of MS Plates.

C45 Plates

C45 plates are widely acclaimed in the steel industry for their high-quality medium carbon steel composition, which delivers superior strength and flexibility. Renowned for their durability and resilience, these plates are a top choice for manufacturing a variety of machinery and automotive parts. The versatility of C45 plates makes them indispensable in industries ranging from manufacturing to aerospace, where they are utilized in applications demanding high tolerance and finesse.

As a prominent figure in the steel sector, Ferrite Structural Steels Pvt Ltd. is recognized as a major manufacturer and supplier of C45 plates. The company is committed to excellence, consistently providing steel products that adhere to the highest standards of quality and performance. With advanced technology and a focus on customer satisfaction, Ferrite Structural Steels Pvt Ltd. ensures that their C45 plates meet the dynamic and rigorous demands of the modern industrial landscape.

C45 Plate Specifications

Product Name C45 Plate
Brand Ferrite Structural Steels Pvt. Ltd.
Minimum Order Quantity 1 Ton
Material Mild Steel
Finish Galvanized, Hot-rolled or Cold-rolled

C45 Plate Size Chart

Plate thickness (mm) Weight (kg/m) kg/meter (width 1200mm) kg/meter (width 1500mm) kg/meter (width 1800mm) kg/meter (width 2400mm)
3 23.55 28.3 35.3 42.4 56.5
4 31.4 37.7 47.1 56.5 75.4
5 39.25 47.1 58.9 70.7 94.2
6 47.1 56.5 70.7 84.8 113
8 62.8 75.4 94.2 113 150.7
10 78.5 94 118 141 188
12 94.2 113 141 170 226
16 125.6 151 188 226 301
20 157 188 236 283 377
22 172.7 207 259 311 415
25 196.25 236 294 353 471
28 219.8 264 330 396 528
32 251.2 301 377 452 603
36 282.6 339 424 509 678
40 314 377 471 565 754
45 353.25 424 530 636 848
50 392.5 471 589 707 942
55 431.75 518 648 777 1036
60 471 565 707 848 1130
65 510 612 765 918 1224
70 549.5 659 824 989 1319
75 588.75 707 883 1060 1413
80 628 754 942 1130 1507
90 706.5 848 1060 1272 1696
100 785 942 1178 1413 1884



C45 Equivalent Grades

BS970: 1955 BS970/PD970:1970 onwards European Werkstoff No. US SAE (AISI)
EN8 080M40 C40, C45, Ck40,Ck45, Cm40, Cm45 1.0511, 1.1186, 1.1189 1039, 1040, 1042, 1043, 1045



C45 Chemical Composition

C Mn P S Si
0.35 TO 0.45 0.60 TO 1.00 0.06 max 0.06 max 0.05 – 0.30



C45 Mechanical Properties

Grade HEAT TREATMENT CORRESPONDING SPECIFICATION
Hardening Temperature Quenching Medium Tempering Temperature Brinell Rock well hardness JAPAN JIS AISI POLDI THREAD
C-45 750-900 OIL 150-200  –  –  –  –

Key Features and Benefits

  1. High Carbon Content: C45 steel contains approximately 0.45% carbon, providing a substantial degree of strength and hardness while maintaining sufficient ductility.
  2. Excellent Machinability: Despite its hardness, C45 plates can be machined and formed with relative ease, which is beneficial for complex component manufacturing.
  3. Good Hardenability: These plates have excellent hardenability, allowing them to achieve uniform hardness in thicker sections during heat treatment.
  4. Superior Tensile Strength: C45 plates are known for their high tensile strength, which makes them ideal for structural and engineering applications that require a high load capacity.
  5. Adaptability to Heat Treatment: The properties of C45 steel can be easily altered through heat treatment, providing versatility in achieving the desired level of hardness and strength.
  6. Cost-Efficiency: With excellent machinability, C45 plates reduce manufacturing time and tool wear, resulting in lower production costs.
  7. Improved Performance: Components made from C45 plates perform well under high mechanical stress and in harsh environments, ensuring reliability and safety in critical applications.
  8. Customization: Ferrite Structural Steels Pvt Ltd. offers customization of C45 plates in various sizes and thicknesses, meeting specific industry needs and standards, thereby enhancing their applicability across diverse sectors.

Applications of C45 Plate

  1. Manufacturing Equipment: C45 plates are commonly used in the production of industrial machinery and tools due to their strength and hardness, which are essential for heavy-duty equipment.
  2. Automotive Components: These plates are ideal for manufacturing critical automotive parts like clutches, gears, and steering components, where high strength and fatigue resistance are paramount.
  3. Engineering Applications: C45 steel is often used in engineering for structural applications, including frames, bases, and supports that require a high strength-to-weight ratio.
  4. Agricultural Machinery: The toughness and resilience of C45 plates make them suitable for parts in agricultural machinery, such as plough beams, gearboxes, and blades.
  5. Oil and Gas Industry: In the oil and gas sector, C45 plates are used to fabricate parts that must endure abrasive conditions, including flanges, valves, and various pipeline components.
  6. Energy Sector: The strength and thermal resistance of C45 make it a good choice for producing parts used in power generation plants, such as turbines and boiler plates.
  7. Construction Hardware: This includes bolts, screws, and nuts, as well as anchor plates and other fittings that benefit from the high tensile strength and ductility of C45 steel.

Why Choose Ferrite’s C45 Plate?

Choosing Ferrite Structural Steels Pvt Ltd. for your C45 Plates ensures you receive products of the highest quality, backed by our dedication to excellence and customer satisfaction. Our C45 Plates are manufactured using advanced processes, ensuring superior strength, durability, and reliability for a wide range of applications. We offer an extensive selection of sizes and thicknesses to meet your specific needs, all at competitive prices. Whether you’re in construction, automotive, shipbuilding, or any other industry, Ferrite’s C45 Plates provide the robust performance and longevity you require. Experience the Ferrite difference today—request a quote and let us provide you with the perfect C45 Plate solution for your project.

Looking for C45 Plates? Order Now
